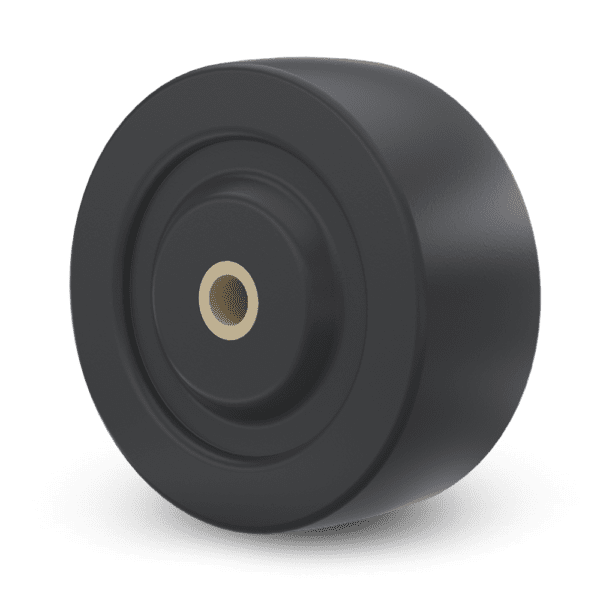

Soft Rubber Wheels

Category: Tag:

These wheels feature a Soft Rubber tread with a hard core for quiet movement, smooth cushioned ride and excellent floor protection.

Download Catalogue Page

Description

These wheels feature a soft rubber tread with a hard core for quiet movement, smooth cushioned ride and excellent floor protection. Soft rubber wheels absorb shock and vibration.

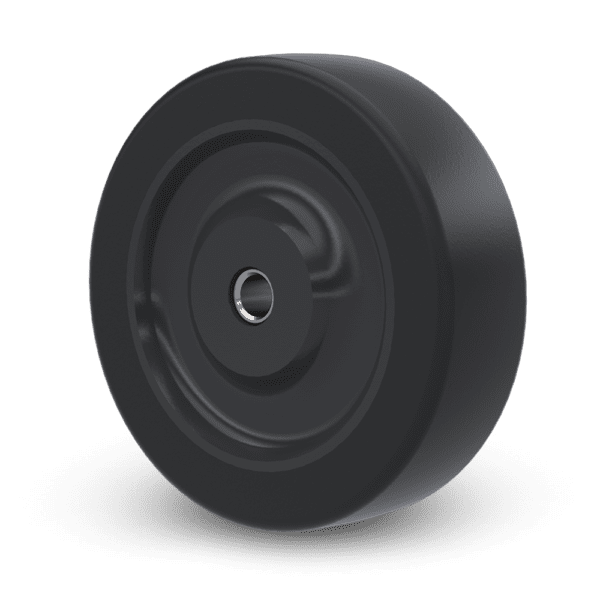

Conductive Soft Rubber: Algood certifies that upon leaving our factory, conductive wheels were tested for conductivity. The wheels were found to have an average electrical resistance from the hub to the tread of less than 250,000 ohms, and a maximum electrical resistance at any point from hub to tread of less than 1,000,000 ohms, which values are specified in Federal Specification FF-C-778, paragraphs 3.5 and 4.3.7 relating to electrical conductivity tests and standards for conductive caster wheels.

Oil can be injurious to compounds and impairs the electrical conductivity of these products, contact with oil should be avoided. Conductive characteristics of the tread compounds may decrease with, among other things, service and contact with lubricants, waxes, polishes and cleaning materials used for floor maintenance. Because Algood has no control over these conditions, no warranties whatsoever are applicable, with respect to the continuing level of conductivity of the product, are made.

Options/Components: Wheels can be made with a large variety of bearings as well as side washers and thread guards.

Ideal Applications: Display Racks, Factories, Hospitals, Hotels, Restaurants, Platform & Stock Trucks.

Additional information

Wheel Diameter
Durometer 80 (+/- 5) A Scale
Temperature -45°F to 160°F
Bushing
Bearings Ball Bearing, Caged Roller Bearing, Delrin Bearing, Nylon Roller Bearing, Roller Bearing, Stainless Steel Nylon Roller Bearing, Stainless Steel Roller Bearing
Colours Black, Grey
Options , ,


Soft Rubber Wheels Specifications & Part Numbers
