Brakes

Where Safety Meets Innovation

Explore our top-quality brakes, crafted to provide reliable and efficient stopping power for various applications. With diverse sizes, materials, load capacities, and finishes to choose from, our brakes are ideal for demanding environments. Find your perfect match below and enjoy exceptional performance and safety.

iLock – Total Lock (iLK)

The iLock Brake is a precise eight position directional and wheel lock that provides perfect security. It engages with absolute precision and is available as a customizable one, two, three or four position lock. Engages with as little as 15 lbs. of pressure and won’t disengage a load with capacity of up to 1,200 lbs. Brake pad adds extra security to harder wheel surfaces. Constructed of non-corrosive proprietary engineered thermos plastic. The iLock is virtually maintenance free.

iLK Brakes are Available in: 0800 Series, 0809 Series, 5400 Series, EMAXX™ Series, EMAXX™9 Series

iLock – Swivel Only (iLKS)

The iLock Brake is a precise eight position directional and wheel lock that provides perfect security. It engages with absolute precision and is available as a customizable one, two, three or four position lock. Engages with as little as 15 lbs. of pressure and won’t disengage a load with capacity of up to 1,200 lbs. Brake pad adds extra security to harder wheel surfaces. Constructed of non-corrosive proprietary engineered thermos plastic. The iLock is virtually maintenance free.

iLKS Brakes are Available in: 5000 Series, 5400 Series, EMAXX™ Series, EMAXX™9 Series

iLock – Wheel Only (iLKW)

The iLock Brake is a precise eight position directional and wheel lock that provides perfect security. It engages with absolute precision and is available as a customizable one, two, three or four position lock. Engages with as little as 15 lbs. of pressure and won’t disengage a load with capacity of up to 1,200 lbs. Brake pad adds extra security to harder wheel surfaces. Constructed of non-corrosive proprietary engineered thermos plastic. The iLock is virtually maintenance free.

iLKW Brakes are Available in: 0800 Series, 5000 Series, 5400 Series, EMAXX™ Series, EMAXX™9 Series, SL6803 Series, 7000 Series, SL7003 Series

iLock – Positional Lock (iLK4 & iLKS4)

The iLock Brake is a precise eight position directional and wheel lock that provides perfect security. It engages with absolute precision and is available as a customizable one, two, three or four position lock. Engages with as little as 15 lbs. of pressure and won’t disengage a load with capacity of up to 1,200 lbs. Brake pad adds extra security to harder wheel surfaces. Constructed of non-corrosive proprietary engineered thermos plastic. The iLock is virtually maintenance free.

iLK4 Brakes are Available in: EMAXX™ Series, EMAXX™9 Series

iLKS4 Brakes are Available in: EMAXX™ Series, EMAXX™9 Series

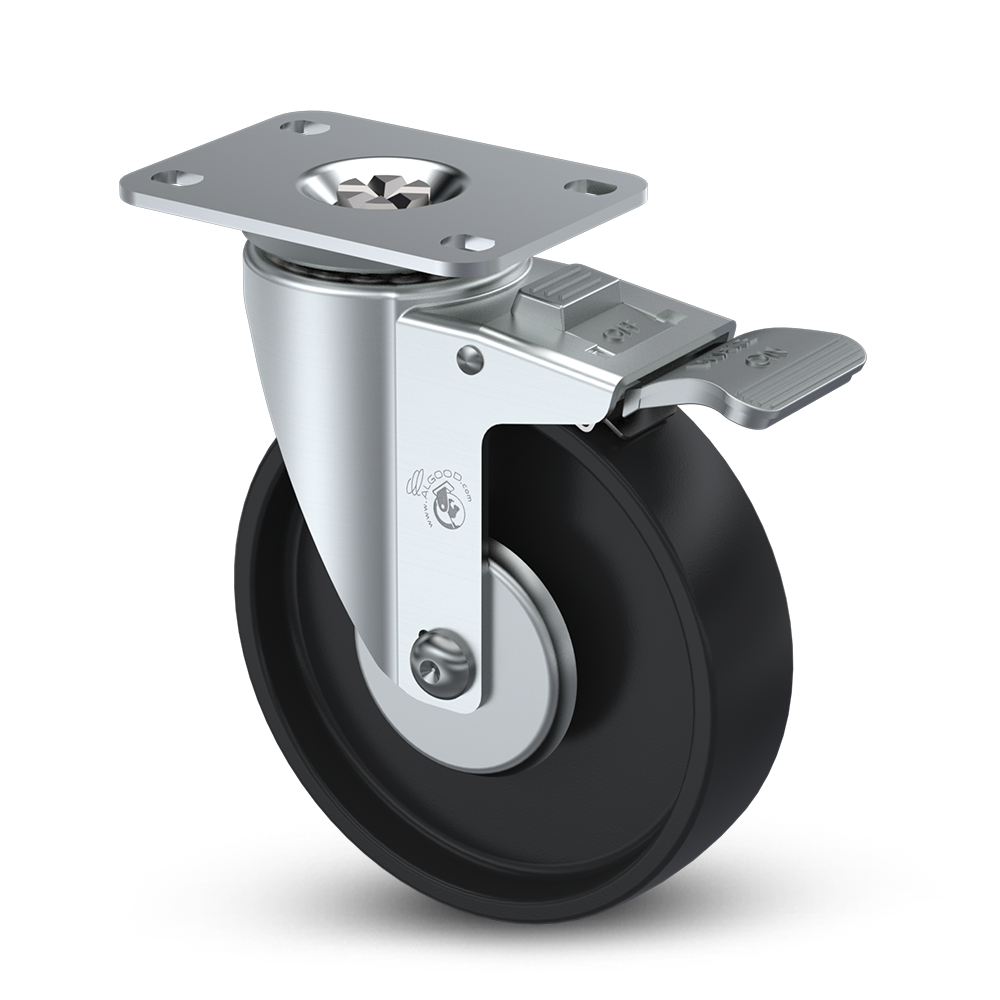

Double Lock Brake – (DLB)

The Double Lock Brake mechanism engages a positive braking action on the tread surface of the wheel, while simultaneously locking the swivel raceway in any position. Plastic pedal resists rust and corrosion in wet environments. The Double Lock Brake is available in stainless-steel.

DLB Brakes are Available in: Wizard Series, Medical Series, 2100 Series, 2309 Series

Side Locking Brake – (SLB)

The Side Locking Brake is the most economical wheel brake. When the SLB is engaged, it compresses the hub of the yoke, creating friction on the hub of the wheel. The larger casters have a large foot pedal that makes engaging the brake easy to operate and provides easy access. The Side Locking Brake is Available in Stainless-Steel.

SLB Brakes are Available in: 0100 Series, 0600 Series, 0800Series, 0900 Series, 1000 Series, 1900 Series, 4000 Series, 6400 Series, 6403 Series, EMAXX™ Series, EMAXX9™ Series, 6800 Series, 6803 Series, 6809 Series, 7000 Series, 7003 Series, 7009 Series, 7900 Series, Tornado™ Series, Tornado9™ Series, Twister Series

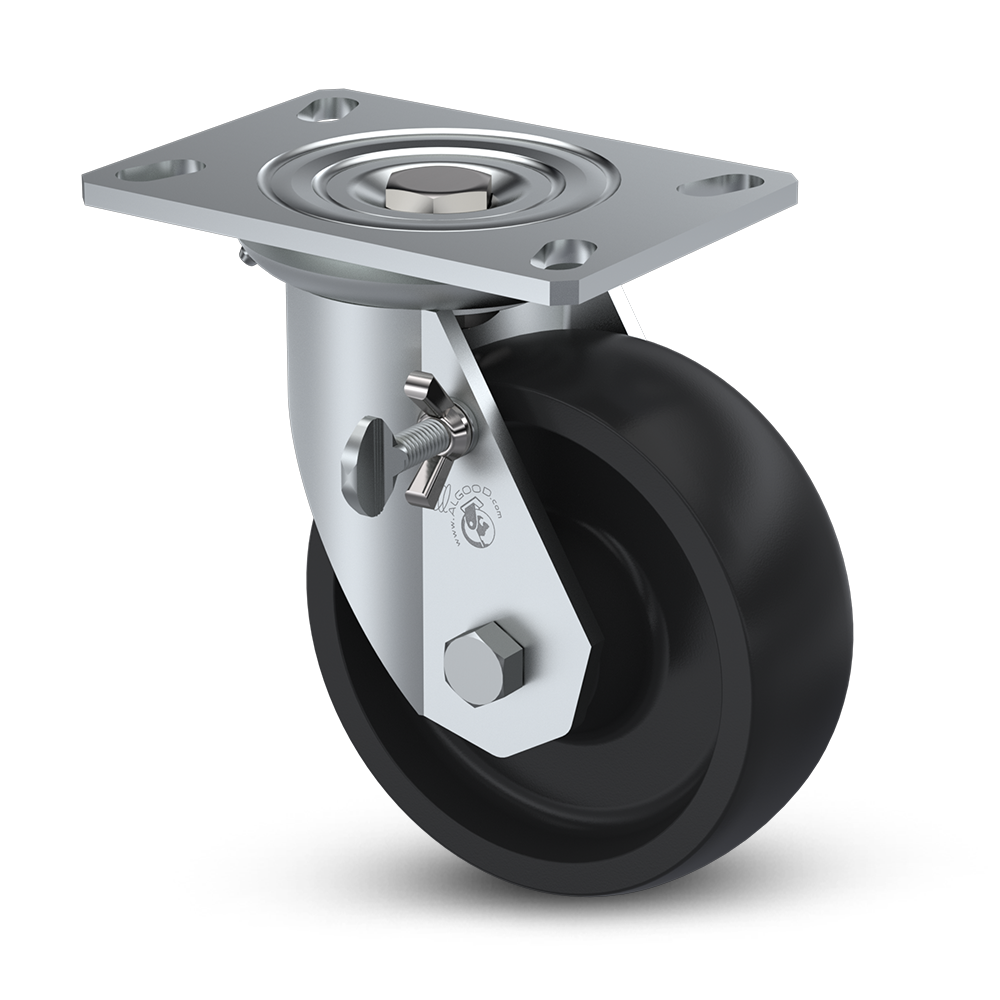

Thumb Screw Brake – (TSB)

The Thumb Screw Brake is engaged manually by turning a rugged screw that engages positively to the wheel hub.

TSB Brakes are Available in: 5400 Series, 6400 Series, 6403 Series, 6800 Series, 6803 Series, 6900 Series, 7000 Series, 7003 Series, 7100 Series, 7200 Series, 7500 Series, 8000 Series, Tornado™ Series, Twister Series, Typhoon™ Series, Typhoon™9 Series, Twin Track™ Series, Monsoon™ Series, Cyclone™ Series, BMF Series

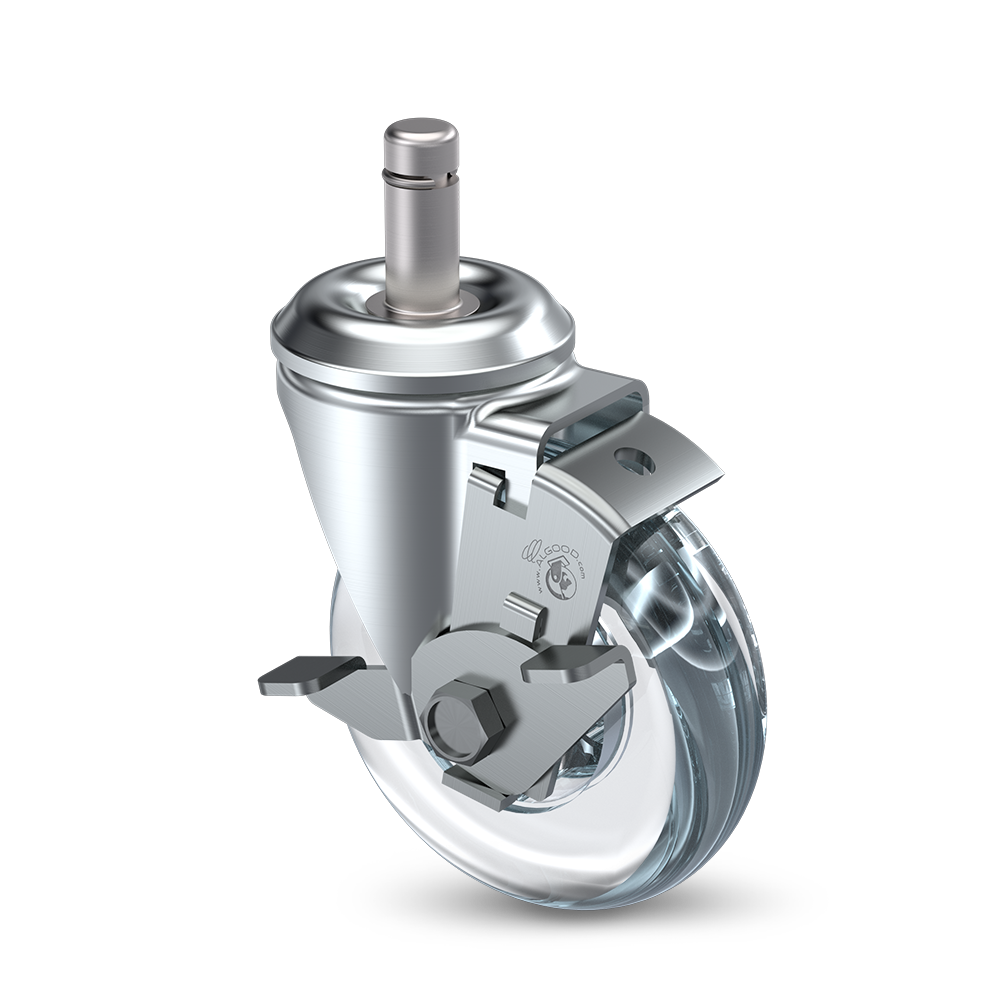

Top Locking Brake – (TLB)

The Top Locking Brake creates a positive braking action on the surface of the wheel. TLB1 comes with an actuator that is coated with a polyurethane coating and gives a greater positive lock on the surface of the wheel. TLB2 has a larger foot pedal making the brake easier to engage and disengage and provides better foot placement.

TLB Brakes are Available in: 0800 Series, 0900 Series, 1000 Series, 1900 Series, 1900C Series, 4000 Series, 5000 Series, 5200 Series, 5300 Series, 5400 Series, 6400 Series, 6403 Series, 6800 Series, 6803 Series, 7000 Series, 7003 Series

Top Locking Brake – (TLB1)

The Top Locking Brake creates a positive braking action on the surface of the wheel. TLB1 comes with an actuator that is coated with a polyurethane coating and gives a greater positive lock on the surface of the wheel.

TLB1 Brakes are Available in: 6400 Series, 6403 Series, EMAXX™ Series, 6800 Series, 6803 Series, 7000 Series, 7003 Series

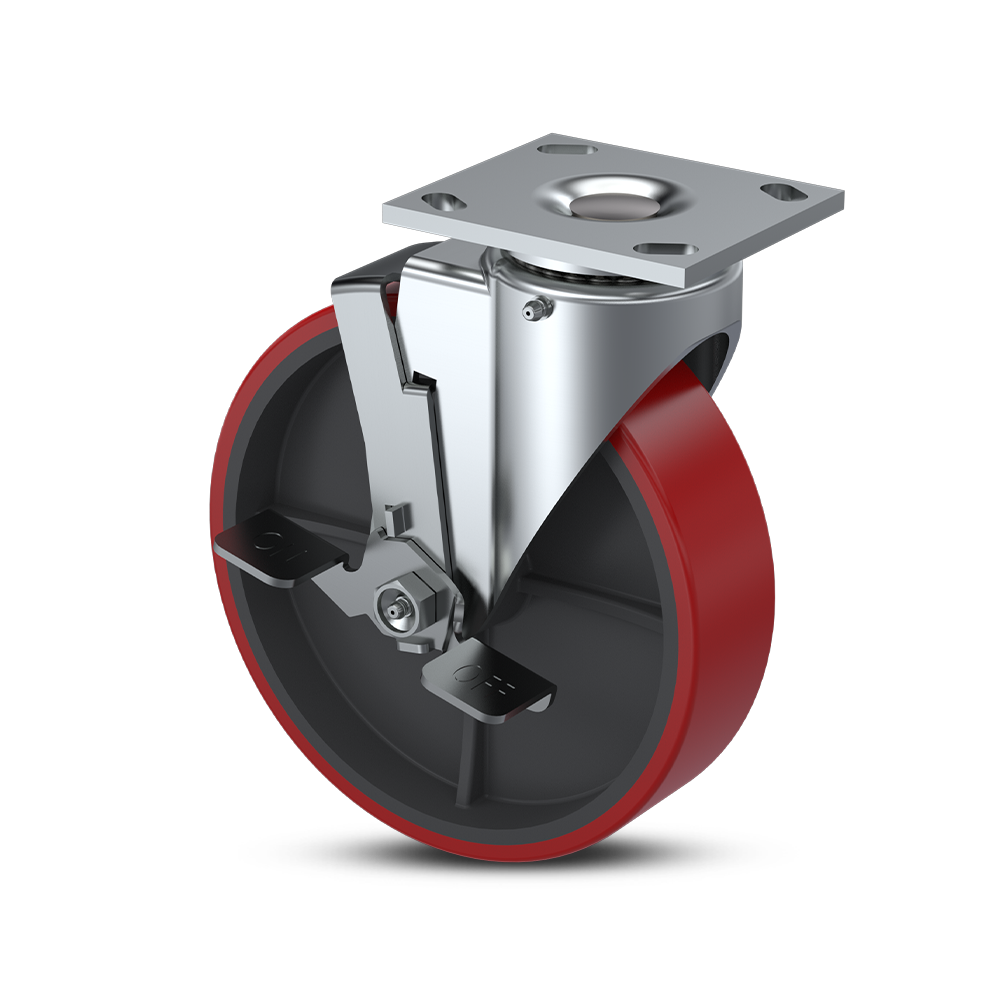

Top Locking Brake – (TLB2)

The Top Locking Brake creates a positive braking action on the surface of the wheel. TLB2 has a larger foot pedal making the brake easier to engage and disengage and provides better foot placement.

TLB2 Brakes are Available in: 6403 Series, EMAXX™ Series, 6803 Series, 7003 Series

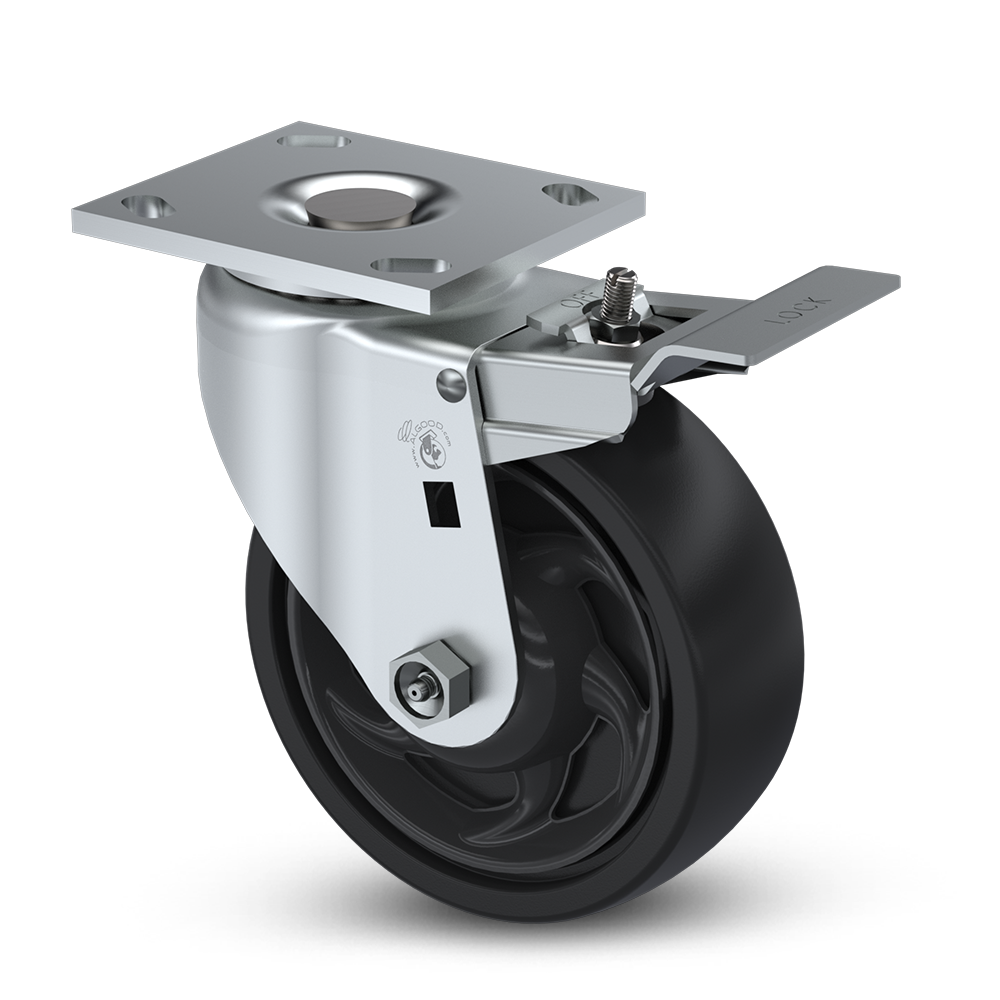

ALock Brake – (ALK) (ASK) (AWL)

The A Lock Brake mechanism is engaged by stepping on the toe that securely and positively locks an adjustable rubber grommet to the tread of the wheel and simultaneously locks the swivel raceway in any position.

The ALK Brake has a metal construction that will stand up to industrial abuse and is conveniently located in the lead position. The ASK Brake mechanism is engaged by stepping on the toe that securely and positively locks the swivel raceway in any position. The AWL Brake mechanism is engaged by stepping on the toe that securely and positively locks an adjustable rubber grommet to the tread of the wheel.

ALK Brakes are Available in: EMAXX™ Series

Pedal Wheel Brake – (PWB)

The Pedal Wheel Brake mechanism engages a positive braking action on the tread surface of the wheel. Plastic pedal resists and corrosion in wet environments. The Pedal Wheel Bear is available in stainless steel.

PWB Brakes are Available in: 1900 Series, 5200 Series

PolyCam Brake – (PCB)

The PolyCam Brake is a crucial braking mechanism utilized in heavy-duty casters. This brake features a polyurethane cam that applies pressure against the wheel, resulting in friction and halting the caster's movement. Its importance lies in ensuring the safety, stability, and control of various applications by reliably immobilizing the caster, preventing undesired rolling or movement. Trust this dependable brake for enhanced operational security.

PCB Brakes are Available in: 7500 Series, Typhoon™ Series, Typhoon™9 Series, Twin Track™ Series, Monsoon™ Series, Cyclone™ Series

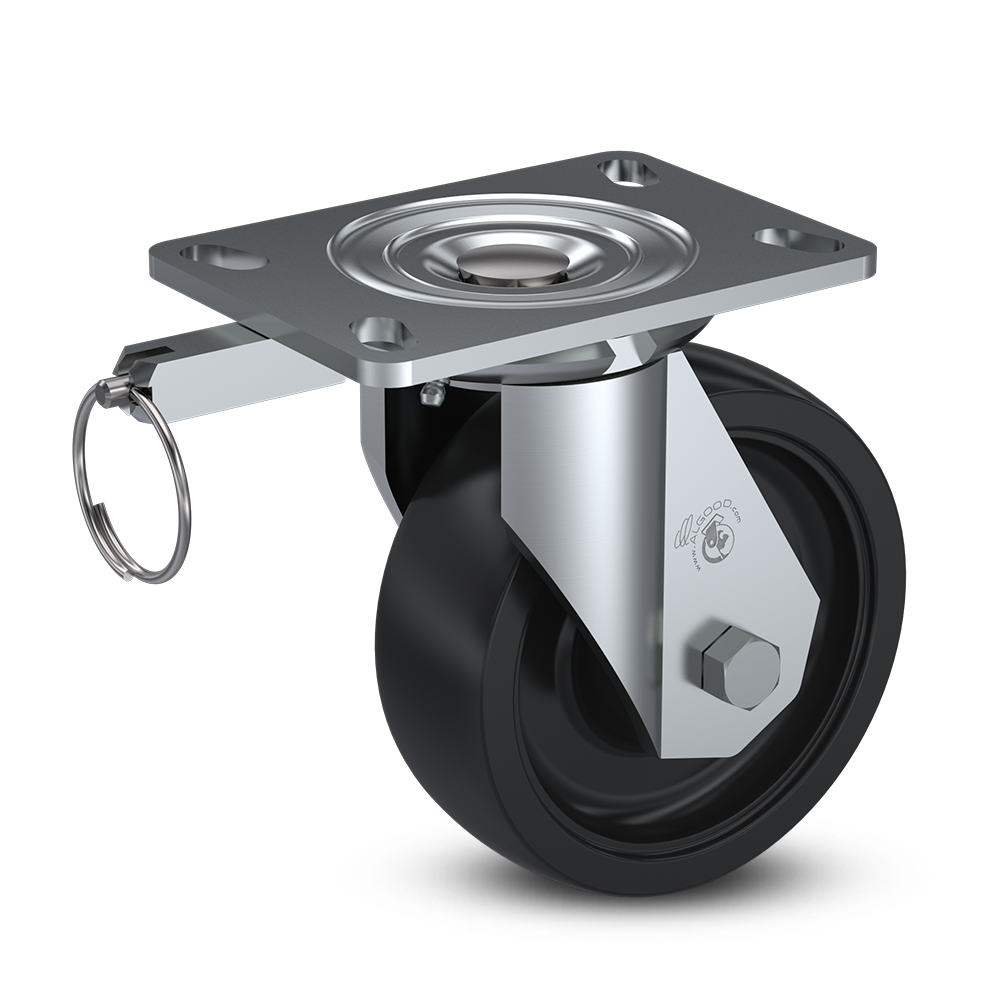

1 Position Swivel Lock – (1PSL)

2 Position Swivel Lock – (2PSL)

3 Position Swivel Lock – (3PSL)

4 Position Swivel Lock – (4PSL)

The Position Swivel Lock converts a swivel caster to rigid. PSL can be disengaged to neutral position to allow for free swiveling action. The spring-loaded plunger is hand operated to fit into slots in the swivel raceway. PSL can be purchased pre-welded to a top plate or with wings that secure the PSL to the plate when mounting bolts to the top plate.

4PSL Brakes are Available in: Wizard Series, 6403 Series, 6800 Series, 6803 Series, 6809 Series, SL6803 Series, Textile Series, 7000 Series, 7003 Series, 7009 Series, SL7003 Series, 7100 Series, Tornado™ Series, Tornado™9 Series, Twister Series, Zero Gravity Series, Typhoon™ Series, Typhoon™9 Series, Twin Track™ Series, Monsoon™ Series, Cyclone™ Series, BMF Series

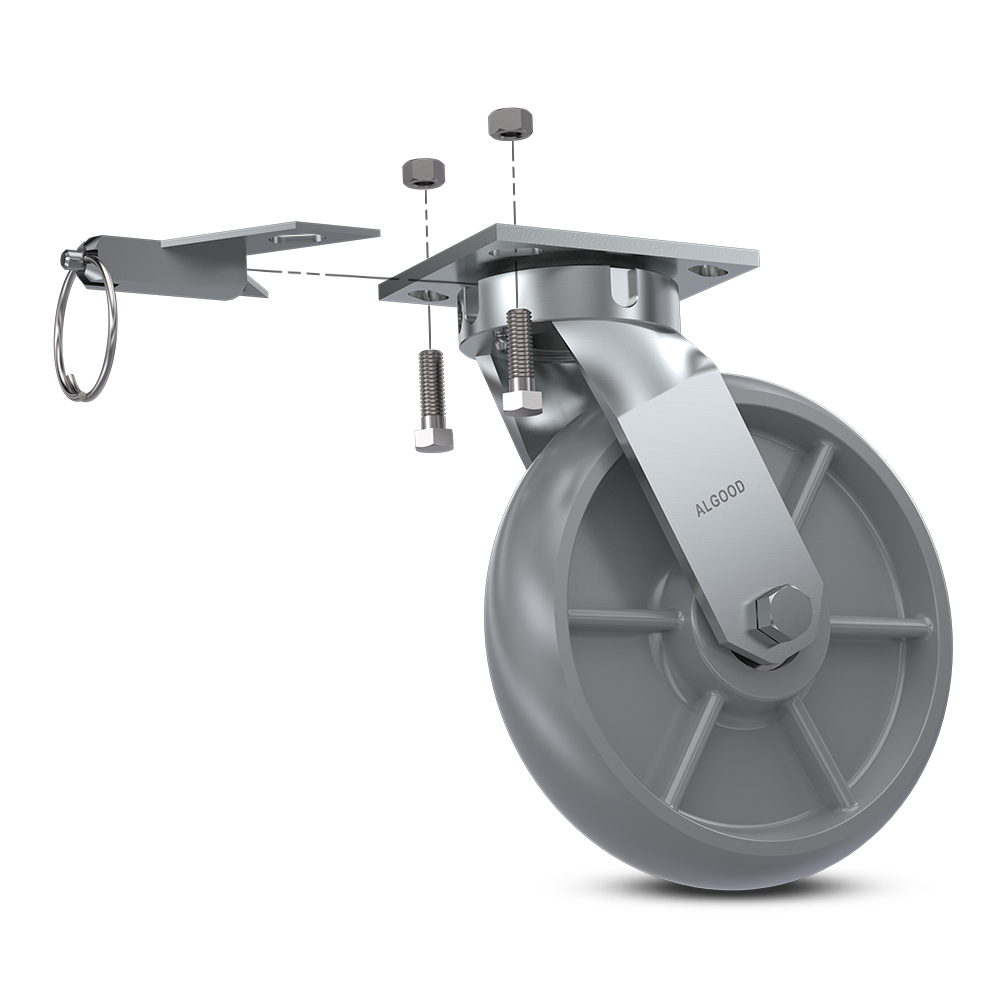

4 Position Swivel Lock with Demountable Wings – (4PSLN)

Universal Wheel Brake – (UWB)

The Universal Wheel Brake is a positive lock brake pre-welded to the fork of caster. UWB can be customized for angle of operation and for either forward or reverse movement. Fully adjustable including brake force and the location of the breaking point on the wheel. The UWB is very easy to engage and disengage, requiring as little as 15 lbs. of pressure.

UWB Brakes are Available in: 6800 Series, 6803 Series, SL6803 Series, 6900 Series, 7000 Series, 7003 Series, 7009 Series, SL7003 Series, 7100 Series, 7200 Series, 7500 Series, Tornado Series, Twister Series, Zero Gravity Series, Typhoon Series, Twin Track Series, Monsoon Series, Cyclone Series, BMF Series
