Phenolic Wheels

Description

Made of macerated canvas impregnated with phenolic resin, the Phenolic wheel is non-marking and provides high floor protection.

These wheels are very light and maintain a high load rating. They provide quieter operation than steel or aluminum, offer easy rolling, superior floor protection, and resist hard impacts, grease, oil and most chemicals and steam.

Options/Components: Options include a wide range of bearings.

Ideal Applications: Factory Use, Platform and Stock Trucks, Heavy Material Handling & Waste Bins.

Additional information

Wheel Diameter	3" - 16"
Durometer	102 Rockwell E
Temperature	-50°F to 180°F
Bearings	Ball Bearing, Caged Roller Bearing, Delrin Bearing, Nylon Bearing, Plain, Roller Bearing, Tapered Bearing
Colours	Black, Brown (High Temp.)
Options	Heat-Treated Side Washer, Steel Side Washer, Thread Guards, Zerk in Wheel

Diameter	Tread Width	Capacity (lbs)	Hub Length	Standard Bore	Alternative Bore	Bearing Type	Part Number	Wheel Weight (lbs)
3	1.25	200	1.375	0.313	3/8"* 1/2"	Steel	W-1930-HTPH	0.86
3	1.25	400	1.375	0.313	3/8"* 1/2"	Steel	W-1930-PH	0.75
3	1.50	500	1.625	1.188	–	Plain	W-5003-PH	0.50
3	1.50	500	1.625	0.375	5/16"* 1/2"* 5/8"* 3/4"	Roller	W-5003-PH-RB	0.82
3	1.50	600	1.625	1.188	–	Plain	W-6203-PH	0.53
3	1.50	600	1.813	0.500	3/8"* 5/8"* 3/4"	Roller	W-6203-PH-RB	0.83
3	2.00	700	2.188	1.188	–	Plain	W-7003-PH	0.72
3	2.00	700	2.188	0.500	5/8"* 3/4"	Roller	W-7003-PH-RB	1.16
4	1.25	250	1.375	0.313	3/8"* 1/2"	Steel	W-1940-HTPH	1.29
4	1.25	400	1.375	0.313	3/8"* 1/2"	Steel	W-1940-PH	1.08
4	1.50	400	1.625	0.375	1/2"	Steel	W-4004-HTPH	0.94
4	1.50	400	1.625	1.188	–	Plain	W-6204-HTPH	0.91
4	1.50	400	1.813	0.500	3/8"* 5/8"* 3/4"	Roller	W-6204-HTPH-RB	1.31
4	1.50	600	1.625	0.375	1/2"	Steel	W-4004-PH	0.73
4	1.50	600	1.625	1.188	–	Plain	W-6204-PH	0.70
4	1.50	600	1.813	0.500	5/16"* 1/2"* 5/8"* 3/4"	Roller	W-6204-PH-RB	1.00
4	2.00	600	2.188	1.188	–	Plain	W-7004-HTPH	1.31
4	2.00	600	2.375	0.500	3/8"* 5/8"* 3/4"	Roller	W-7004-HTPH-RB	1.85
4	2.00	800	2.188	1.188	–	Plain	W-7004-PH	1.01
4	2.00	800	2.375	0.500	3/8"* 5/8"* 3/4"	Roller	W-7004-PH-RB	1.45
5	1.25	300	1.375	0.313	3/8"* 1/2"	Steel	W-1950-HTPH	1.89
5	1.25	400	1.375	0.313	3/8"* 1/2"	Steel	W-1950-PH	1.54
5	1.50	400	1.625	1.188	–	Plain	W-6205-HTPH	1.05
5	1.50	400	1.813	0.500	3/8"* 5/8"* 3/4"	Roller	W-6205-HTPH-RB	1.45
5	1.50	600	1.625	1.188	–	Plain	W-6205-PH	1.10
5	1.50	600	1.813	0.500	5/16 1/2 5/8 3/4	Roller	W-6205-PH-RB	1.40
5	2.00	750	2.188	1.188	–	Plain	W-7005-HTPH	1.50
5	2.00	750	2.375	0.500	3/8"* 5/8"* 3/4"	Roller	W-7005-HTPH-RB	2.04
5	2.00	1,000	2.188	1.188	–	Plain	W-7005-PH	1.50
5	2.00	1,000	2.375	0.500	3/8"* 5/8"* 3/4"	Roller	W-7005-PH-RB	1.94
6	1.50	500	1.625	1.188	–	Plain	W-6206-HTPH	1.90
6	1.50	500	1.813	0.500	3/8"* 5/8"* 3/4"	Roller	W-6206-HTPH-RB	2.30
6	1.50	800	1.625	1.188	–	Plain	W-6206-PH	1.36
6	1.50	800	1.813	0.500	3/8"* 5/8"* 3/4"	Roller	W-6206-PH-RB	1.66

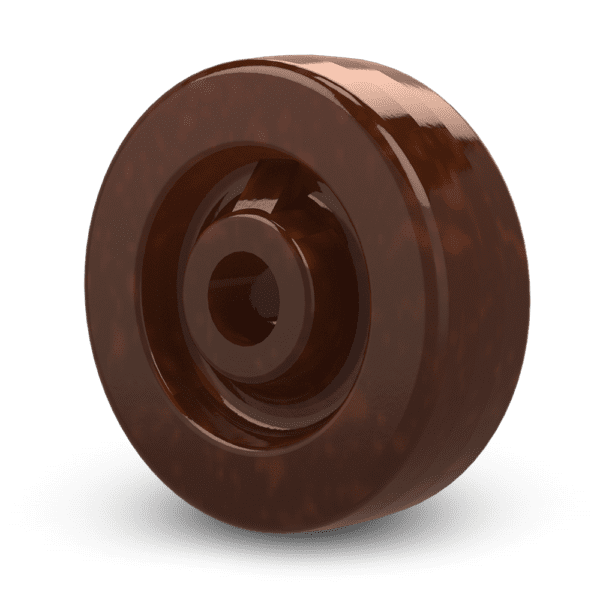

6	2.00	900	2.188	1.188	–	Plain	W-7006-HTPH	2.30
6	2.00	900	2.375	0.500	3/8"* 5/8"* 3/4"	Roller	W-7006-HTPH-RB	2.84

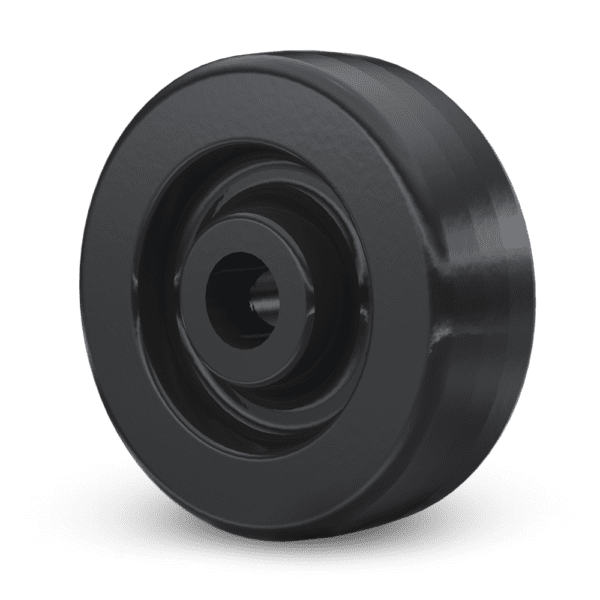

6	2.00	1,200	2.188	1.188	–	Plain	W-7006-PH	2.30
6	2.00	1,200	2.375	0.500	3/8"* 5/8"* 3/4"	Roller	W-7006-PH-RB	2.74

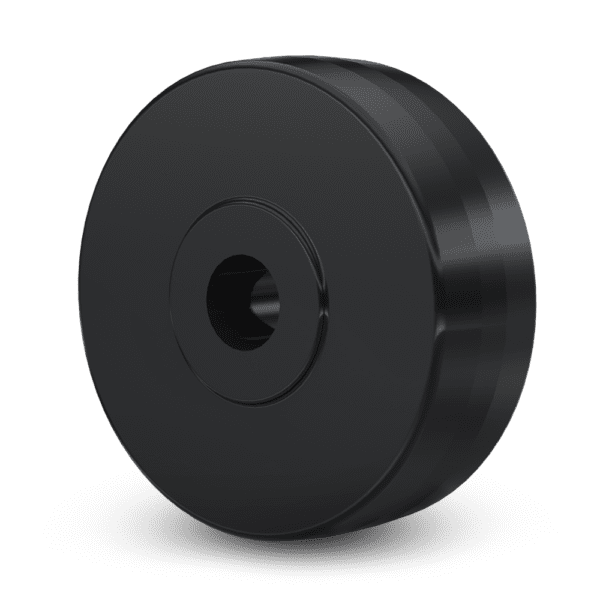

6	2.00	1,500	2.188	1.188	–	Plain	W-7006-PHSS	2.76
6	2.00	1,500	2.375	0.500	5/8"* 3/4"	Roller	W-7006-PHSS-RB	3.20
6	2.50	1,600	2.750	1.938	–	Plain	W-7106-PH	3.30
6	2.50	1,600	2.844	0.750	1"* 1 1/4"	Roller	W-7106-PH-RB	4.95
6	3.00	2,000	3.250	1.938	–	Plain	W-7506-PH	4.40
6	3.00	2,000	3.438	0.750	1"* 1 1/4"	Roller	W-7506-PH-RB	6.29
8	2.00	1,100	2.188	1.188	–	Plain	W-7008-HTPH	3.60
8	2.00	1,100	2.375	0.500	5/8"* 3/4"	Roller	W-7008-HTPH-RB	4.14
8	2.00	1,400	2.188	1.188	–	Plain	W-7008-PH	3.60
8	2.00	1,400	2.375	0.500	5/8"* 3/4"	Roller	W-7008-PH-RB	4.04
8	2.50	2,000	2.750	1.938	–	Plain	W-7108-PH	5.27
8	2.50	2,000	2.844	0.750	1"* 1 1/4"	Roller	W-7108-PH-RB	6.92
8	3.00	2,500	3.250	1.938	–	Plain	W-7508-PH	5.90
8	3.00	2,500	3.438	0.750	1"* 1 1/4"	Roller	W-7508-PH-RB	7.79
10	2.50	2,500	2.750	1.938	–	Plain	W-7110-PH	6.80
10	2.50	2,500	2.844	0.750	1"* 1 1/4"	Roller	W-7110-PH-RB	8.45
10	3.00	2,900	3.250	1.938	–	Plain	W-7510-PH	8.60
10	3.00	2,900	3.438	0.750	1"* 1 1/4"	Roller	W-7510-PH-RB	10.49
12	2.50	3,000	2.750	1.938	–	Plain	W-7112-PH	10.72
12	2.50	3,000	2.844	0.750	1"* 1 1/4"	Roller	W-7112-PH-RB	12.37
12	3.00	3,500	3.250	1.938	–	Plain	W-7512-PH	11.60
12	3.00	3,500	3.438	0.750	1"* 1 1/4"	Roller	W-7512-PH-RB	13.59
16	3.00	4,000	4.250	2.438	–	Plain	W-7516-PH	23.10
16	3.00	4,000	4.250	0.750	1"* 1 1/4"	Roller	W-7516-PH-RB	26.74
