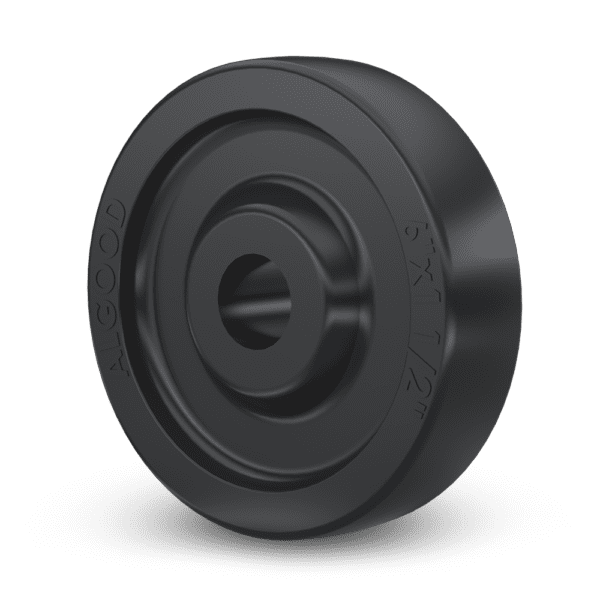

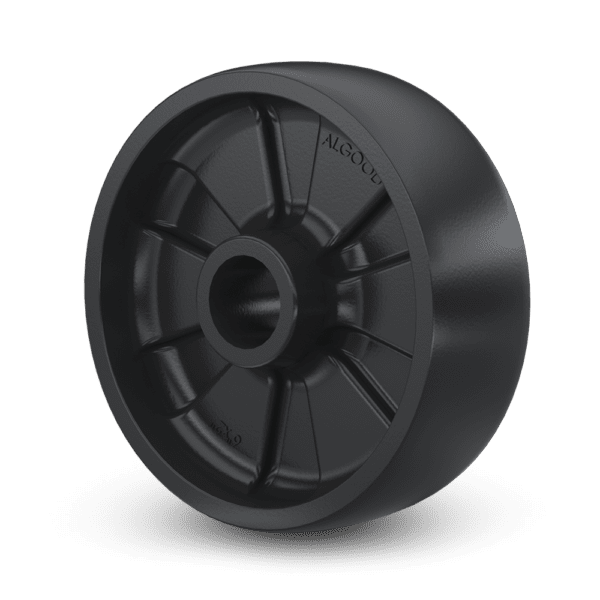

Polyolefin Wheels

Description

Our Polyolefin wheels are lightweight, long-lasting, look great and are budget-friendly. They are non-marking, non-chipping, resistant to oil and chemicals, and moisture friendly. That makes them steam-cleanable and virtually maintenance-free. On top of all that, they are 100% recyclable and therefore an exceptional environmental choice.

Options/Components: Available in both ribbed and ribless designs. Options include a wide range of bearings.

Ideal Applications: Factory Use, Healthcare Industry, Pharmaceutical, Platform Trucks, Technology & Food Preparation Environments.

Additional information

Wheel Diameter	1 5/8" - 8"
Durometer	67.5 (+/- 2.5) D Scale
Temperature	-20°F to 180°F
Bearings	Caged Roller Bearing, Delrin Bearing, Nylon Bearing, Plain, Steel Roller Bearing
Colours	Black

Diameter	Tread Width	Capacity (lbs)	Hub Length	Standard Bore	Alternative Bore	Bearing Type	Part Number	Wheel Weight (lbs)
1.625	0.688	50	0.750	0.188	1/4"* 5/16"	Plain	W-0160-PO	0.03
1.750	Ball	75	1.625	0.250	–	Plain	W-0600-PO	0.12
2.000	0.469	25	45,185.000	0.188	–	Plain	W-0200-PO	0.03
2.000	Ball	75	1.844	0.250	–	Plain	W-0650-PO	0.12
2.000	0.875	125	1.000	0.250	–	Plain	W-0800-PO	0.05
2.500	0.875	125	1.000	0.250	3/8"	Plain	W-0820-PO	0.11
2.500	1.125	200	1.375	0.313	3/8"* 1/2"	Plain	W-4025-PO	0.13
2.625	1.500	350	1.563	12.000	–	Roller	W-54260-PO-RB	0.31
3.000	0.875	150	1.000	0.250	3/8 5/16 1/2	Plain	W-0830-PO	0.15
3.000	1.250	300	1.375	0.313	3/8"* 1/2"	Plain	W-1030-PO	0.18
3.000	1.250	300	1.563	0.313	–	Plain	W-1930-PO	0.18
3.000	1.250	300	1.563	0.375	1/2"	Plain	W-4003-PO	0.18
3.000	1.375	250	1.563	0.375	–	Plain	W-4003-POHD	0.28
3.000	1.500	400	1.625	0.375	5/16"	Steel	W-6203-PO	0.35
3.000	1.500	400	1.625	1.188	1/2"* 5/8"	Plain	W-6203-PO	0.27
3.000	1.500	400	1.813	0.500	3/8"* 5/8"* 3/4"	Roller	W-6203-PO-RB	0.57
4.000	1.000	300	1.188	0.313	3/8"* 1/2"	Plain	W-1040-PO	0.22
4.000	1.500	325	1.563	0.313	3/8"* 1/2"8 5/8"	Steel	W-1940-PO	0.33
4.000	1.500	400	1.688	0.375	1/2"	Plain	W-5004-PO	0.27
4.000	1.500	400	1.625	1.188	–	Plain	W-6204-PO	0.35
4.000	1.500	400	1.813	0.500	3/8"* 5/8"* 3/4"	Roller	W-6204-PO-RB	0.65
4.000	2.000	550	2.188	1.188	3/4"	Plain	W-7004-POX	0.42
4.000	2.000	550	2.375	0.500	3/8"* 5/8"* 3/4"	Roller	W-7004-POX-RB	0.86
5.000	1.000	230	1.813	0.313	3/8"* 1/2"	Plain	W-1050-PO	0.29
5.000	1.250	350	1.375	0.313	3/8"* 1/2"	Plain	W-1950-PO	0.45
5.000	1.500	275	1.563	0.375	5/16"* 1/2"	Plain	W-5005-PO	0.53
5.000	1.500	450	1.625	1.188	–	Plain	W-6205-PO	0.49
5.000	1.500	450	1.813	0.500	3/8"* 5/8"* 3/4"	Roller	W-6205-PO-RB	0.79
5.000	2.000	375	2.250	0.375	1/2"	Plain	W-5305-PO	0.52
5.000	2.000	650	2.188	1.188	3/4"	Plain	W-7005-POX	0.55
5.000	2.000	650	2.375	0.500	3/8"* 5/8"* 3/4"	Roller	W-7005-POX-RB	0.99
6.000	1.500	550	1.625	1.188	–	Plain	W-6206-PO	0.89
6.000	1.500	550	1.813	0.500	3/8"* 5/8"* 3/4"	Roller	W-6206-PO-RB	1.28
6.000	2.000	800	2.188	1.188	3/8"	Plain	W-7006-POX	0.71
6.000	2.000	800	2.375	0.500	3/8"* 5/8"* 3/4"	Roller	W-7006-POX-RB	1.15
8.000	2.000	900	2.188	1.188	3/4"	Plain	W-7008-POX	1.15
8.000	2.000	900	2.375	0.500	5/8 3/4	Roller	W-7008-POX-RB	1.59
