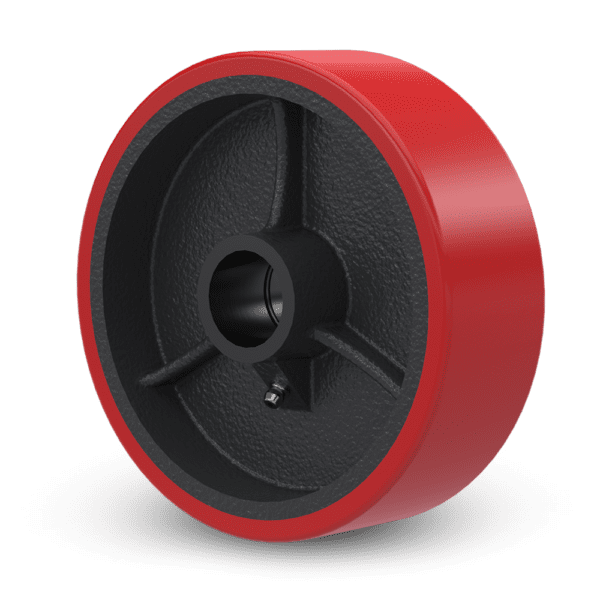

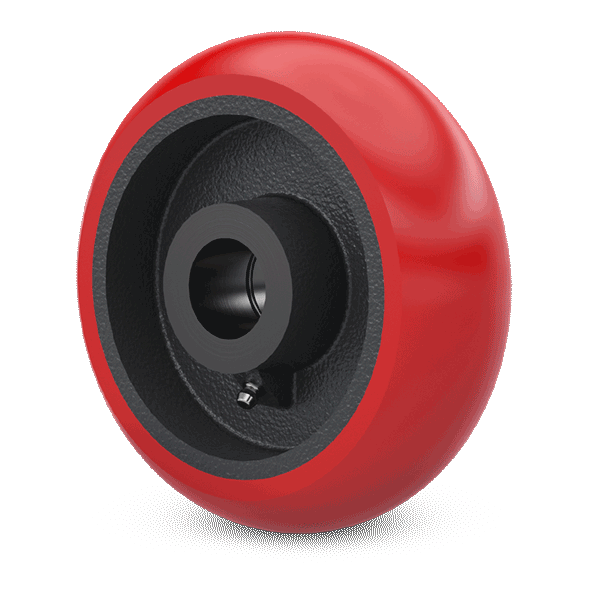

Moldon Urethane Wheels

Description

These wheels feature a urethane tread secured to a cast iron core. Moldon Urethane wheels provide excellent floor protection while carrying extremely heavy loads.

Moldon Urethane Wheels offer excellent floor protection while providing an easy, smooth, quiet ride. The tread is resistant to most chemicals resulting in outstanding longevity.

Options/Components: Available with a wide assortment of bearings

Ideal Applications: Abusive Applications, Factory Use, Platform & Stock Trucks, Heavy Material Handling, Moist & Wet Environments.

Additional information

Wheel Diameter	4" - 12"
Durometer	93.5 (+/-1.5) A Scale
Temperature	-20°F to 175°F
Bearings	Ball Bearing, Bronze Bearing, Caged Roller Bearing, Delrin Bearing, Nylon Bearing, Plain, Roller Bearing, Stainless Steel Nylon Roller Bearing, Stainless Steel Roller Bearing, Tapered Bearing
Colours	Black Core with Red Tread, Black Core with Orange Rust Tread

Diameter	Tread Width	Capacity (lbs)	Hub Length	Standard Bore	Alternative Bore	Bearing Type	Part Number	Wheel Weight (lbs)
4	1.50	600	1.625	1.188	–	Plain	W-6204-UR	1.66
4	1.50	600	1.813	0.500	3/8" 5/8" 3/4"	Roller	W-6204-UR-RB	1.96
4	2.00	800	2.188	1.188	–	Plain	W-7004-UR	2.30
4	2.00	800	2.375	0.500	3/8" 5/8" 3/4"	Roller	W-7004-UR-RB	2.74
4	2.00	800	2.188	0.188	–	Plain	W-7004-URC	2.42
4	2.00	800	2.375	0.500	3/8" 5/8" 3/4"	Roller	W-7004-URC-RB	2.86
5	1.50	800	1.625	1.188	–	Plain	W-6205-UR	2.68
5	1.50	800	1.813	0.500	3/8" 5/8" 3/4"	Roller	W-6205-UR-RB	2.98
5	2.00	1,200	2.188	1.188	–	Plain	W-7005-UR	3.34
5	2.00	1,200	2.375	0.500	3/8" 5/8" 3/4"	Roller	W-7005-UR-RB	3.78
5	2.00	1,200	2.188	1.188	–	Plain	W-7005-URC	2.64
5	2.00	1,200	2.375	0.500	3/8" 5/8" 3/4"	Roller	W-7005-URC-RB	3.08
6	1.50	800	1.625	1.188	–	Plain	W-6206-UR	3.16
6	1.50	800	1.813	0.500	3/8" 5/8" 3/4"	Roller	W-6206-UR-RB	3.46
6	2.00	1,250	2.188	1.188	–	Plain	W-7006-UR	4.16
6	2.00	1,250	2.375	0.500	3/8" 5/8" 3/4"	Roller	W-7006-UR-RB	4.60
6	2.00	1,250	2.188	1.188	–	Plain	W-7006-URC	3.57
6	2.00	1,250	2.375	0.500	3/8" 5/8" 3/4"	Roller	W-7006-URC-RB	4.01
6	2.50	1,600	2.750	1.938	–	Plain	W-7106-UR	6.32
6	2.50	1,600	2.844	0.750	1" 1 1/4"	Roller	W-7106-UR-RB	7.97
6	3.00	2,000	3.250	1.938	–	Plain	W-7506-UR	7.90
6	3.00	2,000	3.438	0.750	1" 1 1/4"	Roller	W-7506-UR-RB	9.79
6	3.00	2,000	3.250	0.750	1" 1 1/4"	Tapered	W-9106-UR-TB *	11.22
6	3.00	3,000	3.500	1.250	3/4 1	Tapered	W-9106-URH-TB*	9.50
6	4.00	3,000	4.250	2.438	–	Plain	W-9664-URR*	17.00
6	4.00	3,000	4.250	1.250	1" 1 1/2"	Roller	W-9664-URR-RB*	17.00
6	4.00	3,000	4.500	1.250	1"	Tapered	W-9664-URR-TB*	17.00
6	4.00	3,600	4.250	2.438	–	Plain	W-9664-URH*	17.00
6	4.00	3,600	4.250	1.250	1" 1 1/2"	Roller	W-9664-URH-RB*	17.00
6	4.00	3,600	4.500	1.250	1"	Tapered	W-9664-URH-TB*	17.00
8	2.00	1,500	2.188	1.188	–	Plain	W-7008-UR	6.20
8	2.00	1,500	2.375	0.500	3/8" 5/8" 3/4"	Roller	W-7008-UR-RB	6.64
8	2.00	1,500	2.188	1.188	–	Plain	W-7008-URC	5.76
8	2.00	1,500	2.375	0.500	3/8" 5/8" 3/4"	Roller	W-7008-URC-RB	6.20
8	2.50	2,000	2.750	1.938	–	Plain	W-7108-UR	11.22
8	2.50	2,000	2.844	0.750	1" 1 1/4"	Roller	W-7108-UR-RB	12.87
8	3.00	2,500	3.250	1.938	–	Plain	W-7508-UR	12.34
8	3.00	2,500	3.438	0.750	1" 1 1/4"	Roller	W-7508-UR-RB	14.23
8	3.00	2,500	3.250	0.750	1" 1 1/4"	Tapered	W-9108-UR-TB*	17.70
8	3.00	3,700	3.500	1.250	3/4" 1"	Tapered	W-9108-URH-TB *	17.00
8	4.00	3,800	4.250	2.438	–	Plain	W-9684-URR	20.00
8	4.00	3,800	4.250	1.250	1 1/2"	Roller	W-9684-URR-RB	20.00
8	4.00	3,800	4.500	1.250	1"	Tapered	W-9684-URR-TB	20.00
8	4.00	4,500	4.250	2.438	–	Plain	W-9684-URH	20.00
8	4.00	4,500	4.250	1.250	1" 1 1/2"	Roller	W-9684-URH-RB	20.00
8	4.00	4,500	4.500	1.250	1"	Tapered	W-9684-URH-TB	20.00
10	2.50	2,200	2.750	1.938	–	Plain	W-7110-UR	14.02
10	2.50	2,200	2.844	0.750	1" 1 1/4"	Roller	W-7110-UR-RB	15.67
10	3.00	3,000	3.250	1.938	–	Plain	W-7510-UR	16.64
10	3.00	3,000	3.438	0.750	1" 1 1/4"	Roller	W-7510-UR-RB	18.53
10	3.00	3,000	3.250	0.750	1" 1 1/4"	Tapered	W-9110-UR-TB*	23.46
10	3.00	4,400	3.500	1.250	3/4" 1"	Tapered	W-9110-URH-TB*	24.00
10	4.00	5,000	4.250	2.438	–	Plain	W-96104-URR*	33.00
10	4.00	5,000	4.250	1.250	1" 1 1/2"	Roller	W-96104-URR-RB*	33.00
10	4.00	5,000	4.500	1.250	1"	Tapered	W-96104-URR-TB*	33.00
10	4.00	6,000	4.250	2.438	–	Plain	W-96104-URH*	33.00
10	4.00	6,000	4.250	1.250	1" 1 1/2"	Roller	W-96104-URH-RB*	33.00
10	4.00	6,000	4.500	1.250	1"	Tapered	W-96104-URH-TB*	33.00
12	2.50	2,500	2.750	1.938	–	Plain	W-7112-UR	19.16
12	2.50	2,500	2.844	0.750	1" 1 1/4"	Roller	W-7112-UR-RB	20.81
12	3.00	3,500	3.250	1.938	–	Plain	W-7512-UR	21.74
12	3.00	3,500	3.438	0.750	1" 1 1/4"	Roller	W-7512-UR-RB	23.63
12	3.00	3,500	3.250	0.750	–	Tapered	W-9112-UR-TB *	31.22
12	3.00	4,600	3.500	1.250	3/4" 1"	Tapered	W-9112-URH-TB *	24.00
12	4.00	5,500	4.250	2.438	–	Plain	W-96124-URR *	30.00
12	4.00	5,500	4.250	1.250	1" 1 1/2"	Roller	W-96124-URR-RB *	30.00
12	4.00	5,500	4.500	1.250	1"	Tapered	W-96124-URR-TB *	30.00
12	4.00	6,600	4.250	2.438	–	Plain	W-96124-URH *	30.00
12	4.00	6,600	4.250	1.250	1" 1 1/2"	Roller	W-96124-URH-RB *	30.00
12	4.00	6,600	4.500	1.250	1"	Tapered	W-96124-URH-TB *	30.00
