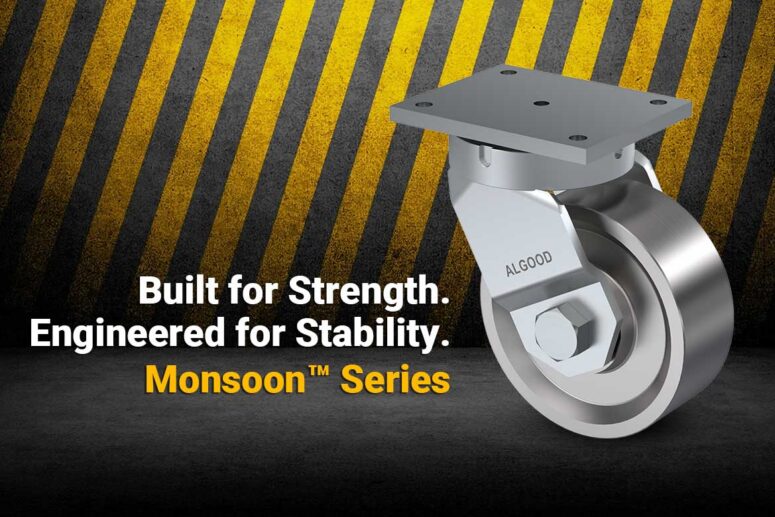

This unique caster has been designed and engineered to deliver 15,000 lbs of capacity in a kingpinless double-raceway configuration that provides exceptional stability. The Monsoon™ features a heavy-duty proprietary swivel head design that eliminates the kingpin, a traditional stress point that can loosen or fail under shock, impact, and heavy loads. Without a kingpin to deform or break, the Monsoon delivers greater structural integrity and dependable performance in severe heavy-duty applications.

This kingpinless caster head features a 5” raceway above a 3” raceway, with 5/8” and 1/2” diameter hardened steel ball bearings, respectively. The top raceway absorbs direct downward thrust, while the bottom raceway manages horizontal forces. Together, the two raceways function like a tapered bearing, allowing greater lateral movement while handling more severe loads.

Engineered for performance, the rig features continuously welded legs for added strength. A standard corrosion-resistant bright zinc finish enhances both protection and appearance, with other optional finishes also available.

The Monsoon is available in 6”, 8”, 10”, and 12” diameters with larger sizes available and tread widths of 3” and 4”. It can be configured with a range of brake options, including the PolyCam Brake (PCB), Universal Wheel Brake (UWB) and 4-position swivel lock (4PSL). Tapered or roller bearings are available on both swivel and rigid casters, along with options such as spring-loaded and dual-wheel configurations.

You can bring these configuration options to life using our CAD LAB™ caster modelling platform. Build your Monsoon solution by selecting sizes, wheels, and brakes to match your application, then export your configuration in a range of engineering file formats. Buyers, engineers, and operations leaders can move quickly without back-and-forth, benefiting from clean selection, accurate geometry, and full compatibility.

This heavyweight bestseller is produced in our integrated manufacturing facility in Toronto, delivering reliable lead times, dependable delivery dates, and high-quality North American manufacturing backed by our 3-year No-Excuse Warranty™. Many accompanying wheels, including RollX™ and NyRock™, are also manufactured in-house at Algood.

Built for demanding applications up to 15,000 lbs, the Monsoon Series is trusted across industries including tow lines, heavy service equipment, aircraft engine stands, ground support equipment, portable dollies, and die and tooling fixtures. Wherever stability, strength, and kingpinless performance are critical, the Monsoon delivers.

---

Algood is proud to manufacture its casters and wheels right here in North America. With our fully integrated manufacturing facility in Toronto, we are leaders in quality and innovation. For more information about Algood Casters, Call: 1-800-254-6633 or Email: Service@Algood.com
