Monsoon™ Series

Category: Tag:

The Monsoon™ Series stands out as a robust heavyweight caster, delivering enhanced capacity, stability, and durability.

Download Catalogue Page


The legs of the Monsoon™ are continuously welded for added strength. It comes with a standard corrosion-resistant bright zinc finish. Black and blue finishes are also available.

The TwinTrack head features a 6” raceway with ¾” diameter steel balls on top of a 3-13/16″ raceway with ½” diameter balls. The top raceway absorbs the direct downward thrust while the bottom raceway absorbs the horizontal thrust. Together the two raceways act like a tapered bearing allowing more lateral movement and taking harsher loads.

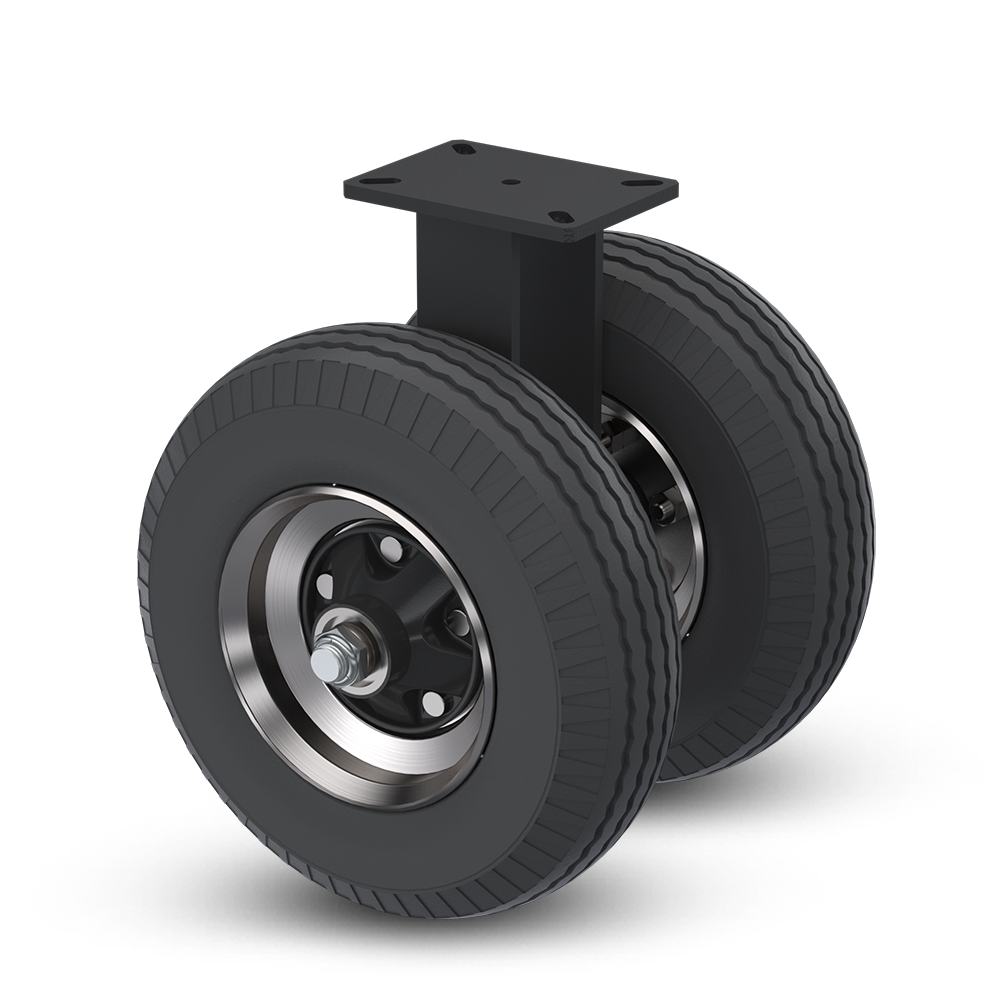

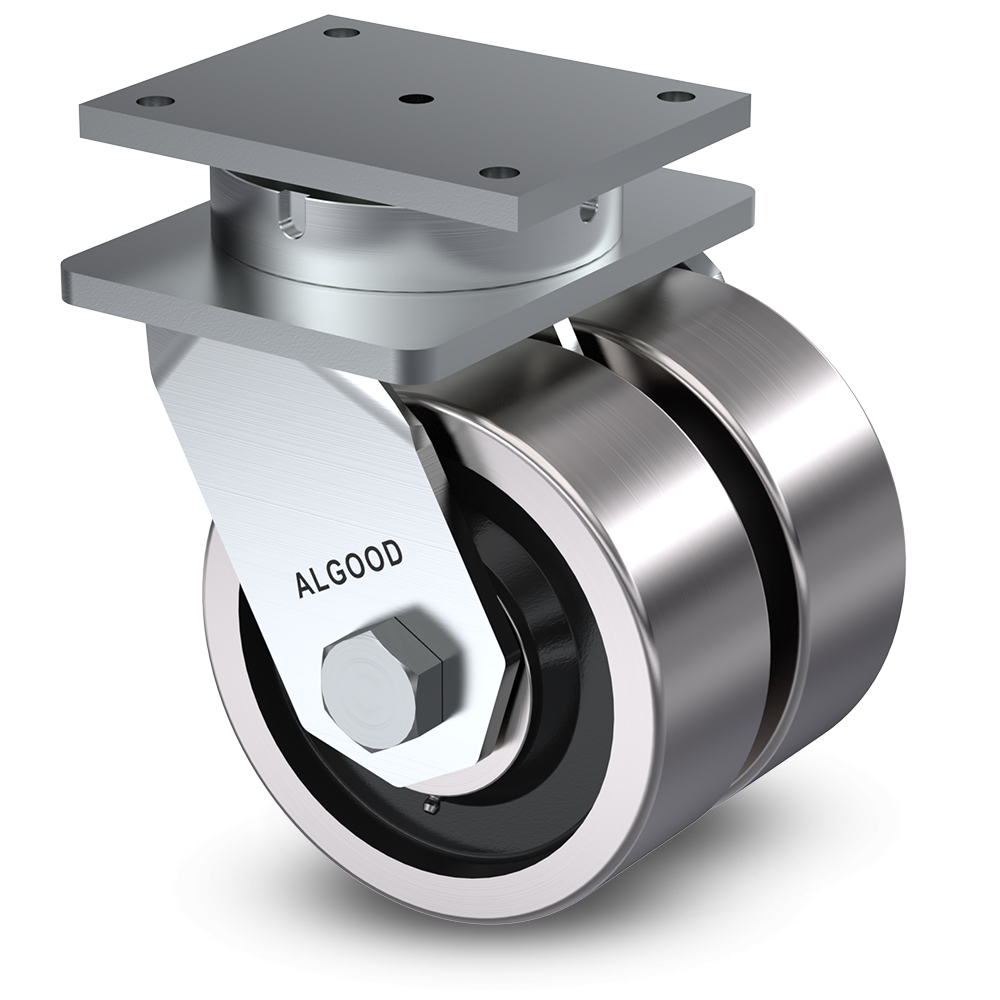

Options/Components: The Monsoon comes with a number of wheel choices including our NyRock™ as well as a range of brakes including the PolyCam brake and 4PSL. A tapered bearing is available on both swivel and rigid casters. Other options include spring-loaded and dual-wheel configurations.

Ideal Applications: Aircraft Engine Stands, Die & Tooling Fixtures, Ground Support Equipment, Heavy Service Equipment, Portable Dollies & Tow Lines.

Made in North America

Additional information

Wheel Diameter
Wheel Type Forged Steel, HD Moldon Urethane, Lava™, Moldon Rubber, Moldon Urethane, NyRock™, RollX™, Solid Steel, V Groove
Bearings Roller Bearing, Tapered Bearing
Leg Spacing ,
Axle & Nut
Plates A63L, A84L
Brakes , , ,

Monsoon Series Specifications & Part Numbers

1 (800) 254-6633

Algood Casters has manufactured, designed and developed industrial and specialty casters, brakes and wheels since 1969, in capacities from 25 to 65,000 lbs.
