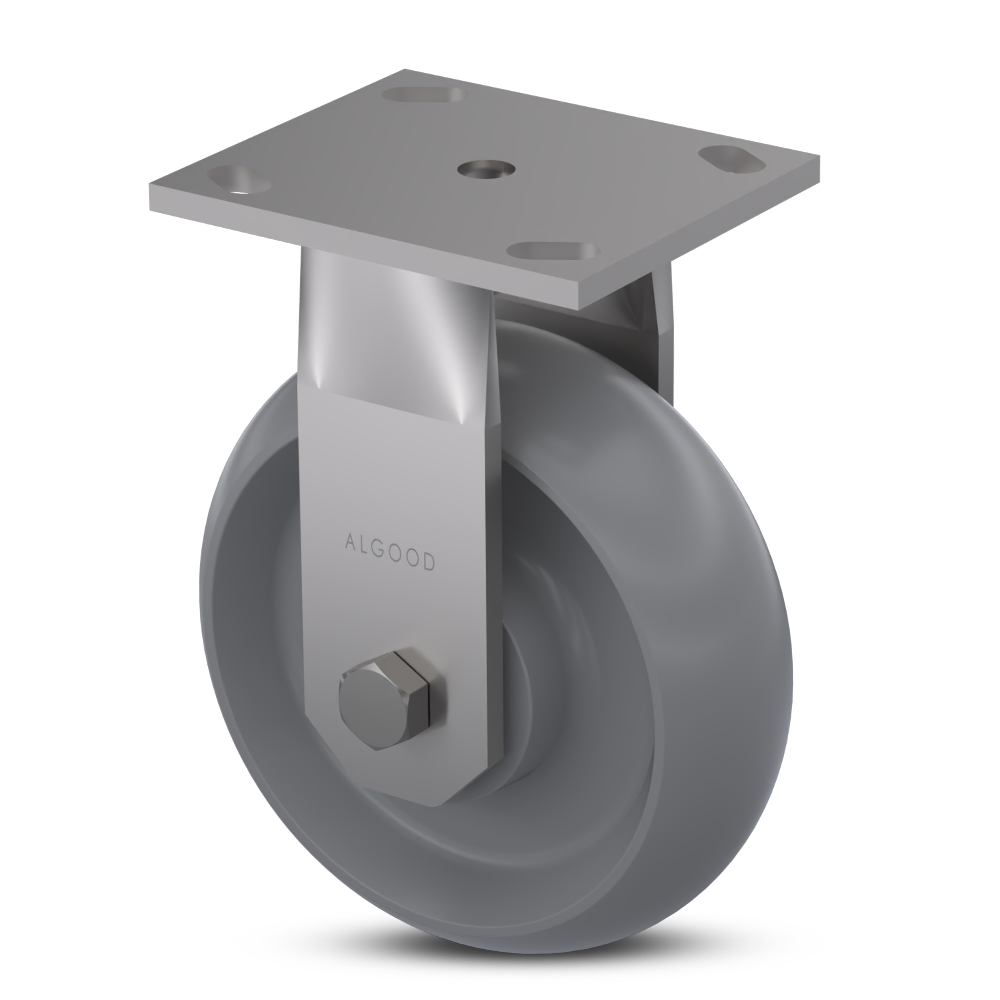

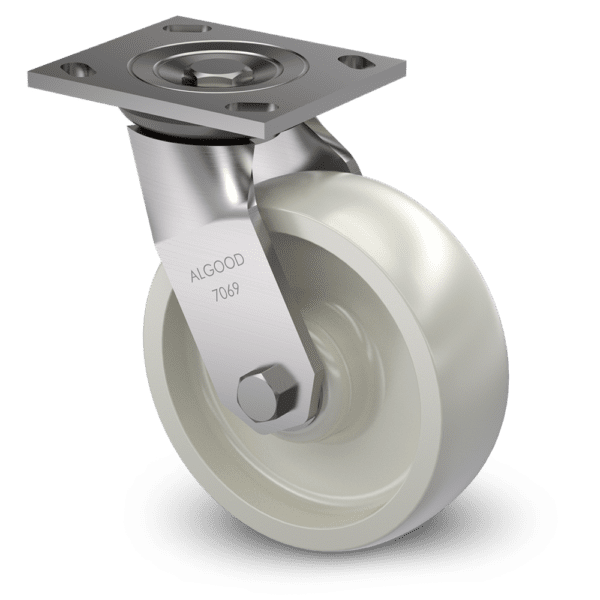

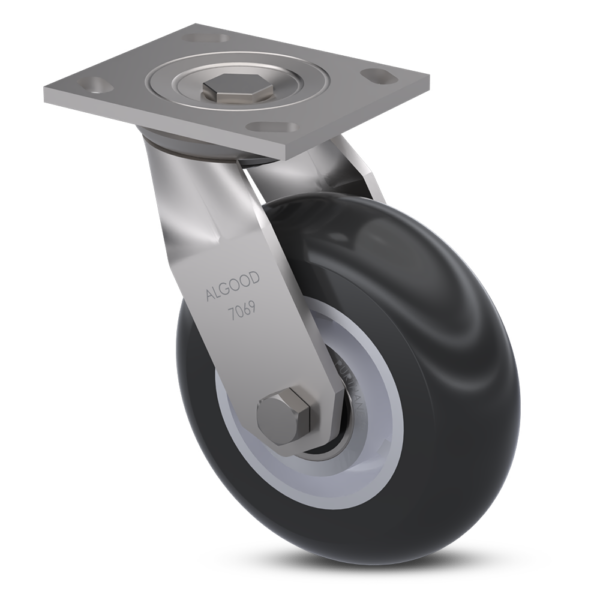

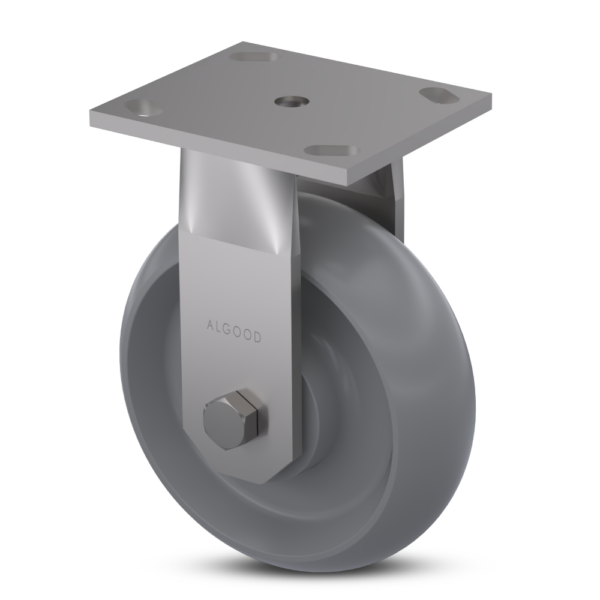

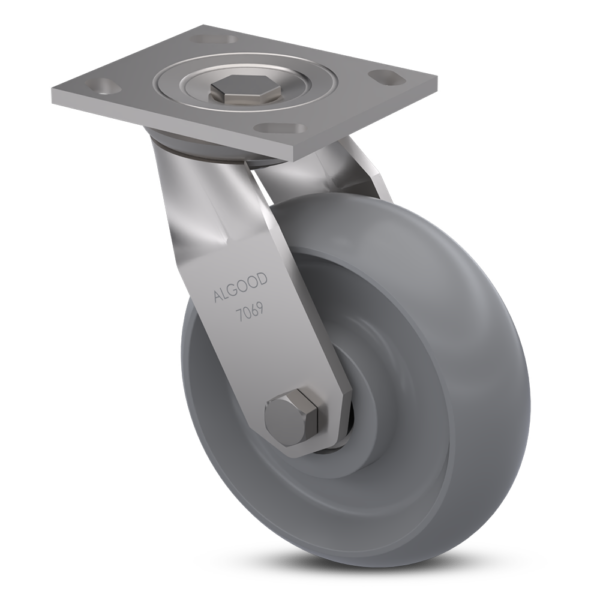

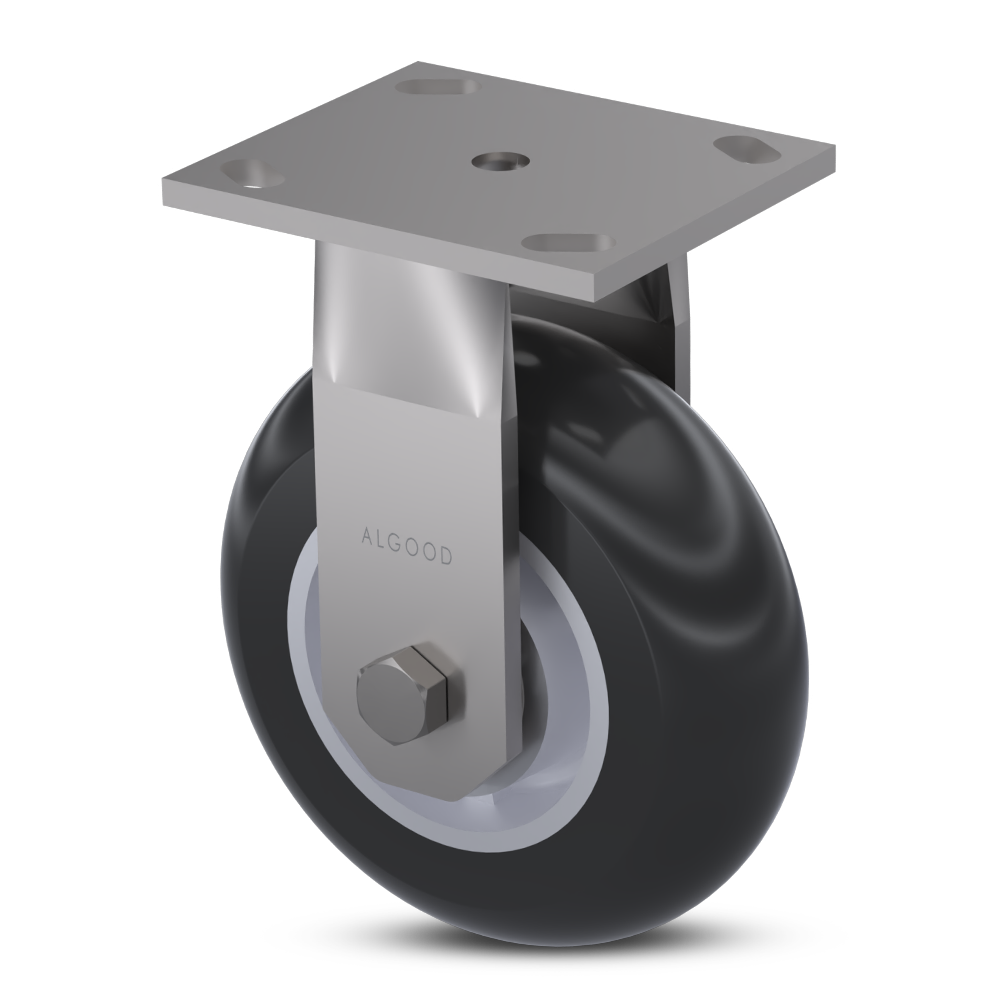

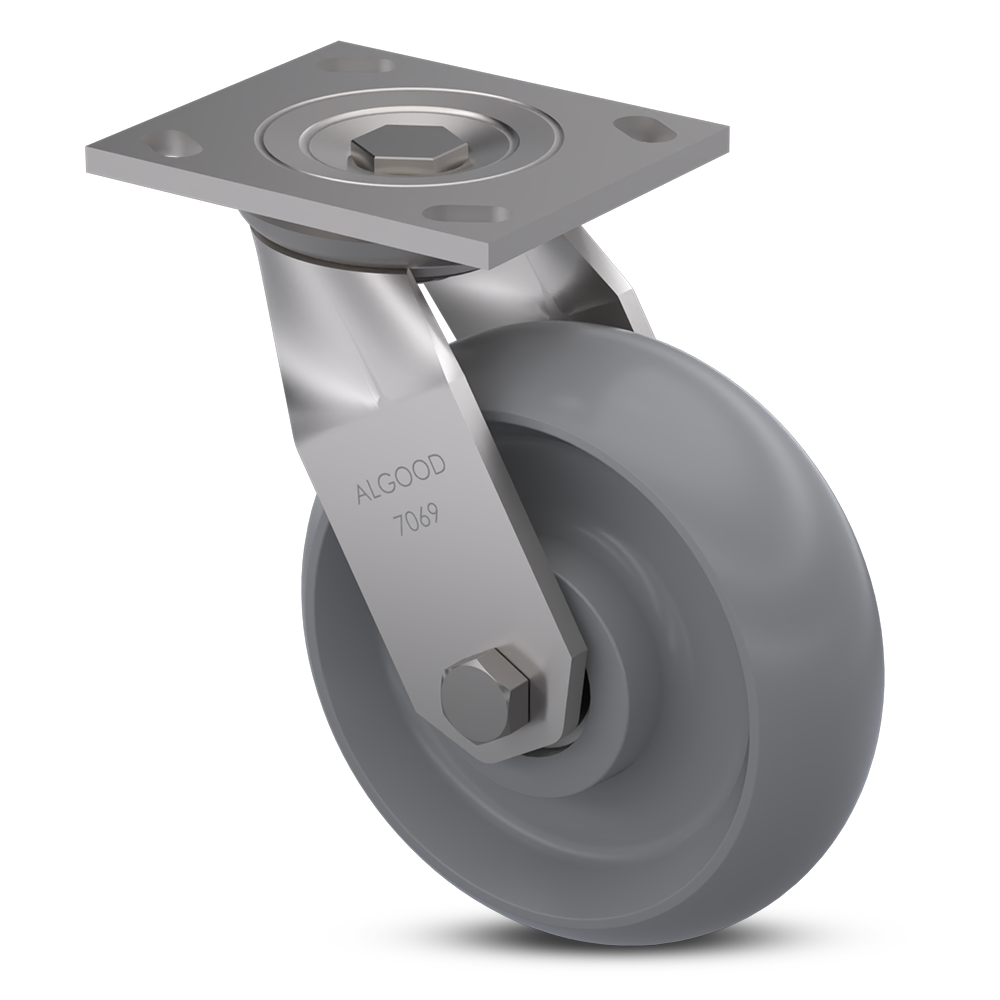

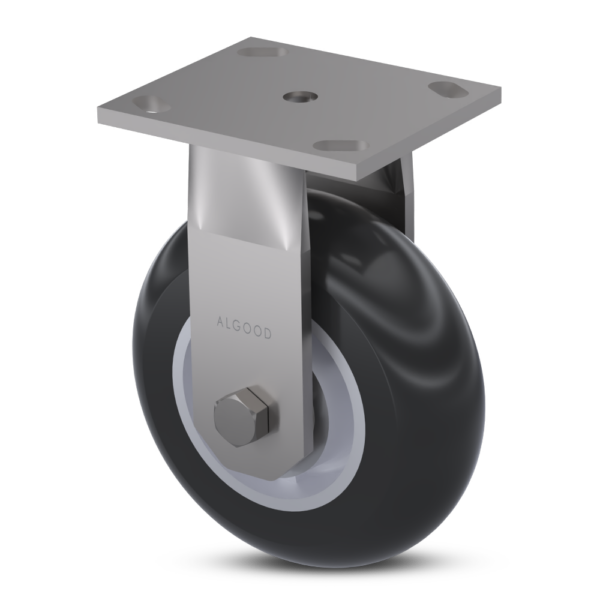

7009 Series

The 7009 Series is rugged and versatile. Sleek lines make it a thing of beauty and its welded stainless steel construction provides 1,250 lbs of power.

Download Catalogue Page

Description

This caster series is rugged and versatile. Sleek lines make it a thing of beauty and its welded construction provides 1,250 lbs of heavy-duty power.

The 7009 Caster Series is produced using work-hardened, electro-polished and de-magnetized SAE 304 stainless steel.

It comes with a double raceway construction that ensures the 7009 Caster Series outstanding maneuverability. The 5/8″ diameter nut and bolt coined kingpin adds stability and sturdiness. The unique construction of this caster allows us to customize the overall height and swivel lead to meet specific customer requirements. In addition, it can be produced with two and even three wheels.

Options/Components: Raceway balls, top plates, bearings, bushings and side washers can all be produced using stainless steel.

Ideal Applications: Bacteria-Free & Clean Environments, Healthcare, Food Processing & Pharmaceutical.

Made in North America

Additional information

Wheel Diameter
Wheel Type ALThane™, Balloon Cushion, Envirothane™, Envirothane™ Crowned, High Tempurature Phenolic, Lava™, Moldon Alum. Rubber, Moldon Alum. Urethane, Moldon Poly. Urethane, Nyroll™, Polyolefin, Protech™ Crowned, Protech™ Flat, Purthane™, Retort™, RollX™
Bushing
Bearings Ball Bearing, Bronze Bearing, Delrin Bearing, Precision Ball Bearing, Stainless Steel Ball Bearing, Stainless Steel Precision Bearing, Stainless Steel Roller Bearing
Leg Spacing
Axle & Nut
Kingpin
Raceway
Stems , ,
Plates A38H, A40H, A44H, A45H, A46H, A50H
Finish
Brakes , , , ,
Options , , , ,
STANDARD PLATE: A38H OPTIONAL PLATE: A40H
STANDARD PLATE: A44H OPTIONAL PLATE: A45H
STANDARD PLATE: A46H OPTIONAL PLATE: A50H
Stainless Steel Threaded Stems
*** Diameter Length Type
1/2-13X4HO 1/2" 4" NC
5/8-11X4 5/8" 4" NC
3/4-10X4 3/4" 4" NC
7/8-9X4 7/8" 4" NC
1-8X4 1" 4" NC
Stainless Steel Round Stems
*** Diameter Length Type
500 X 4 1/2" 4" Plain
625 X 4 5/8" 4" Plain
750 X 4 3/4" 4" Plain
875 X 4 7/8" 4" Plain
1.000 X 4 1" 4" Plain
1.375 X 4 1 3/8" 4" Plain
Stainless Steel Metric Stems
*** Diameter Thread Size Length
M12-1.75X4 12mm 1.75 4"
M14-2X4 14mm 2.0 4"
M16-2X4 16mm 2.0 4"
M18-2.5X4 18mm 2.5 4"
M20-2.5X4 20mm 2.5 4"
M22-2.5X4 22mm 2.5 4"
M24-3X4 24mm 3.0 4"
M27-3X4 27mm 3.0 4"


7009 Series Specifications & Part Numbers
