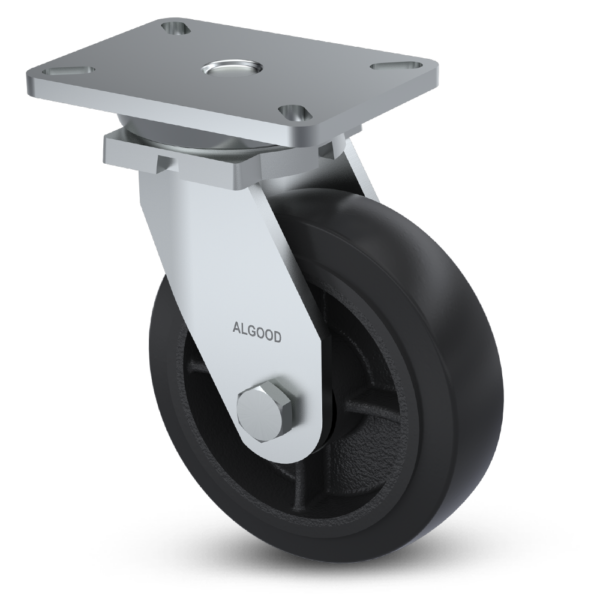

7200 Forged Series

Description

This heavy-duty caster features an integral kingpin design where the 1” kingpin and the 3/8” top plate are cast together as one piece from AISI 1045 forged steel.

Featuring two double deep grooved raceways – a 1/2″ diameter upper ball race with tapered roller thrust bearing, the 7200 series offers tremendous strength and delivers up to 3,250 lbs of capacity.

Options/Components: Can be paired with nine of our strongest 2.5” tread width wheels including our Envirothane™ and Envirothane HD™. Options include a thumb screw or universal wheel brake as well as a number of bearing options.

Ideal Applications: Abusive Conditions, Garbage & Cargo Containers, Dolly Carts, Heavy Loads, Factory Use & Heavy Material Handling.

Additional information

Wheel Diameter	6" - 12"
Wheel Type	ALThane™, Envirothane™, Lava™, Moldon Rubber, Moldon Urethane, Phenolic, RollX™, Solid Steel, V Groove
Bushing	Roller Bearings with Drilled Hardened Steel Spanner Bushing & Steel Side Washers
Bearings	Bronze Bearing, Delrin Bearing, Precision Ball Bearing
Leg Spacing	3"
Axle & Nut	3/4" Axle & Lock Nut
Kingpin	1" Diameter Integral Kingpin & Nut
Raceway	1/2" Diameter Upper Ball Raceway with Tapered Roller Thrust Bearing
Lubrication	Grease Nipple in Lower Race
Plates	A53J
Finish	Corrosion Resistant Bright Zinc
Brakes	Thumb Screw Brake, Universal Wheel Brake
Options	Heat-Treated Side Washer, Thread Guards, Thumb Screw Brake, Universal Wheel Brake, Zerk Axle

STANDARD PLATE: A53J

STANDARD PLATE: A53J

ALThane™ (ALT)	Moldon Rubber (MR)	Moldon Urethane (UR)	Phenolic (PH)	RollX™ WOW (RXW)
Lava™ (LV)	Envirothane™ (U)	Solid Steel (SS)	V Groove (VG)

Diameter	Tread Width	Capacity (lbs)	Bearing Type	Swivel Radius	Overall Height	Wheel Type	Swivel	Caster Weight (lbs)	Rigid
6	2.50	700	Roller	5.281	8.000	Moldon Rubber	S7206-A53J-MR-RB	14.41	R7206-A53J-MR-RB
6	2.50	1,200	Roller	5.281	8.000	Envirothane™	S7206-A53J-U-RB	11.21	R7206-A53J-U-RB
6	2.50	1,200	Precision	5.281	8.000	Envirothane™ Grey - PB	S7206-A53J-UG-PB	11.05	R7206-A53J-UG-PB
6	2.50	1,200	Roller	5.281	8.000	Envirothane™ Grey - RB	S7206-A53J-UG-RB	11.21	R7206-A53J-UG-RB
6	2.50	1,300	Roller	5.281	8.000	ALThane™	S7206-A53J-ALT-RB	10.41	R7206-A53J-ALT-RB
6	2.50	1,600	Roller	5.281	8.000	Phenolic	S7206-A53J-PH-RB	12.11	R7206-A53J-PH-RB
6	2.50	1,600	Roller	5.281	8.000	Moldon Urethane	S7206-A53J-UR-RB	15.13	R7206-A53J-UR-RB
6	2.50	1,800	Roller	5.281	8.000	Solid Steel	S7206-A53J-SS-RB	18.33	R7206-A53J-SS-RB
6	2.50	2,500	Roller	5.281	8.000	V Groove	S7206-A53J-VG-RB	16.81	R7206-A53J-VG-RB
8	2.50	850	Roller	6.125	10.500	Moldon Rubber	S7208-A53J-MR-RB	18.41	R7208-A53J-MR-RB
8	2.50	1,400	Roller	6.125	10.500	ALThane™	S7208-A53J-ALT-RB	12.73	R7208-A53J-ALT-RB
8	2.50	1,600	Roller	6.125	10.500	Envirothane™	S7208-A53J-U-RB	14.19	R7208-A53J-U-RB
8	2.50	1,600	Precision	6.125	10.500	Envirothane™ Grey - PB	S7208-A53J-UG-PB	13.88	R7208-A53J-UG-PB
8	2.50	1,600	Roller	6.125	10.500	Envirothane™ Grey - RB	S7208-A53J-UG-RB	14.19	R7208-A53J-UG-RB
8	2.50	1,800	Roller	6.125	10.500	Solid Steel	S7208-A53J-SS-RB	24.69	R7208-A53J-SS-RB
8	2.50	2,000	Roller	6.125	10.500	Phenolic	S7208-A53J-PH-RB	15.10	R7208-A53J-PH-RB
8	2.50	2,000	Roller	6.125	10.500	Moldon Urethane	S7208-A53J-UR-RB	21.05	R7208-A53J-UR-RB
8	2.50	2,500	Roller	6.125	10.500	V Groove	S7208-A53J-VG-RB	23.33	R7208-A53J-VG-RB
10	2.50	1,000	Roller	7.563	12.500	Moldon Rubber	S7210-A53J-MR-RB	22.55	R7210-A53J-MR-RB
10	2.50	2,000	Roller	7.563	12.500	Solid Steel	S7210-A53J-SS-RB	25.93	R7210-A53J-SS-RB
10	2.50	2,100	Roller	7.563	12.500	Lava™-WOW (475º)	S7210-A53J-LVW-RB	14.97	R7210-A53J-LVW-RB
10	2.50	2,200	Roller	7.563	12.500	Moldon Urethane	S7210-A53J-UR-RB	24.41	R7210-A53J-UR-RB
10	2.50	2,500	Roller	7.563	12.500	Phenolic	S7210-A53J-PH-RB	17.19	R7210-A53J-PH-RB
10	2.50	3,250	Roller	7.563	12.500	RollX™-WOW	S7210-A53J-RXW-RB	14.97	R7210-A53J-RXW-RB
10	2.50	3,250	Roller	7.563	12.500	Solid Steel	S7210-A53J-SSR-RB	25.89	R7210-A53J-SSR-RB
12	2.50	1,200	Roller	9.000	14.063	Moldon Rubber	S7212-A53J-MR-RB	26.03	R7212-A53J-MR-RB
12	2.50	2,000	Roller	9.000	14.063	Solid Steel	S7212-A53J-SS-RB	29.61	R7212-A53J-SS-RB
12	2.50	2,500	Roller	9.000	14.063	Moldon Urethane	S7212-A53J-UR-RB	30.00	R7212-A53J-UR-RB
12	2.50	3,000	Roller	9.000	14.063	Phenolic	S7212-A53J-PH-RB	21.55	R7212-A53J-PH-RB

Diameter

Tread Width

Capacity (lbs)

Bearing Type

Swivel Radius

Overall Height

Wheel Type

Swivel

Caster Weight (lbs)

Rigid

2.50

700

Roller

5.281

8.000

Moldon Rubber

S7206-A53J-MR-RB

14.41

R7206-A53J-MR-RB

2.50

1,200

Roller

5.281

8.000

Envirothane™

S7206-A53J-U-RB

11.21

R7206-A53J-U-RB

2.50

1,200

Precision

5.281

8.000

Envirothane™ Grey - PB

S7206-A53J-UG-PB

11.05

R7206-A53J-UG-PB

2.50

1,200

Roller

5.281

8.000

Envirothane™ Grey - RB

S7206-A53J-UG-RB

11.21

R7206-A53J-UG-RB

2.50

1,300

Roller

5.281

8.000

ALThane™

S7206-A53J-ALT-RB

10.41

R7206-A53J-ALT-RB

2.50

1,600

Roller

5.281

8.000

Phenolic

S7206-A53J-PH-RB

12.11

R7206-A53J-PH-RB

2.50

1,600

Roller

5.281

8.000

Moldon Urethane

S7206-A53J-UR-RB

15.13

R7206-A53J-UR-RB

2.50

1,800

Roller

5.281

8.000

Solid Steel

S7206-A53J-SS-RB

18.33

R7206-A53J-SS-RB

2.50

2,500

Roller

5.281

8.000

V Groove

S7206-A53J-VG-RB

16.81

R7206-A53J-VG-RB

2.50

850

Roller

6.125

10.500

Moldon Rubber

S7208-A53J-MR-RB

18.41

R7208-A53J-MR-RB

2.50

1,400

Roller

6.125

10.500

ALThane™

S7208-A53J-ALT-RB

12.73

R7208-A53J-ALT-RB

2.50

1,600

Roller

6.125

10.500

Envirothane™

S7208-A53J-U-RB

14.19

R7208-A53J-U-RB

2.50

1,600

Precision

6.125

10.500

Envirothane™ Grey - PB

S7208-A53J-UG-PB

13.88

R7208-A53J-UG-PB

2.50

1,600

Roller

6.125

10.500

Envirothane™ Grey - RB

S7208-A53J-UG-RB

14.19

R7208-A53J-UG-RB

2.50

1,800

Roller

6.125

10.500

Solid Steel

S7208-A53J-SS-RB

24.69

R7208-A53J-SS-RB

2.50

2,000

Roller

6.125

10.500

Phenolic

S7208-A53J-PH-RB

15.10

R7208-A53J-PH-RB

2.50

2,000

Roller

6.125

10.500

Moldon Urethane

S7208-A53J-UR-RB

21.05

R7208-A53J-UR-RB

2.50

2,500

Roller

6.125

10.500

V Groove

S7208-A53J-VG-RB

23.33

R7208-A53J-VG-RB

2.50

1,000

Roller

7.563

12.500

Moldon Rubber

S7210-A53J-MR-RB

22.55

R7210-A53J-MR-RB

2.50

2,000

Roller

7.563

12.500

Solid Steel

S7210-A53J-SS-RB

25.93

R7210-A53J-SS-RB

2.50

2,100

Roller

7.563

12.500

Lava™-WOW (475º)

S7210-A53J-LVW-RB

14.97

R7210-A53J-LVW-RB

2.50

2,200

Roller

7.563

12.500

Moldon Urethane

S7210-A53J-UR-RB

24.41

R7210-A53J-UR-RB

2.50

2,500

Roller

7.563

12.500

Phenolic

S7210-A53J-PH-RB

17.19

R7210-A53J-PH-RB

2.50

3,250

Roller

7.563

12.500

RollX™-WOW

S7210-A53J-RXW-RB

14.97

R7210-A53J-RXW-RB

2.50

3,250

Roller

7.563

12.500

Solid Steel

S7210-A53J-SSR-RB

25.89

R7210-A53J-SSR-RB

2.50

1,200

Roller

9.000

14.063

Moldon Rubber

S7212-A53J-MR-RB

26.03

R7212-A53J-MR-RB

2.50

2,000

Roller

9.000

14.063

Solid Steel

S7212-A53J-SS-RB

29.61

R7212-A53J-SS-RB

2.50

2,500

Roller

9.000

14.063

Moldon Urethane

S7212-A53J-UR-RB

30.00

R7212-A53J-UR-RB

2.50

3,000

Roller

9.000

14.063

Phenolic

S7212-A53J-PH-RB

21.55

R7212-A53J-PH-RB
