6900 Series

Category: Tag:

This heavy-duty caster features an integral design where the kingpin and top plate are cast together as one piece from forged steel, creating tremendous strength.

Download Catalogue Page


This heavy-duty caster features an integral kingpin design where the ¾” kingpin and the ¼” top plate are cast together as one piece from AISI 1045 forged steel.

Featuring two double deep grooved raceways – a 7/16″ diameter upper ball race with tapered roller thrust bearing, the 6900 series offers tremendous strength and delivers up to 1,600 lbs of capacity.

Options/Components: Over two dozen 2” tread width wheel choices (including our RollX™ and ProTech™ wheels) provide a host of available configurations.  It can be made with a thumb screw or universal wheel brake as well as a number of bearing options.

 Ideal Applications:  Industrial Platforms, garbage & cargo containers, dolly carts and all other hard working industrial functions

Additional information

Wheel Diameter

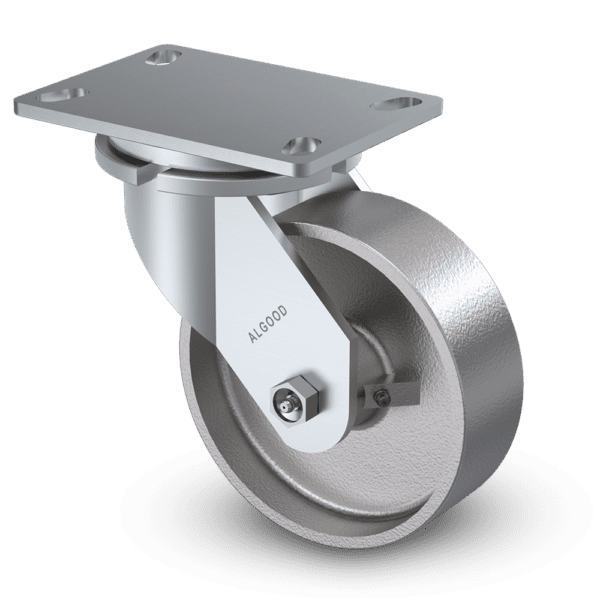

Wheel Type ALThane™, Balloon Cushion, Ductile Iron Crowned, Envirothane™, Envirothane™ Crowned, Flat Free, High Tempurature Phenolic, Moldon Alum. Rubber, Moldon Alum. Urethane, Moldon Poly. Urethane, Moldon Rubber, Moldon Urethane, Moldon Urethane Crowned, Nyroll™, Polyolefin, Protech™ Crowned, Protech™ Flat, Purthane™, RollX™, Semi Steel, Solid Steel, V Groove
Bearings Ball Bearing, Bronze Bearing, Caged Roller Bearing, Delrin Bearing, Nylon Roller Bearing, Precision Ball Bearing
Leg Spacing
Axle & Nut
Plates A46H
Brakes ,
Options , , ,

6900 Series Specifications & Part Numbers
