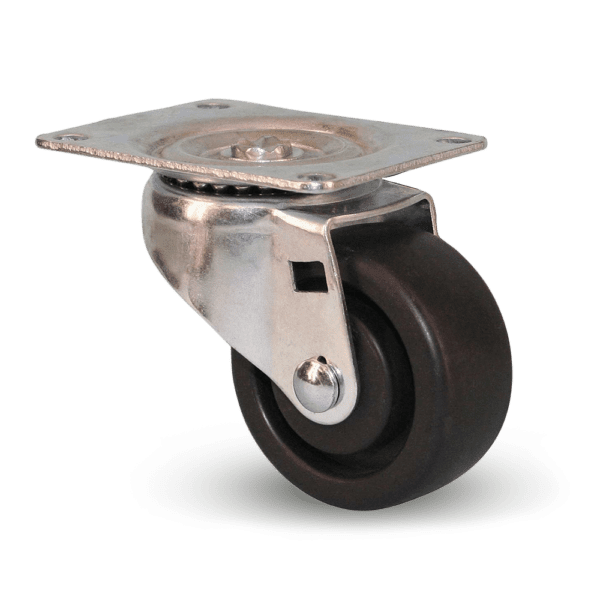

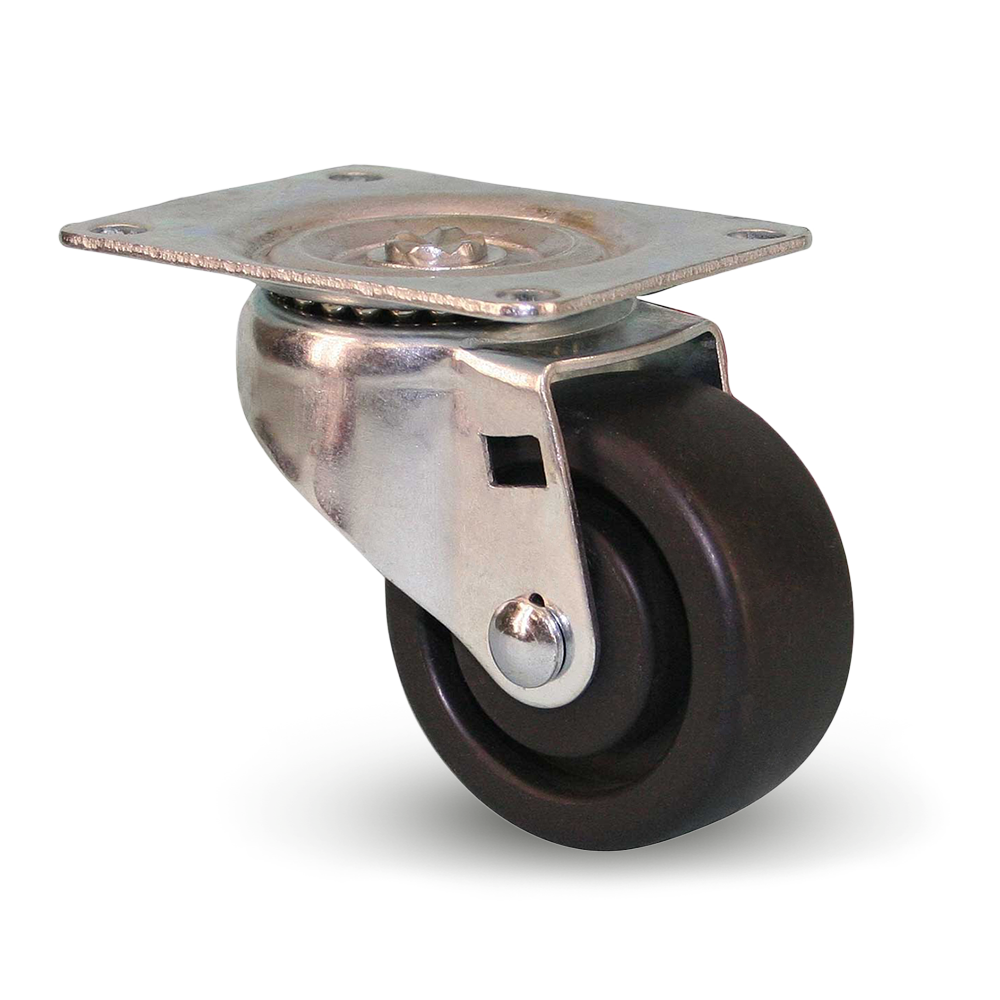

4000 Series

Description

This multi-purpose hardware caster comes with a large number of configurations and is an economical medium duty caster without sacrificing durability. It features a large single raceway deeply embossed for extra strength.

Options/Components: Available with a number of wheels including our RollX™, ProTech™ and Envirothane™. This caster comes with both a Side Locking Brake and Top Locking Brake. The large number of configurations includes almost ten top plates.

Ideal Applications: General to Medium-Duty Usage, Hardware, Factory & Warehouses.

Additional information

Wheel Diameter	3" - 8"
Wheel Type	Envirothane™, Lava™, Phenolic, Polyolefin, Protech™ Flat, RollX™, Soft Rubber, Solid Steel, V Groove
Bushing	Nylon Bushing, Steel Bushing
Bearings	Ball Bearing, Steel Roller Bearing
Axle & Nut	1/4" Axle & Lock Nut, 3/16" Riveted Axle, 3/8" Axle & Lock Nut, 5/16" Axle & Lock Nut
Kingpin	21/64" Diameter Rivet, 3/4" Diameter Rivet, 7/8" Diameter Rivet, 9/16" Diameter Rivet
Raceway	5/16" Diameter Upper Raceway, 1/4" Diameter Lower Raceway, Hardened Steel Load Bearings
Plates	A10C, A19C, A29D, R10C, R20C, R25C
Finish	Corrosion Resistant Bright Zinc
Brakes	Side Locking Brake, Top Locking Brake

PLATE OPTION: A10C FOR 4125	PLATE OPTION: A10C FOR 4002

PLATE OPTION: A10C FOR 4002	PLATE OPTION: A10C FOR 4002

PLATE OPTION: A10C FOR 4002	PLATE OPTION: A10C FOR 4002

Hard Rubber (HR)	Lava™ (LV)	Phenolic (PH)	Moldon Poly. Urethane (PLY)	Protect™ Flat (PROF)
Polyolefin (POX)	RollX™(RX)	Soft Rubber (SR)	Solid Steel (SS)	Envirothane™ (U)
V Groove (VG)

Diameter	Tread Width	Capacity (lbs)	Bearing Type	Swivel Radius	Overall Height	Wheel Type	Swivel	Caster Weight (lbs)	Rigid
1.25	0.562	30	Nylon	1.094	1.750	Moldon Poly. Urethane	S4125-A10C-PLY	0.10	R4125-R10C-PLY
2.00	0.875	75	Plain	2.000	2.500	ProTech™ Flat	S4002-A19C-PROF	0.23	R4002-R20C-PROF
2.00	0.875	80	Nylon	2.000	2.500	Soft Rubber	S4002-A19C-SR	0.33	R4002-R20C-SR
2.00	0.875	100	Nylon	2.000	2.500	Hard Rubber	S4002-A19C-HR	0.33	R4002-R20C-HR
2.00	0.875	100	Plain	2.000	2.500	Polyolefin	S4002-A19C-PO	0.22	R4002-R20C-PO
2.00	0.875	100	Nylon	2.000	2.500	EnvirothaneTM	S4002-A19C-U	0.29	R4002-R20C-U
2.00	0.875	100	Nylon	2.000	2.500	EnvirothaneTM Grey	S4002-A19C-UG	0.29	R4002-R20C-UG
2.00	0.875	125	Plain	2.000	2.500	Semi Steel	S4002-A19C-ST	0.67	R4002-R20C-ST
2.00	1.125	100	Nylon	2.375	3.250	Soft Rubber	S4025-A29D-SR	0.84	R4025-R25C-SR
2.00	1.125	160	Plain	2.375	3.250	Moldon Poly. Urethane	S4025-A29D-PLY	0.85	R4025-R25C-PLY
2.00	1.125	200	Plain	2.375	3.250	Polyolefin	S4025-A29D-PO	0.66	R4025-R25C-PO
2.00	1.125	200	Plain	2.375	3.250	Semi Steel	S4025-A29D-ST	1.28	R4025-R25C-ST
3.00	1.250	200	Steel	3.000	3.812	High Temp Phenolic (475°)	S4003-A32D-HTPH	1.16	R4003-R30D-HTPH
3.00	1.250	200	Nylon	3.000	3.812	Soft Rubber	S4003-A32D-SR	1.16	R4003-R30D-SR
3.00	1.250	200	Steel	3.000	3.812	Soft Rubber Grey	S4003-A32D-SRG	1.14	R4003-R30D-SRG
3.00	1.250	225	Nylon	3.000	3.812	ProTech™ Flat	S4003-A32D-PROF	0.93	R4003-R30D-PROF
3.00	1.250	225	Precision	3.000	3.812	ProTech™ Flat - PB - TG	S4003-A32D-PROF-PB-TG	0.98	R4003-R30D-PROF-PB-TG
3.00	1.250	225	Precision	3.000	3.812	ProTech™ Flat Blue -PB-TG	S4003-A32D-PROFB-PB-TG	0.98	R4003-R30D-PROFB-PB-TG
3.00	1.250	250	Nylon	3.000	3.812	Hard Rubber	S4003-A32D-HR	1.16	R4003-R30D-HR
3.00	1.250	250	Steel	3.000	3.812	Hard Rubber Grey	S4003-A32D-HRG	1.22	R4003-R30D-HRG
3.00	1.250	250	Steel	3.000	3.812	Lava™ (475°)	S4003-A32D-LV	1.11	R4003-R30D-LV
3.00	1.250	250	Steel	3.000	3.812	Phenolic	S4003-A32D-PH	1.05	R4003-R30D-PH
3.00	1.250	250	Roller	3.000	3.812	Phenolic	S4003-A32D-1 1/2PH-RB	1.48	R4003-R30D-1 1/2PH-RB
3.00	1.250	250	Precision	3.000	3.812	Moldon Poly. Urethane	S4003-A32D-PLY-PB-TG	0.98	R4003-R30D-PLY-PB-TG
3.00	1.250	250	Plain	3.000	3.812	Polyolefin	S4003-A32D-PO	0.84	R4003-R30D-PO
3.00	1.250	250	Plain	3.000	3.812	Heavy Duty Polyolefin	S4003-A32D-POHD	0.94	R4003-R30D-POHD
3.00	1.250	250	Steel	3.000	3.812	RollX™	S4003-A32D-RX	1.11	R4003-R30D-RX
3.00	1.250	250	Steel	3.000	3.812	Solid Steel	S4003-A32D-SS	1.68	R4003-R30D-SS
3.00	1.250	250	Nylon	3.000	3.812	Envirothane™	S4003-A32D-U	1.02	R4003-R30D-U
3.00	1.250	250	Nylon	3.000	3.812	Envirothane™ Grey	S4003-A32D-UG	1.02	R4003-R30D-UG
3.00	1.250	250	Steel	3.000	3.812	V Groove	S4003-A32D-VG	1.98	R4003-R30D-VG
4.00	1.500	250	Nylon	3.375	5.000	Soft Rubber	S4004-A41E-SR	2.36	R4004-R40D-SR
4.00	1.500	275	Plain	3.375	5.000	Polyolefin	S4004-A41E-PO	1.50	R4004-R40D-PO
4.00	1.500	300	Roller	3.375	5.000	High Temp Phenolic (475°)	S4004-A41E-HTPH-RB	2.51	R4004-R40D-HTPH-RB
4.00	1.500	300	Steel	3.375	5.000	Lava™ (475°)	S4004-A41E-LV	1.98	R4004-R40D-LV
4.00	1.500	300	Roller	3.375	5.000	Lava™ (475°)	S4004-A41E-LV-RB	2.31	R4004-R40D-LV-RB
4.00	1.500	300	Delrin	3.375	5.000	Phenolic	S4004-A41E-PH-DB	2.03	R4004-R40D-PH-DB
4.00	1.500	300	Roller	3.375	5.000	Phenolic	S4004-A41E-PH-RB	2.21	R4004-R40D-PH-RB
4.00	1.500	300	Roller	3.375	5.000	Polyolefin	S4004-A41E-PO-RB	1.85	R4004-R40D-PO-RB
4.00	1.500	300	Delrin	3.375	5.000	ProTech™ Flat	S4004-A41E-PROF-DB	1.83	R4004-R40D-PROF-DB
4.00	1.500	300	Roller	3.375	5.000	ProTech™ Flat	S4004-A41E-PROF-RB	2.01	R4004-R40D-PROF-RB
4.00	1.500	300	Steel	3.375	5.000	RollX™	S4004-A41E-RX	1.98	R4004-R40D-RX
4.00	1.500	300	Roller	3.375	5.000	RollX™	S4004-A41E-RX-RB	2.22	R4004-R40D-RX-RB
4.00	1.500	300	Delrin	3.375	5.000	Solid Steel	S4004-A41E-SS-DB	3.69	R4004-R40D-SS-DB
4.00	1.500	300	Roller	3.375	5.000	Solid Steel	S4004-A41E-SS-RB	3.87	R4004-R40D-SS-RB
4.00	1.500	300	Delrin	3.375	5.000	Envirothane™	S4004-A41E-U-DB	1.95	R4004-R40D-U-DB
4.00	1.500	300	Roller	3.375	5.000	Envirothane™	S4004-A41E-U-RB	2.13	R4004-R40D-U-RB
4.00	1.500	300	Delrin	3.375	5.000	Envirothane™ Grey	S4004-A41E-UG-DB	1.95	R4004-R40D-UG-DB
4.00	1.500	300	Roller	3.375	5.000	Envirothane™ Grey	S4004-A41E-UG-RB	2.13	R4004-R40D-UG-RB
4.00	1.500	300	Delrin	3.375	5.000	V Groove	S4004-A41E-VG-DB	3.93	R4004-R40D-VG-DB
4.00	1.500	300	Roller	3.375	5.000	V Groove	S4004-A41E-VG-RB	4.11	R4004-R40D-VG-RB

Diameter

Tread Width

Capacity (lbs)

Bearing Type

Swivel Radius

Overall Height

Wheel Type

Swivel

Caster Weight (lbs)

Rigid

1.25

0.562

Nylon

1.094

1.750

Moldon Poly. Urethane

S4125-A10C-PLY

0.10

R4125-R10C-PLY

2.00

0.875

Plain

2.000

2.500

ProTech™ Flat

S4002-A19C-PROF

0.23

R4002-R20C-PROF

2.00

0.875

Nylon

2.000

2.500

Soft Rubber

S4002-A19C-SR

0.33

R4002-R20C-SR

2.00

0.875

100

Nylon

2.000

2.500

Hard Rubber

S4002-A19C-HR

0.33

R4002-R20C-HR

2.00

0.875

100

Plain

2.000

2.500

Polyolefin

S4002-A19C-PO

0.22

R4002-R20C-PO

2.00

0.875

100

Nylon

2.000

2.500

EnvirothaneTM

S4002-A19C-U

0.29

R4002-R20C-U

2.00

0.875

100

Nylon

2.000

2.500

EnvirothaneTM Grey

S4002-A19C-UG

0.29

R4002-R20C-UG

2.00

0.875

125

Plain

2.000

2.500

Semi Steel

S4002-A19C-ST

0.67

R4002-R20C-ST

2.00

1.125

100

Nylon

2.375

3.250

Soft Rubber

S4025-A29D-SR

0.84

R4025-R25C-SR

2.00

1.125

160

Plain

2.375

3.250

Moldon Poly. Urethane

S4025-A29D-PLY

0.85

R4025-R25C-PLY

2.00

1.125

200

Plain

2.375

3.250

Polyolefin

S4025-A29D-PO

0.66

R4025-R25C-PO

2.00

1.125

200

Plain

2.375

3.250

Semi Steel

S4025-A29D-ST

1.28

R4025-R25C-ST

3.00

1.250

200

Steel

3.000

3.812

High Temp Phenolic (475°)

S4003-A32D-HTPH

1.16

R4003-R30D-HTPH

3.00

1.250

200

Nylon

3.000

3.812

Soft Rubber

S4003-A32D-SR

1.16

R4003-R30D-SR

3.00

1.250

200

Steel

3.000

3.812

Soft Rubber Grey

S4003-A32D-SRG

1.14

R4003-R30D-SRG

3.00

1.250

225

Nylon

3.000

3.812

ProTech™ Flat

S4003-A32D-PROF

0.93

R4003-R30D-PROF

3.00

1.250

225

Precision

3.000

3.812

ProTech™ Flat - PB - TG

S4003-A32D-PROF-PB-TG

0.98

R4003-R30D-PROF-PB-TG

3.00

1.250

225

Precision

3.000

3.812

ProTech™ Flat Blue -PB-TG

S4003-A32D-PROFB-PB-TG

0.98

R4003-R30D-PROFB-PB-TG

3.00

1.250

250

Nylon

3.000

3.812

Hard Rubber

S4003-A32D-HR

1.16

R4003-R30D-HR

3.00

1.250

250

Steel

3.000

3.812

Hard Rubber Grey

S4003-A32D-HRG

1.22

R4003-R30D-HRG

3.00

1.250

250

Steel

3.000

3.812

Lava™ (475°)

S4003-A32D-LV

1.11

R4003-R30D-LV

3.00

1.250

250

Steel

3.000

3.812

Phenolic

S4003-A32D-PH

1.05

R4003-R30D-PH

3.00

1.250

250

Roller

3.000

3.812

Phenolic

S4003-A32D-1 1/2PH-RB

1.48

R4003-R30D-1 1/2PH-RB

3.00

1.250

250

Precision

3.000

3.812

Moldon Poly. Urethane

S4003-A32D-PLY-PB-TG

0.98

R4003-R30D-PLY-PB-TG

3.00

1.250

250

Plain

3.000

3.812

Polyolefin

S4003-A32D-PO

0.84

R4003-R30D-PO

3.00

1.250

250

Plain

3.000

3.812

Heavy Duty Polyolefin

S4003-A32D-POHD

0.94

R4003-R30D-POHD

3.00

1.250

250

Steel

3.000

3.812

RollX™

S4003-A32D-RX

1.11

R4003-R30D-RX

3.00

1.250

250

Steel

3.000

3.812

Solid Steel

S4003-A32D-SS

1.68

R4003-R30D-SS

3.00

1.250

250

Nylon

3.000

3.812

Envirothane™

S4003-A32D-U

1.02

R4003-R30D-U

3.00

1.250

250

Nylon

3.000

3.812

Envirothane™ Grey

S4003-A32D-UG

1.02

R4003-R30D-UG

3.00

1.250

250

Steel

3.000

3.812

V Groove

S4003-A32D-VG

1.98

R4003-R30D-VG

4.00

1.500

250

Nylon

3.375

5.000

Soft Rubber

S4004-A41E-SR

2.36

R4004-R40D-SR

4.00

1.500

275

Plain

3.375

5.000

Polyolefin

S4004-A41E-PO

1.50

R4004-R40D-PO

4.00

1.500

300

Roller

3.375

5.000

High Temp Phenolic (475°)

S4004-A41E-HTPH-RB

2.51

R4004-R40D-HTPH-RB

4.00

1.500

300

Steel

3.375

5.000

Lava™ (475°)

S4004-A41E-LV

1.98

R4004-R40D-LV

4.00

1.500

300

Roller

3.375

5.000

Lava™ (475°)

S4004-A41E-LV-RB

2.31

R4004-R40D-LV-RB

4.00

1.500

300

Delrin

3.375

5.000

Phenolic

S4004-A41E-PH-DB

2.03

R4004-R40D-PH-DB

4.00

1.500

300

Roller

3.375

5.000

Phenolic

S4004-A41E-PH-RB

2.21

R4004-R40D-PH-RB

4.00

1.500

300

Roller

3.375

5.000

Polyolefin

S4004-A41E-PO-RB

1.85

R4004-R40D-PO-RB

4.00

1.500

300

Delrin

3.375

5.000

ProTech™ Flat

S4004-A41E-PROF-DB

1.83

R4004-R40D-PROF-DB

4.00

1.500

300

Roller

3.375

5.000

ProTech™ Flat

S4004-A41E-PROF-RB

2.01

R4004-R40D-PROF-RB

4.00

1.500

300

Steel

3.375

5.000

RollX™

S4004-A41E-RX

1.98

R4004-R40D-RX

4.00

1.500

300

Roller

3.375

5.000

RollX™

S4004-A41E-RX-RB

2.22

R4004-R40D-RX-RB

4.00

1.500

300

Delrin

3.375

5.000

Solid Steel

S4004-A41E-SS-DB

3.69

R4004-R40D-SS-DB

4.00

1.500

300

Roller

3.375

5.000

Solid Steel

S4004-A41E-SS-RB

3.87

R4004-R40D-SS-RB

4.00

1.500

300

Delrin

3.375

5.000

Envirothane™

S4004-A41E-U-DB

1.95

R4004-R40D-U-DB

4.00

1.500

300

Roller

3.375

5.000

Envirothane™

S4004-A41E-U-RB

2.13

R4004-R40D-U-RB

4.00

1.500

300

Delrin

3.375

5.000

Envirothane™ Grey

S4004-A41E-UG-DB

1.95

R4004-R40D-UG-DB

4.00

1.500

300

Roller

3.375

5.000

Envirothane™ Grey

S4004-A41E-UG-RB

2.13

R4004-R40D-UG-RB

4.00

1.500

300

Delrin

3.375

5.000

V Groove

S4004-A41E-VG-DB

3.93

R4004-R40D-VG-DB

4.00

1.500

300

Roller

3.375

5.000

V Groove

S4004-A41E-VG-RB

4.11

R4004-R40D-VG-RB

4000 Series

4000 Series

Description

Additional information

325 LBS

1900C Shopping Cart Series

1900C Shopping Cart Series

270 LBS

Wizard Series

Wizard Series

800 LBS

8900 Series

8900 Series

110 LBS

8300 Series

8300 Series

450 LBS

5000 Series

5000 Series

700 LBS

5400 Series

5400 Series

4000 Series Specifications & Part Numbers

4000 Series

4000 Series

Description

Additional information

Related products

325 LBS

1900C Shopping Cart Series

1900C Shopping Cart Series

270 LBS

Wizard Series

Wizard Series

800 LBS

8900 Series

8900 Series

110 LBS

8300 Series

8300 Series

450 LBS

5000 Series

5000 Series

700 LBS

5400 Series

5400 Series

4000 Series Specifications & Part Numbers
