1000 Series

Category: Tag:

The 1000 Series Caster is a versatile, long-lasting, lightweight workhorse. At prices that will fit almost any budget, these casters are a smart economical choice.

Download Catalogue Page

Description

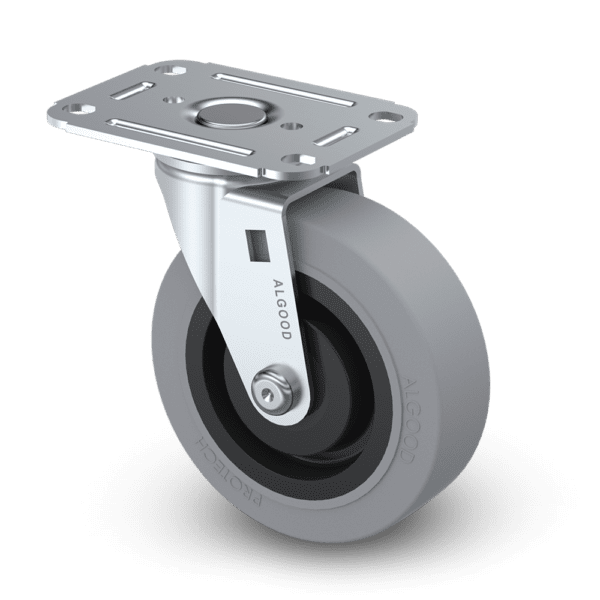

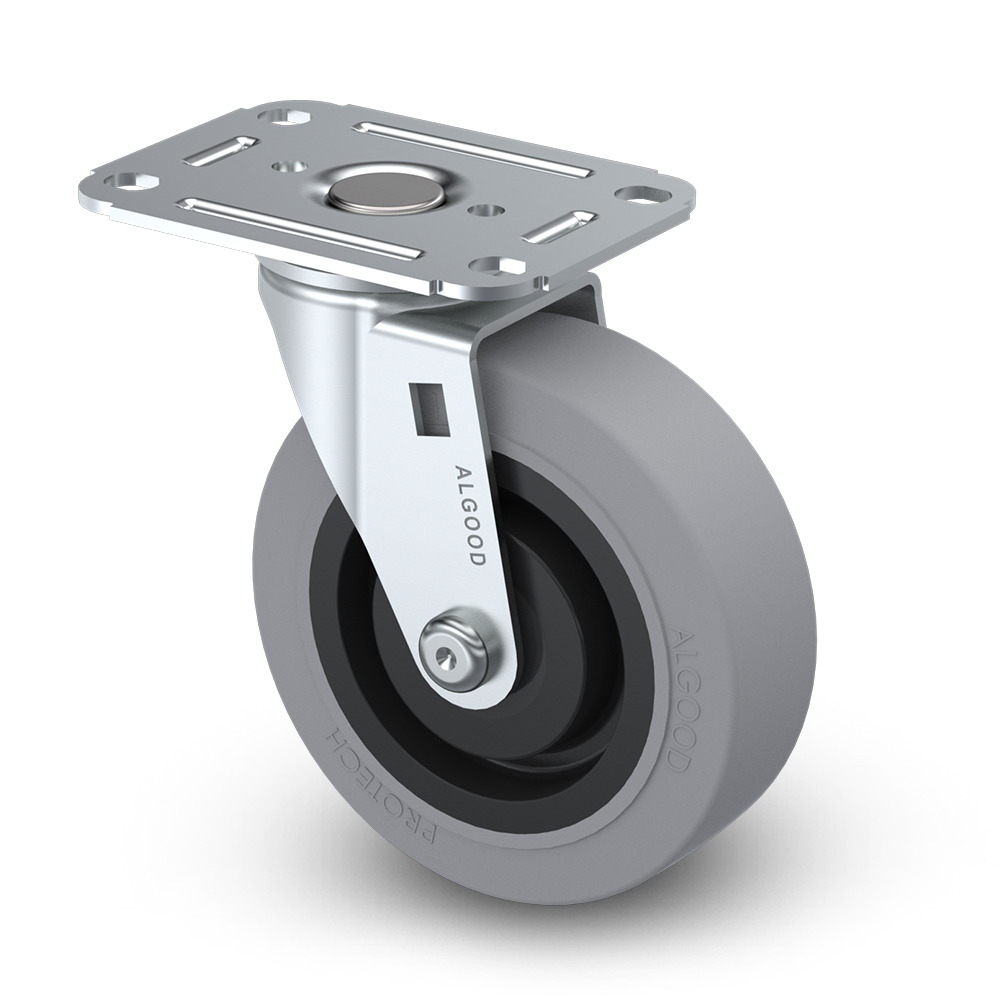

The 1000 Series Caster is a versatile, long-lasting, lightweight workhorse. At prices that will fit almost any budget, these casters are a smart economical choice. Weighing in at 1-2 lbs, the 1000 Series efficiently delivers 200 lbs. of capacity. Casters are available in 3”, 4”, and 5” diameters with a tread width of either 1” or 1-1/4”. The diameter of the upper and lower raceways is equal, providing added performance and strength.

A wide array of options is available with the 1000 Series. It comes compatible with both the Top Locking Brake and Side Locking Brakes. An assortment of stems, including square and threaded stems ensure that these casters are compatible with just about any cart or equipment.

Various Finishes & Custom Finishes with Qualifying Orders.

Options/Components: An assortment of Stems: Square & Threaded Stems. Brake Options: Top Lock or Side Lock.

Ideal Applications: Audio-Visual Equipment, Book Carts, Floral Carts, Mail Carts, Healthcare Equipment, Institutional Furniture, Light Toolboxes, Light Platform Trucks, Store Fixtures, Food Service and Material Handling Equipment.

Made in North America

Additional information

Wheel Diameter
Wheel Type Envirothane™, Hard Rubber, Phenolic, Polyolefin, Protech™ Crowned, Protech™ Flat, Retort™, Soft Rubber
Bushing ,
Bearings Ball Bearing, Sealed Ball Bearing
Leg Spacing ,
Axle & Nut
Kingpin
Raceway
Stems , , , ,
Plates A28D
Finish , , , , , , , , ,
Brakes ,
Options , , ,
STANDARD PLATE: A28D
Threaded Stems – HEX Washer
*** Diameter Length Type
3/8-16X1HW 3/8" 1" NC
1/2-13X1HW 1/2" 1" NC
1/2-13X1 1/2HW 1/2" 1 1/2" NC
1/2-13X2 1/4HW 1/2" 2 1/4" NC
Threaded Stems – HEX Nut
*** Diameter Length Type
1/2-13X1HN 1/2" 1" NC
1/2-13X1 7/8HN 1/2" 1 7/8" NC
1/2-13X3 1/2HN 1/2" 3 1/2" NC
Round Stems
*** Diameter Length Type
437X1 7/8 7/16" 1 7/8" Plain
437SX1 7/16" 1" Friction Ring
437SX1 5/16 7/16" 1 5/16" Friction Ring
437SX1 7/8 7/16" 1 7/8" Friction Ring
625S 5/8" 1 5/8" Friction Ring
812S 13/16" 2" Friction Ring
862S .862" 2" Friction Ring
875S 7/8" 2" Friction Ring
995S 0.995" 2 1/2" Friction Ring
1.050S 1 3/64" 2 1/2" Friction Ring
Square Stems
*** Diameter Length
3/4SQ 3/4" 2"
7/8SQ 7/8" 2"
Special Stems
*** Diameter Length
3/4NPT 1" 3/4"
EXP 1 1/2" 3 1/2"


1000 Series Specifications & Part Numbers
