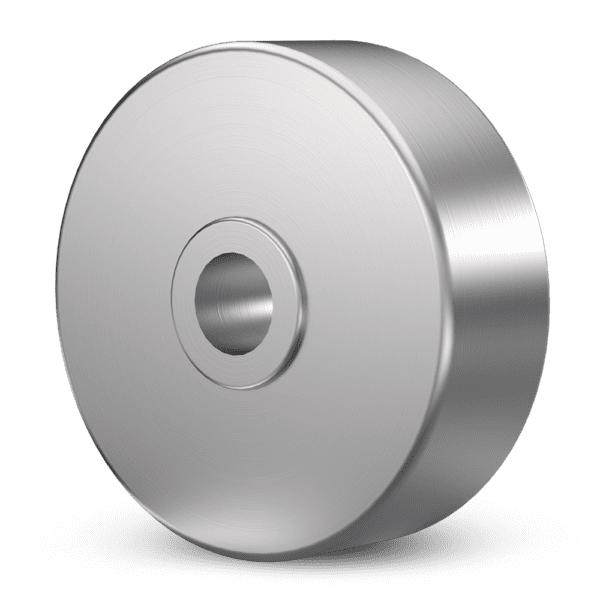

304 Wheels

Description

These wheels are made from 304 Stainless Steel and deliver an unbeatable combination of strength and cleanliness.

With hardness of Brinell 123, these heavy-duty wheels have a capacity of up to 3,500 lbs., can handle very heavy loads, are easy rolling and offer outstanding longevity.

Stainless Steel wheels are NSF Approved and perfect for demanding environments where corrosion cannot be tolerated.

Options/Components: The wheels come with stainless steel precision ball or roller bearings, Delrin bearings, brass bushings, or as a plain bore.

Ideal Applications: Food Processing Plants, Pharmaceutical Operations, Healthcare Settings, High-Tech Facilities, Wash-Down Applications. Platform Trucks, Animal Cages & Heavy Material Handling.

Additional information

Wheel Diameter	3" - 12"
Durometer	Brinell 123
Temperature	800°F
Bearings	Delrin Bearing, Plain, Stainless Steel Ball Bearing, Stainless Steel Precision Bearing, Stainless Steel Roller Bearing
Colours	Steel Grey

Diameter	Tread Width	Capacity (lbs)	Hub Length	Standard Bore	Alternative Bore	Bearing Type	Part Number	Wheel Weight (lbs)
3	1.50	600	1.625	1.188	5/16"* 3/8"* 1/2"* 3/4"	Plain	W-6203-304	2.64
3	1.50	600	1.813	0.500	3/4"	Roller	W-6203-304-RB	3.10
3	1.50	600	1.625	1.188	5/16"* 3/8"* 1/2"* 3/4"	Plain	W-6203-VG304	2.11
3	1.50	600	1.813	0.500	3/4"	Roller	W-6203-VG304-RB	2.57
4	1.50	600	1.625	1.188	5/16"* 3/8"* 1/2"* 3/4"	Plain	W-6204-304	5.03
4	1.50	600	1.813	0.500	3/4"	Roller	W-6204-304-RB	5.49
4	1.50	600	1.625	1.188	5/16"* 3/8"* 1/2"* 3/4"	Plain	W-6204-VG304	4.28
4	1.50	600	1.813	0.500	3/4"	Roller	W-6204-VG304-RB	4.74
4	2.00	850	2.188	1.188	1/2"* 3/4"	Plain	W-7004-304	6.71
4	2.00	850	2.375	0.500	3/4"	Roller	W-7004-304-RB	7.24
4	2.00	850	2.188	1.188	1/2"* 3/4"	Plain	W-7004-VG304	5.96
4	2.00	850	2.375	0.500	3/4"	Roller	W-7004-VG304-RB	6.49
5	2.00	950	2.188	1.188	1/2"* 3/4"	Plain	W-7005-304	10.79
5	2.00	950	2.375	0.500	3/4"	Roller	W-7005-304-RB	11.32
5	2.00	950	2.188	1.188	1/2"* 3/4"	Plain	W-7005-VG304	9.85
5	2.00	950	2.375	0.500	3/4"	Roller	W-7005-VG304-RB	10.38
6	2.00	1,200	2.188	1.188	1/2"* 3/4"	Plain	W-7006-304	15.77
6	2.00	1,200	2.375	0.500	3/4"	Roller	W-7006-304-RB	16.30
6	2.00	1,200	2.188	1.188	1/2"* 3/4"	Plain	W-7006-VG304	14.79
6	2.00	1,200	2.375	0.500	3/4"	Roller	W-7006-VG304-RB	15.32
6	3.00	3,500	3.250	1.938	–	Plain	W-9106-304	22.22
6	3.00	3,500	3.438	0.750	1"* 1 1/4"	Roller	W-9106-304-RB	24.21
6	3.00	3,500	3.250	1.938	–	Plain	W-9106-VG304	21.18
6	3.00	3,500	3.438	0.750	1"* 1 1/4"	Roller	W-9106-VG304-RB	23.17
8	2.00	1,500	2.188	1.188	1/2"* 3/4"	Plain	W-7008-304	28.47
8	2.00	1,500	2.375	0.500	3/4"	Roller	W-7008-304-RB	29.00
8	2.00	1,500	2.188	1.188	1/2"* 3/4"	Plain	W-7008-VG304	26.96
8	2.00	1,500	2.375	0.500	3/4"	Roller	W-7008-VG304-RB	27.49
8	3.00	3,500	3.250	1.938	3/4"* 1"* 1 1/4"	Plain	W-9108-304	41.28
8	3.00	3,500	3.438	0.750	1"* 1 1/4"	Roller	W-9108-304-RB	43.27
8	3.00	3,500	3.250	1.938	3/4"* 1"* 1 1/4"	Plain	W-9108-VG304	41.28
8	3.00	3,500	3.438	0.750	1"* 1 1/4"	Roller	W-9108-VG304-RB	43.27
10	3.00	3,500	3.250	1.938	3/4"* 1"* 1 1/4"	Plain	W-9110-304	65.80
10	3.00	3,500	3.438	0.750	1"* 1 1/4"	Roller	W-9110-304-RB	67.79
10	3.00	3,500	3.250	1.938	3/4"* 1"* 1 1/4"	Plain	W-9110-VG304	64.03
10	3.00	3,500	3.438	0.750	1"* 1 1/4"	Roller	W-9110-VG304-RB	66.02
12	3.00	3,500	3.250	1.938	3/4"* 1"* 1 1/4"	Plain	W-9112-304	95.76
12	3.00	3,500	3.438	0.750	1"* 1 1/4"	Roller	W-9112-304-RB	97.76
