0700 Series

Category: Tag:

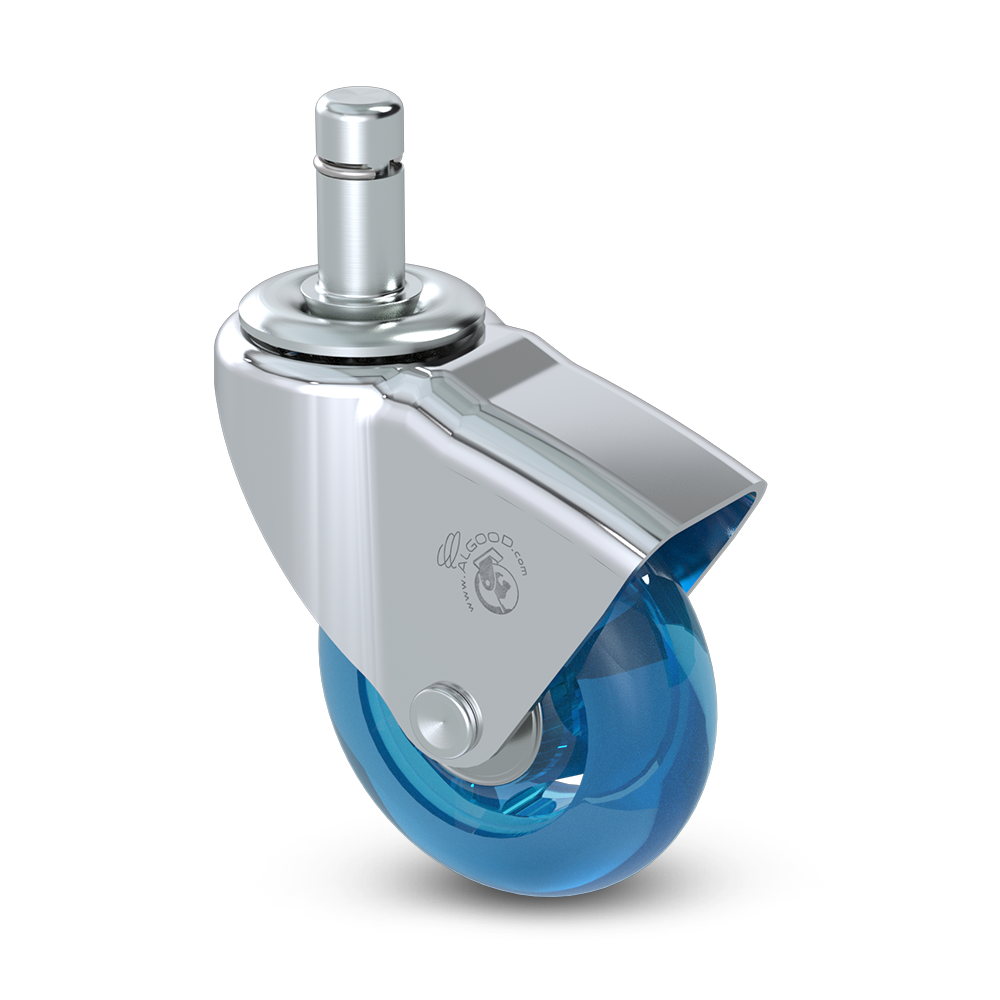

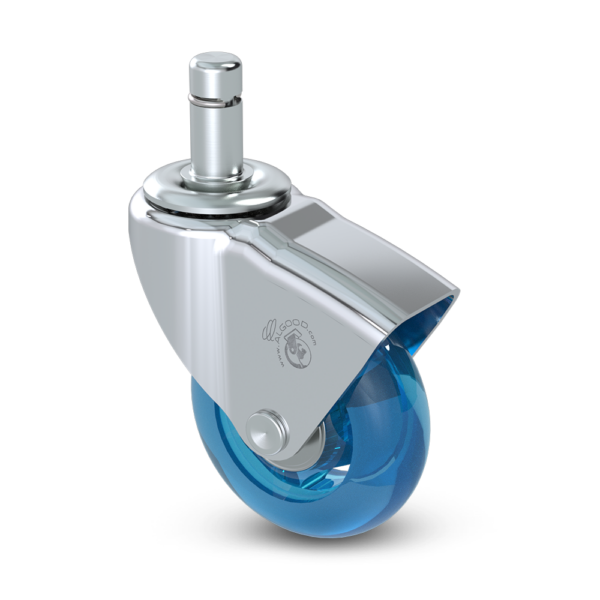

Not only are our 0700 Series casters versatile and dependable, but their sleek design will enhance the look of everything from office furniture to store fixtures.

Download Catalogue Page

Description

Not only are our 0700 Series casters versatile and dependable, but their sleek design will enhance the look of everything from office furniture to store fixtures.

These casters come with a variety of wheels. Our Envirothane™ wheels are soft enough for tiled surfaces and, along with Protech™ wheels, are hard enough for carpeted floors. Colourful Ice wheels enhance the overall aesthetic of the casters. Polyolefin & Soft Rubber wheels are also available.

When used on chairs and paired with our Envirothane™ wheels, the 0700 Series Casters are BIFMA-Approved to meet the highest safety, performance, and sustainability standards for office furniture.

Options/Components: Choice of Round & Threaded Stems. Finishes Include: Antique Brass, Antique Copper, Black Flat, Black Gloss, Black Ionic, Black Lacquer, Brush Nickel, & Chrome.

Ideal Applications: Office Furniture, Chairs & IV Poles.

Made in North America

Additional information

Wheel Diameter
Wheel Type Conductive Soft Rubber, Envirothane™, Envirothane™ Tapered, ICE™, Polyolefin, Protech™ Flat, Soft Rubber
Bushing , ,
Bearings Ball Bearing, Precision Bearing
Leg Spacing
Axle & Nut
Kingpin
Raceway
Stems , ,
Plates A12D, A17D
Finish , , , , ,
Options ,
STANDARD PLATE: A12D OPTIONAL PLATE: A17D
Threaded Stems – HEX Washer
*** Diameter Length Type
5/16-18X13/16HW 5/16" 13/16" NC
5/16-18X1HW 5/16" 1" NC
3/8-16X1/2HW 3/8" 1/2" NC
3/8-16X3/4HW 3/8" 3/4" NC
3/8-16X1HW 3/8" 1" NC
3/8-16X1 1/2HW 3/8" 1 1/2" NC
Threaded Stems – HEX Nut
*** Diameter Length Type
5/16-18X3/4HN 5/16" 3/4" NC
5/16-18X1HN 5/16" 1" NC
3/8-16X5/8HN 3/8" 5/8" NC
3/8-16X1HN 3/8" 1" NC
3/8-16X1 1/2HN 3/8" 1 1/2" NC
Round Stems
*** Diameter Length Type
375SX1 3/8" 1" Friction Ring
375 5/16" 1 9/16" Grip Neck
437X1 7/8 7/16" 7/8" Plain
437SX1 7/16" 1" Friction Ring
437SX1 5/16 7/16" 1 5/16" Friction Ring
437SX1 7/8 7/16" 1 7/8" Friction Ring


0700 Series Specifications & Part Numbers
