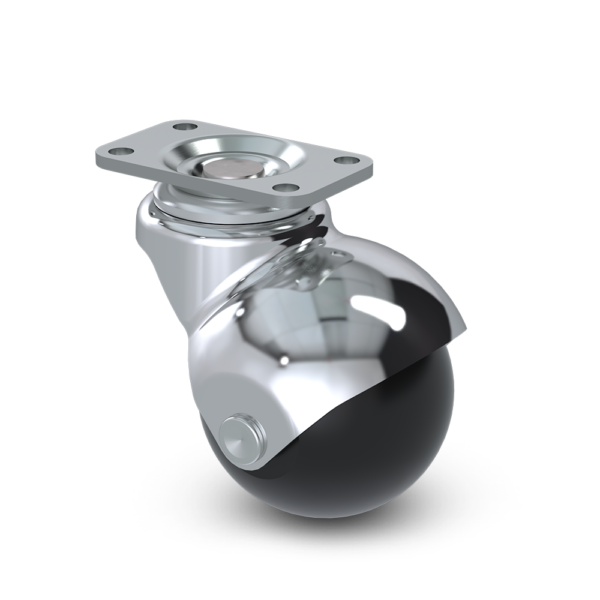

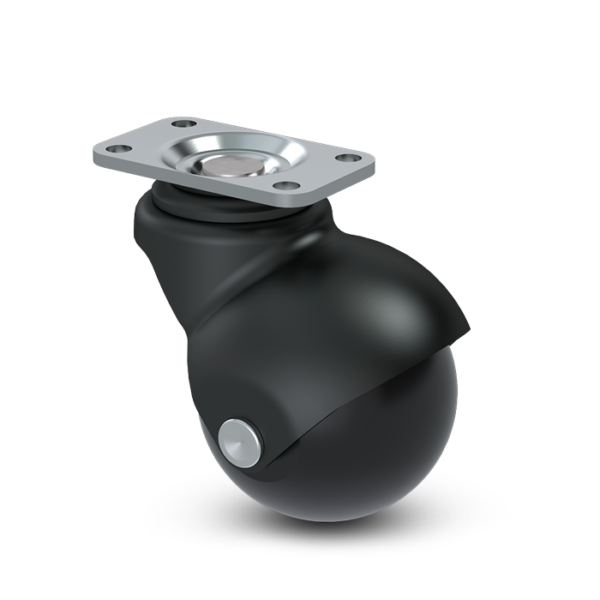

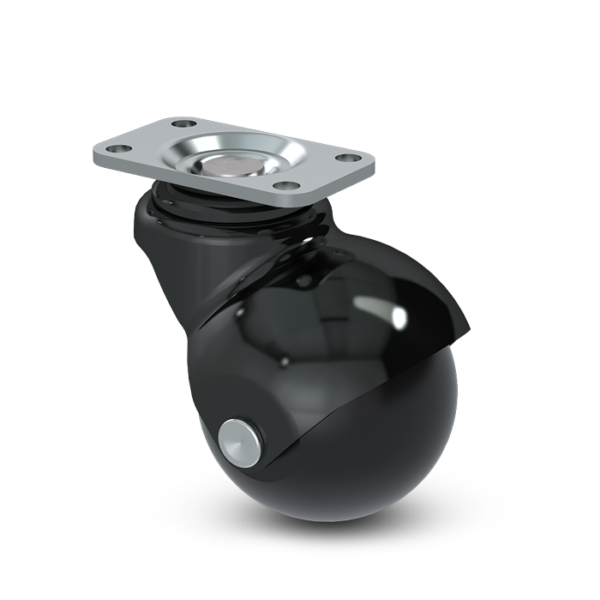

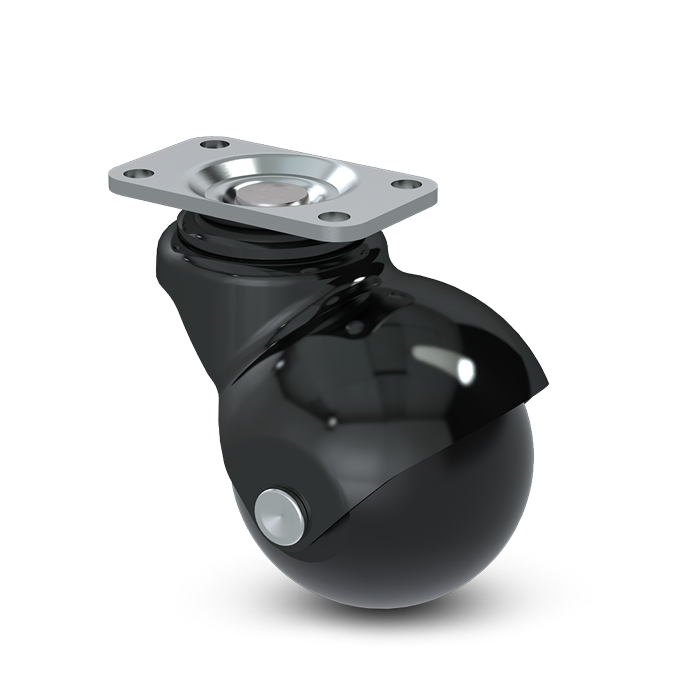

0600 Series

Category: Tag:

Whether you use these ball casters in their iconic office environments or other settings, they are an economical and attractive mobility solution.

Download Catalogue Page

Description

Whether you use these ball casters in their iconic office environments or other settings, they are an economical and attractive mobility solution.

These casters are designed to swivel and move easily. The spherical shape allows the caster to sit on a single point, reducing friction and enabling motion. The wheel rides directly on the bushing instead of on bearings, providing excellent mobility at reasonable costs. Hardened steel load raceway bearings and self-lubricating acetal resin bushings increase longevity and make ball casters virtually maintenance-free.

While Polyolefin wheels are an option, Envirothane™ wheels are particularly useful because they are hard enough for carpeted floors and soft enough for tiled surfaces. In addition, the grey Envirothane creates a distinctive color combination.

Options/Component: Options include a side locking brake and a number of top plate choices. They come with grip ring, grip neck or threaded stems in a variety of sizes. The bright chrome finish is standard and a number of other finishes are available with qualifying orders.

Ideal Applications: Institutional & Healthcare Environments, Store Fixtures, Office Chairs & Office Furniture.

Made in North America

Additional information

Wheel Diameter
Wheel Type Envirothane™, Polyolefin
Bushing
Bearings Ball Bearing
Leg Spacing ,
Axle & Nut
Kingpin
Raceway
Stems , ,
Plates A12D, A17D
Finish , , , , ,
Brakes
Options
STANDARD PLATE: A12D OPTIONAL PLATE: A17D
Threaded Stems – HEX Washer
*** Diameter Length Type
5/16-18X13/16HW 5/16" 13/16" NC
5/16-18X1HW 5/16" 1" NC
3/8-16X1/2HW 3/8" 1/2" NC
3/8-16X3/4HW 3/8" 3/4" NC
3/8-16X1HW 3/8" 1" NC
3/8-16X1 1/2HW 3/8" 1 1/2" NC
Threaded Stems – HEX Nut
*** Diameter Length Type
5/16-18X3/4HN 5/16" 3/4" NC
5/16-18X1HN 5/16" 1" NC
3/8-16X5/8HN 3/8" 5/8" NC
3/8-16X1HN 3/8" 1" NC
3/8-16X1 1/2HN 3/8" 1 1/2" NC
Round Stems
*** Diameter Length Type
375SX1 3/8" 1" Friction Ring
375 5/16" 1 9/16" Grip Neck
437X1 7/8 7/16" 7/8" Plain
437SX1 7/16" 1" Friction Ring
437SX1 5/16 7/16" 1 5/16" Friction Ring
437SX1 7/8 7/16" 1 7/8" Friction Ring


0600 Series Specifications & Part Numbers

1 (800) 254-6633
service@algood.com

Algood Casters has manufactured, designed and developed industrial and specialty casters, brakes and wheels since 1969, in capacities from 25 to 65,000 lbs.
