Description

The Twin Track™ Series features a 4” raceway with extra large hardened steel 1/2” diameter balls on top of a 2-3/4” raceway with 3/8” diameter balls.

Twin Track™ Series has been uniquely designed and engineered. The raceway diameter, offset angle and orientation of the two raceways have been optimized through 3D print prototyping to maximize performance and increase both capacity and longevity.

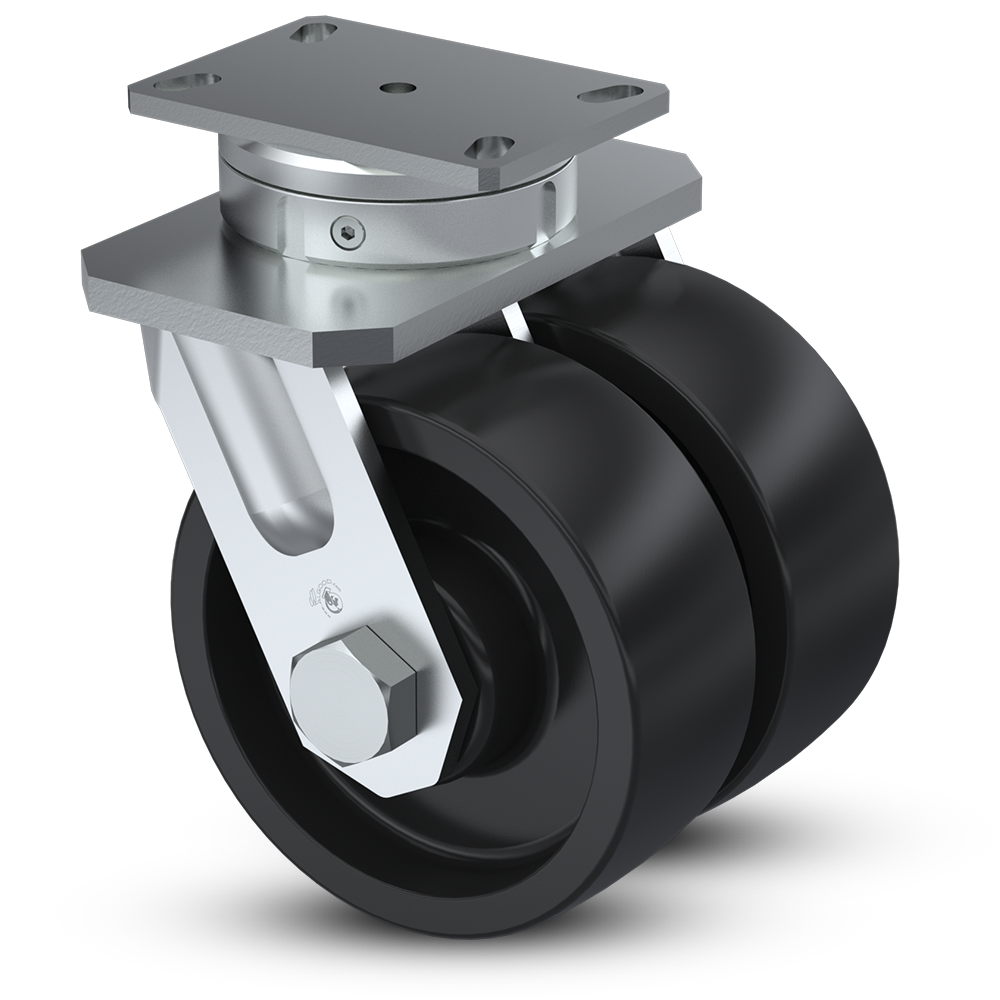

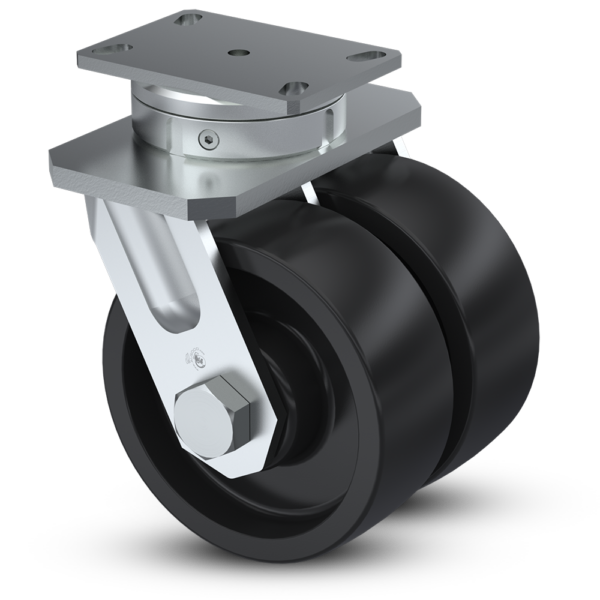

Featuring a 1” axle, Twin Track™ can accommodate horizontal and vertical loads simultaneously. With 3/8” thick double welded legs, this heat-treated caster is finished in corrosion-resistant bright zinc. We also offer the Twin Track™ with dual wheel configurations.

Options/Components: Available with a number of wheels including our NyRock™. Brake choices include PolyCam, Thumb Screw, Universal Wheel & Four Position Swivel Lock. Dual Wheel version is also available.

Ideal Applications: Aircraft Engine Stands, Abusive Conditions, Industrial Platform Trucks, Ground Support Equipment, Most Hardworking Industrial Functions, Heavy Service Equipment, Die & Tooling Fixtures, Tow Lines, & Portable Dollies.
