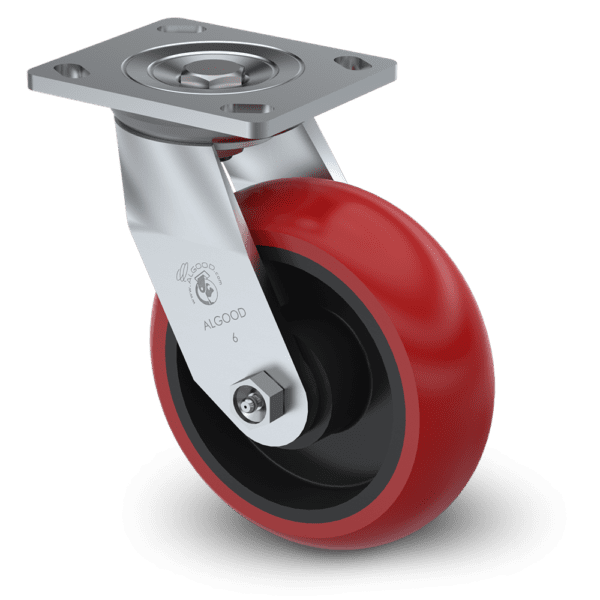

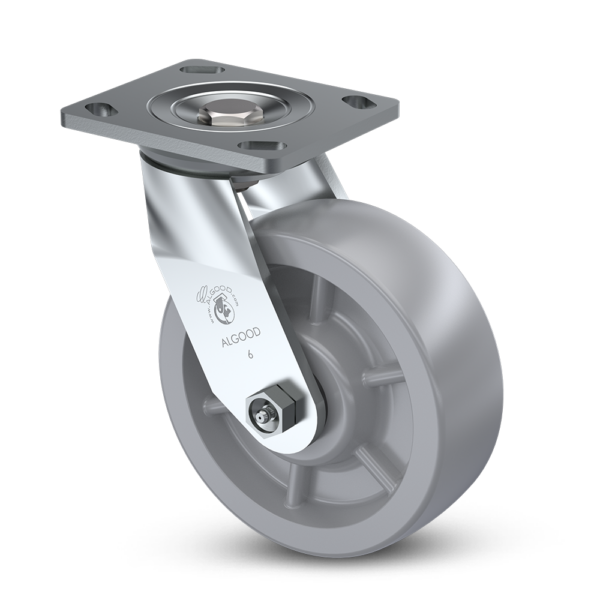

7000 Series

Description

These rugged yet economical casters have a welded construction that provides 1250 lbs. of power. Their durability is matched only by their versatility.

The 7000 Series caster comes with a double raceway construction that ensures outstanding maneuverability. The ⅝” diameter nut and bolt coined kingpin adds stability and sturdiness.

Options/Components: 7000 Series casters can be paired with over two dozen wheels including our RollX™, Envirothane™ and ProTech™. A variety of brakes and swivel locks are also available. It also comes with your choice of six bearings.

Ideal Applications: Stock Carts, Platform Trucks, Garbage Bins, Wire Shelving Units, Heavy Service Equipment & Factory Applications.

Additional information

Wheel Diameter	4" - 8"
Wheel Type	ALThane™, Balloon Cushion, Ductile Iron Crowned, Envirothane™, Envirothane™ Crowned, Flat Free, High Tempurature Phenolic, Lava™, Moldon Alum. Rubber, Moldon Alum. Urethane, Moldon Poly. Urethane, Moldon Rubber, Moldon Urethane, Moldon Urethane Crowned, Nyroll™, Polyolefin, Protech™ Crowned, Protech™ Flat, Purthane™, RollX™, Semi Steel, Solid Steel, V Groove
Bushing	Roller Bearings with Drilled Hardened Steel Spanner Bushing & Plastic Side Washers
Bearings	Ball Bearing, Bronze Bearing, Caged Roller Bearing, Delrin Bearing, Nylon Roller Bearing, Precision Ball Bearing
Leg Spacing	2 1/2"
Axle & Nut	1/2" Zerk Axle & Lock Nut
Kingpin	5/8" Diameter Nut & Bolt Coined
Raceway	5/16" Diameter Upper Raceway, 1/4" Diameter Lower Raceway, Hardened Steel Load Bearings
Lubrication	Grease Nipple in Lower Race
Plates	A38H
Finish	Corrosion Resistant Bright Zinc

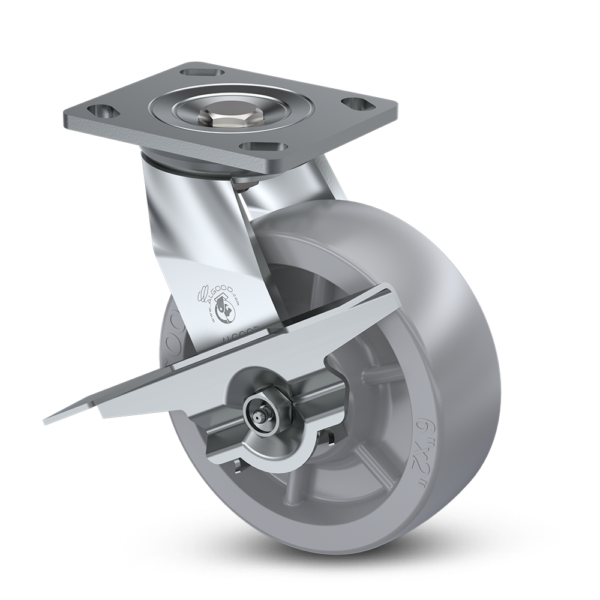

Brakes	4 Position Swivel Lock, ALGrip, Side Locking Brake, Thumb Screw Brake, Top Locking Brake, Universal Wheel Brake, Wheel Only iLock
Options	Double Welding, Heat-Treated Side Washer, Raceway Seal, Steel Side Washer, Thread Guards, Zerk Axle

STANDARD PLATE: A38H

STANDARD PLATE: A38H

ALThane™ (ALT)	Balloon Cushion™ (BARG)	Ductile Iron Crowned (DIC)	Flat Free (FF)	Moldon Alum. Rubber (MAR)
Moldon Alum. Urethane (MAU)	Moldon Poly. Urethane (MPU)	Moldon Rubber (MR)	Moldon Urethane (UR)	Moldon Urethane Crowned (URC)
NyRoll™ (NYNW)	High Temp. Phenolic (HTPH)	Polyolefin (POX)	Protect™ Flat (PROF)	Protect™ Crowned (PRO)
PurThane™ (PTN)	RollX™ WOW (RXW)	Lava™ (LV)	Semi Steel (ST)	Solid Steel (SS)
Envirothane™ (U)	Envirothane™ Crowned (UC)	V Groove (VG)

Diameter	Tread Width	Capacity (lbs)	Bearing Type	Swivel Radius	Overall Height	Wheel Type	Swivel	Caster Weight (lbs)	Rigid
4	2	400	Roller	3.563	5.625	Moldon Alum. Rubber	S7004-A38H-MAR-RB	4.01	R7004-A38H-MAR-RB
4	2	400	Roller	3.563	5.625	Moldon Rubber	S7004-A38H-MR-RB	5.51	R7004-A38H-MR-RB
4	2	400	Roller	3.563	5.625	ProTech™ Crown	S7004-A38H-PRO-RB	3.51	R7004-A38H-PRO-RB
4	2	550	Roller	3.563	5.625	Polyolefin	S7004-A38H-POX-RB	3.23	R7004-A38H-POX-RB
4	2	600	Roller	3.563	5.625	High Temp Phenolic (475°)	S7004-A38H-HTPH-RB	4.22	R7004-A38H-HTPH-RB
4	2	700	Roller	3.563	5.625	Moldon Poly. Urethane	S7004-A38H-MPU-RB	3.59	R7004-A38H-MPU-RB
4	2	700	Roller	3.563	5.625	Solid Steel	S7004-A38H-SS-RB	5.41	R7004-A38H-SS-RB
4	2	750	Roller	3.563	5.625	ALThane™	S7004-A38H-ALT-RB	3.43	R7004-A38H-ALT-RB
4	2	750	Roller	3.563	5.625	Lava™ (475°)	S7004-A38H-LV-RB	3.49	R7004-A38H-LV-RB
4	2	800	Roller	3.563	5.625	Moldon Alum. Urethane	S7004-A38H-MAU-RB	3.81	R7004-A38H-MAU-RB
4	2	800	Roller	3.563	5.625	Phenolic	S7004-A38H-PH-RB	3.82	R7004-A38H-PH-RB
4	2	800	Roller	3.563	5.625	RollX™	S7004-A38H-RX-RB	3.44	R7004-A38H-RX-RB
4	2	800	Roller	3.563	5.625	Moldon Urethane	S7004-A38H-UR-RB	5.11	R7004-A38H-UR-RB
4	2	800	Roller	3.563	5.625	Moldon Urethane Crown	S7004-A38H-URC-RB	5.23	R7004-A38H-URC-RB
4	2	900	Roller	3.563	5.625	Lava™-WOW (475°)	S7004-A38H-LVW-RB	3.70	R7004-A38H-LVW-RB
4	2	900	Precision	3.563	5.625	PurThane™	S7004-A38H-PTN-PB	3.75	R7004-A38H-PTN-PB
4	2	1,000	Roller	3.563	5.625	Nyroll™	S7004-A38H-NYNW-RB	3.59	R7004-A38H-NYNW-RB
4	2	1,000	Roller	3.563	5.625	Envirothane™	S7004-A38H-U-RB	3.63	R7004-A38H-U-RB
4	2	1,000	Precision	3.563	5.625	Envirothane™ Grey - PB	S7004-A38H-UG-PB	3.61	R7004-A38H-UG-PB
4	2	1,000	Roller	3.563	5.625	Envirothane™ Grey-WOW-RB	S7004-A38H-UGW-RB	3.63	R7004-A38H-UGW-RB
4	2	1,000	Roller	3.563	5.625	V Groove	S7004-A38H-VG-RB	6.43	R7004-A38H-VG-RB
4	2	1,250	Roller	3.563	5.625	RollX™-WOW	S7004-A38H-RXW-RB	3.70	R7004-A38H-RXW-RB
5	2	350	Ball	4.250	6.500	Alum. Rubber Grey	S7005-A38H-ARG-BB	4.75	R7005-A38H-ARG-BB
5	2	350	Roller	4.250	6.500	Soft Rubber	S7005-A38H-SR-RB	4.72	R7005-A38H-SR-RB
5	2	425	Roller	4.250	6.500	ProTech™ Crown	S7005-A38H-PRO-RB	3.93	R7005-A38H-PRO-RB
5	2	450	Roller	4.250	6.500	Moldon Rubber	S7005-A38H-MR-RB	5.61	R7005-A38H-MR-RB
5	2	500	Roller	4.250	6.500	Moldon Alum. Rubber	S7005-A38H-MAR-RB	4.39	R7005-A38H-MAR-RB
5	2	650	Roller	4.250	6.500	Polyolefin	S7005-A38H-POX-RB	3.44	R7005-A38H-POX-RB
5	2	750	Roller	4.250	6.500	High Temp Phenolic (475°)	S7005-A38H-HTPH-RB	4.49	R7005-A38H-HTPH-RB
5	2	800	Roller	4.250	6.500	Lava™ (475°)	S7005-A38H-LV-RB	3.78	R7005-A38H-LV-RB
5	2	900	Roller	4.250	6.500	Moldon Poly. Urethane	S7005-A38H-MPU-RB	4.17	R7005-A38H-MPU-RB
5	2	950	Roller	4.250	6.500	ALThane™	S7005-A38H-ALT-RB	3.79	R7005-A38H-ALT-RB
5	2	1,000	Roller	4.250	6.500	Moldon Alum. Urethane	S7005-A38H-MAU-RB	4.29	R7005-A38H-MAU-RB
5	2	1,000	Roller	4.250	6.500	Phenolic	S7005-A38H-PH-RB	4.39	R7005-A38H-PH-RB
5	2	1,000	Precision	4.250	6.500	PurThane™	S7005-A38H-PTN-PB	4.65	R7005-A38H-PTN-PB
5	2	1,000	Roller	4.250	6.500	RollX™	S7005-A38H-RX-RB	3.73	R7005-A38H-RX-RB
5	2	1,000	Roller	4.250	6.500	Solid Steel	S7005-A38H-SS-RB	6.43	R7005-A38H-SS-RB
5	2	1,000	Roller	4.250	6.500	Envirothane™	S7005-A38H-U-RB	4.19	R7005-A38H-U-RB
5	2	1,000	Precision	4.250	6.500	Envirothane™ Grey - PB	S7005-A38H-UG-PB	4.17	R7005-A38H-UG-PB
5	2	1,000	Roller	4.250	6.500	Envirothane™ Grey-WOW-RB	S7005-A38H-UGW-RB	4.19	R7005-A38H-UGW-RB
5	2	1,000	Roller	4.250	6.500	Lava™-WOW (475°)	S7005-A38H-LVW-RB	4.09	R7005-A38H-LVW-RB
5	2	1,100	Roller	4.250	6.500	Nyroll™	S7005-A38H-NYNW-RB	4.03	R7005-A38H-NYNW-RB
5	2	1,200	Roller	4.250	6.500	Moldon Urethane	S7005-A38H-UR-RB	6.23	R7005-A38H-UR-RB
5	2	1,200	Roller	4.250	6.500	Moldon Urethane Crown	S7005-A38H-URC-RB	5.53	R7005-A38H-URC-RB
5	2	1,200	Roller	4.250	6.500	Ductile Iron Crowned	S7005-A38H-DIC-RB	7.01	R7005-A38H-DIC-RB
5	2	1,250	Roller	4.250	6.500	RollX™-WOW	S7005-A38H-RXW-RB	4.09	R7005-A38H-RXW-RB
5	2	1,250	Roller	4.250	6.500	V Groove	S7005-A38H-VG-RB	7.45	R7005-A38H-VG-RB
6	2	275	Precision	5.000	7.500	Flat Free	S7006-A38H-FFC-PBB	4.27	R7006-A38H-FFC-PBB
6	2	450	Ball	5.000	7.500	Balloon Cushion Rubber Grey	S7006-A38H-BARG-BB	5.19	R7006-A38H-BARG-BB
6	2	450	Roller	5.000	7.500	ProTech™ Crown	S7006-A38H-PRO-RB	4.33	R7006-A38H-PRO-RB
6	2	500	Roller	5.000	7.500	Moldon Alum. Rubber	S7006-A38H-MAR-RB	5.01	R7006-A38H-MAR-RB
6	2	550	Roller	5.000	7.500	Moldon Rubber	S7006-A38H-MR-RB	6.69	R7006-A38H-MR-RB
6	2	600	Roller	5.000	7.500	ProTech™ Flat	S7006-A38H-PROF-RB	4.33	R7006-A38H-PROF-RB
6	2	800	Roller	5.000	7.500	Polyolefin	S7006-A38H-POX-RB	3.70	R7006-A38H-POX-RB
6	2	900	Roller	5.000	7.500	Moldon Poly. Urethane	S7006-A38H-MPU-RB	4.79	R7006-A38H-MPU-RB
6	2	900	Roller	5.000	7.500	High Temp Phenolic (475°)	S7006-A38H-HTPH-RB	5.39	R7006-A38H-HTPH-RB
6	2	950	Precision	5.000	7.500	Envirothane™ Grey Crowned	S7006-A38H-UGC-PB	4.69	R7006-A38H-UGC-PB
6	2	1,000	Precision	5.000	7.500	PurThane™	S7006-A38H-PTN-PB	5.36	R7006-A38H-PTN-PB
6	2	1,100	Roller	5.000	7.500	Lava™ (475°)	S7006-A38H-LV-RB	4.10	R7006-A38H-LV-RB
6	2	1,100	Roller	5.000	7.500	Envirothane™	S7006-A38H-U-RB	4.97	R7006-A38H-U-RB
6	2	1,100	Precision	5.000	7.500	Envirothane™ Grey - PB	S7006-A38H-UG-PB	4.74	R7006-A38H-UG-PB
6	2	1,100	Roller	5.000	7.500	Envirothane™ Grey-WOW-RB	S7006-A38H-UGW-RB	4.97	R7006-A38H-UGW-RB
6	2	1,150	Roller	5.000	7.500	ALThane™	S7006-A38H-ALT-RB	4.44	R7006-A38H-ALT-RB
6	2	1,150	Roller	5.000	7.500	ALThane™-WOW	S7006-A38H-ALTWOW-RB	4.44	R7006-A38H-ALTWOW-RB
6	2	1,200	Roller	5.000	7.500	Lava™-WOW (475°)	S7006-A38H-LVW-RB	4.63	R7006-A38H-LVW-RB
6	2	1,200	Roller	5.000	7.500	Moldon Alum. Urethane	S7006-A38H-MAU-RB	4.97	R7006-A38H-MAU-RB
6	2	1,200	Roller	5.000	7.500	Phenolic	S7006-A38H-PH-RB	5.29	R7006-A38H-PH-RB
6	2	1,200	Roller	5.000	7.500	RollX™	S7006-A38H-RX-RB	4.05	R7006-A38H-RX-RB
6	2	1,200	Roller	5.000	7.500	Solid Steel	S7006-A38H-SS-RB	7.67	R7006-A38H-SS-RB
6	2	1,250	Roller	5.000	7.500	Ductile Iron Crowned	S7006-A38H-DIC-RB	8.13	R7006-A38H-DIC-RB
6	2	1,250	Roller	5.000	7.500	Nyroll™	S7006-A38H-NYNW-RB	4.60	R7006-A38H-NYNW-RB
6	2	1,250	Precision	5.000	7.500	RollX™-WOW-PB	S7006-A38H-RXW-PB	4.93	R7006-A38H-RXW-PB
6	2	1,250	Roller	5.000	7.500	RollX™-WOW	S7006-A38H-RXW-RB	4.63	R7006-A38H-RXW-RB
6	2	1,250	Roller	5.000	7.500	Moldon Urethane	S7006-A38H-UR-RB	7.15	R7006-A38H-UR-RB
6	2	1,250	Roller	5.000	7.500	Moldon Urethane Crown	S7006-A38H-URC-RB	6.56	R7006-A38H-URC-RB
6	2	1,250	Roller	5.000	7.500	V Groove	S7006-A38H-VG-RB	8.79	R7006-A38H-VG-RB
8	2	280	Precision	6.500	9.500	Flat Free	S7008-A38H-FFC-PBB	4.57	R7008-A38H-FFC-PBB
8	2	550	Ball	6.500	9.500	Balloon Cushion Rubber Grey	S7008-A38H-BARG-BB	6.99	R7008-A38H-BARG-BB
8	2	600	Roller	6.500	9.500	Moldon Alum. Rubber	S7008-A38H-MAR-RB	6.13	R7008-A38H-MAR-RB
8	2	600	Roller	6.500	9.500	Moldon Rubber	S7008-A38H-MR-RB	8.75	R7008-A38H-MR-RB
8	2	600	Roller	6.500	9.500	ProTech™ Crown	S7008-A38H-PRO-RB	5.44	R7008-A38H-PRO-RB
8	2	675	Roller	6.500	9.500	ProTech™ Flat	S7008-A38H-PROF-RB	5.40	R7008-A38H-PROF-RB
8	2	900	Roller	6.500	9.500	Polyolefin	S7008-A38H-POX-RB	4.42	R7008-A38H-POX-RB
8	2	1,000	Roller	6.500	9.500	Moldon Poly. Urethane	S7008-A38H-MPU-RB	5.59	R7008-A38H-MPU-RB
8	2	1,100	Roller	6.500	9.500	High Temp Phenolic (475°)	S7008-A38H-HTPH-RB	6.97	R7008-A38H-HTPH-RB
8	2	1,100	Precision	6.500	9.500	Envirothane™ Grey Crowned	S7008-A38H-UGC-PB	6.15	R7008-A38H-UGC-PB
8	2	1,200	Roller	6.500	9.500	ALThane™	S7008-A38H-ALT-RB	5.27	R7008-A38H-ALT-RB
8	2	1,200	Roller	6.500	9.500	Lava™ (475°)	S7008-A38H-LV-RB	5.16	R7008-A38H-LV-RB
8	2	1,200	Precision	6.500	9.500	PurThane™	S7008-A38H-PTN-PB	7.13	R7008-A38H-PTN-PB
8	2	1,200	Roller	6.500	9.500	Envirothane™	S7008-A38H-U-RB	6.21	R7008-A38H-U-RB
8	2	1,200	Precision	6.500	9.500	Envirothane™ Grey - PB	S7008-A38H-UG-PB	6.19	R7008-A38H-UG-PB
8	2	1,200	Roller	6.500	9.500	Envirothane™ Grey-WOW-RB	S7008-A38H-UGW-RB	6.21	R7008-A38H-UGW-RB
8	2	1,250	Roller	6.500	9.500	Lava™-WOW (475°)	S7008-A38H-LVW-RB	5.52	R7008-A38H-LVW-RB
8	2	1,250	Roller	6.500	9.500	Moldon Alum. Urethane	S7008-A38H-MAU-RB	6.31	R7008-A38H-MAU-RB
8	2	1,250	Roller	6.500	9.500	Nyroll™	S7008-A38H-NYNW-RB	5.72	R7008-A38H-NYNW-RB
8	2	1,250	Roller	6.500	9.500	Phenolic	S7008-A38H-PH-RB	6.87	R7008-A38H-PH-RB
8	2	1,250	Roller	6.500	9.500	RollX™	S7008-A38H-RX-RB	5.11	R7008-A38H-RX-RB
8	2	1,250	Roller	6.500	9.500	RollX™-WOW	S7008-A38H-RXW-RB	5.52	R7008-A38H-RXW-RB
8	2	1,250	Roller	6.500	9.500	Solid Steel	S7008-A38H-SS-RB	10.31	R7008-A38H-SS-RB
8	2	1,250	Roller	6.500	9.500	Moldon Urethane	S7008-A38H-UR-RB	9.47	R7008-A38H-UR-RB
8	2	1,250	Roller	6.500	9.500	Moldon Urethane Crown	S7008-A38H-URC-RB	9.03	R7008-A38H-URC-RB
8	2	1,250	Roller	6.500	9.500	V Groove	S7008-A38H-VG-RB	13.41	R7008-A38H-VG-RB

Diameter

Tread Width

Capacity (lbs)

Bearing Type

Swivel Radius

Overall Height

Wheel Type

Swivel

Caster Weight (lbs)

Rigid

400

Roller

3.563

5.625

Moldon Alum. Rubber

S7004-A38H-MAR-RB

4.01

R7004-A38H-MAR-RB

400

Roller

3.563

5.625

Moldon Rubber

S7004-A38H-MR-RB

5.51

R7004-A38H-MR-RB

400

Roller

3.563

5.625

ProTech™ Crown

S7004-A38H-PRO-RB

3.51

R7004-A38H-PRO-RB

550

Roller

3.563

5.625

Polyolefin

S7004-A38H-POX-RB

3.23

R7004-A38H-POX-RB

600

Roller

3.563

5.625

High Temp Phenolic (475°)

S7004-A38H-HTPH-RB

4.22

R7004-A38H-HTPH-RB

700

Roller

3.563

5.625

Moldon Poly. Urethane

S7004-A38H-MPU-RB

3.59

R7004-A38H-MPU-RB

700

Roller

3.563

5.625

Solid Steel

S7004-A38H-SS-RB

5.41

R7004-A38H-SS-RB

750

Roller

3.563

5.625

ALThane™

S7004-A38H-ALT-RB

3.43

R7004-A38H-ALT-RB

750

Roller

3.563

5.625

Lava™ (475°)

S7004-A38H-LV-RB

3.49

R7004-A38H-LV-RB

800

Roller

3.563

5.625

Moldon Alum. Urethane

S7004-A38H-MAU-RB

3.81

R7004-A38H-MAU-RB

800

Roller

3.563

5.625

Phenolic

S7004-A38H-PH-RB

3.82

R7004-A38H-PH-RB

800

Roller

3.563

5.625

RollX™

S7004-A38H-RX-RB

3.44

R7004-A38H-RX-RB

800

Roller

3.563

5.625

Moldon Urethane

S7004-A38H-UR-RB

5.11

R7004-A38H-UR-RB

800

Roller

3.563

5.625

Moldon Urethane Crown

S7004-A38H-URC-RB

5.23

R7004-A38H-URC-RB

900

Roller

3.563

5.625

Lava™-WOW (475°)

S7004-A38H-LVW-RB

3.70

R7004-A38H-LVW-RB

900

Precision

3.563

5.625

PurThane™

S7004-A38H-PTN-PB

3.75

R7004-A38H-PTN-PB

1,000

Roller

3.563

5.625

Nyroll™

S7004-A38H-NYNW-RB

3.59

R7004-A38H-NYNW-RB

1,000

Roller

3.563

5.625

Envirothane™

S7004-A38H-U-RB

3.63

R7004-A38H-U-RB

1,000

Precision

3.563

5.625

Envirothane™ Grey - PB

S7004-A38H-UG-PB

3.61

R7004-A38H-UG-PB

1,000

Roller

3.563

5.625

Envirothane™ Grey-WOW-RB

S7004-A38H-UGW-RB

3.63

R7004-A38H-UGW-RB

1,000

Roller

3.563

5.625

V Groove

S7004-A38H-VG-RB

6.43

R7004-A38H-VG-RB

1,250

Roller

3.563

5.625

RollX™-WOW

S7004-A38H-RXW-RB

3.70

R7004-A38H-RXW-RB

350

Ball

4.250

6.500

Alum. Rubber Grey

S7005-A38H-ARG-BB

4.75

R7005-A38H-ARG-BB

350

Roller

4.250

6.500

Soft Rubber

S7005-A38H-SR-RB

4.72

R7005-A38H-SR-RB

425

Roller

4.250

6.500

ProTech™ Crown

S7005-A38H-PRO-RB

3.93

R7005-A38H-PRO-RB

450

Roller

4.250

6.500

Moldon Rubber

S7005-A38H-MR-RB

5.61

R7005-A38H-MR-RB

500

Roller

4.250

6.500

Moldon Alum. Rubber

S7005-A38H-MAR-RB

4.39

R7005-A38H-MAR-RB

650

Roller

4.250

6.500

Polyolefin

S7005-A38H-POX-RB

3.44

R7005-A38H-POX-RB

750

Roller

4.250

6.500

High Temp Phenolic (475°)

S7005-A38H-HTPH-RB

4.49

R7005-A38H-HTPH-RB

800

Roller

4.250

6.500

Lava™ (475°)

S7005-A38H-LV-RB

3.78

R7005-A38H-LV-RB

900

Roller

4.250

6.500

Moldon Poly. Urethane

S7005-A38H-MPU-RB

4.17

R7005-A38H-MPU-RB

950

Roller

4.250

6.500

ALThane™

S7005-A38H-ALT-RB

3.79

R7005-A38H-ALT-RB

1,000

Roller

4.250

6.500

Moldon Alum. Urethane

S7005-A38H-MAU-RB

4.29

R7005-A38H-MAU-RB

1,000

Roller

4.250

6.500

Phenolic

S7005-A38H-PH-RB

4.39

R7005-A38H-PH-RB

1,000

Precision

4.250

6.500

PurThane™

S7005-A38H-PTN-PB

4.65

R7005-A38H-PTN-PB

1,000

Roller

4.250

6.500

RollX™

S7005-A38H-RX-RB

3.73

R7005-A38H-RX-RB

1,000

Roller

4.250

6.500

Solid Steel

S7005-A38H-SS-RB

6.43

R7005-A38H-SS-RB

1,000

Roller

4.250

6.500

Envirothane™

S7005-A38H-U-RB

4.19

R7005-A38H-U-RB

1,000

Precision

4.250

6.500

Envirothane™ Grey - PB

S7005-A38H-UG-PB

4.17

R7005-A38H-UG-PB

1,000

Roller

4.250

6.500

Envirothane™ Grey-WOW-RB

S7005-A38H-UGW-RB

4.19

R7005-A38H-UGW-RB

1,000

Roller

4.250

6.500

Lava™-WOW (475°)

S7005-A38H-LVW-RB

4.09

R7005-A38H-LVW-RB

1,100

Roller

4.250

6.500

Nyroll™

S7005-A38H-NYNW-RB

4.03

R7005-A38H-NYNW-RB

1,200

Roller

4.250

6.500

Moldon Urethane

S7005-A38H-UR-RB

6.23

R7005-A38H-UR-RB

1,200

Roller

4.250

6.500

Moldon Urethane Crown

S7005-A38H-URC-RB

5.53

R7005-A38H-URC-RB

1,200

Roller

4.250

6.500

Ductile Iron Crowned

S7005-A38H-DIC-RB

7.01

R7005-A38H-DIC-RB

1,250

Roller

4.250

6.500

RollX™-WOW

S7005-A38H-RXW-RB

4.09

R7005-A38H-RXW-RB

1,250

Roller

4.250

6.500

V Groove

S7005-A38H-VG-RB

7.45

R7005-A38H-VG-RB

275

Precision

5.000

7.500

Flat Free

S7006-A38H-FFC-PBB

4.27

R7006-A38H-FFC-PBB

450

Ball

5.000

7.500

Balloon Cushion Rubber Grey

S7006-A38H-BARG-BB

5.19

R7006-A38H-BARG-BB

450

Roller

5.000

7.500

ProTech™ Crown

S7006-A38H-PRO-RB

4.33

R7006-A38H-PRO-RB

500

Roller

5.000

7.500

Moldon Alum. Rubber

S7006-A38H-MAR-RB

5.01

R7006-A38H-MAR-RB

550

Roller

5.000

7.500

Moldon Rubber

S7006-A38H-MR-RB

6.69

R7006-A38H-MR-RB

600

Roller

5.000

7.500

ProTech™ Flat

S7006-A38H-PROF-RB

4.33

R7006-A38H-PROF-RB

800

Roller

5.000

7.500

Polyolefin

S7006-A38H-POX-RB

3.70

R7006-A38H-POX-RB

900

Roller

5.000

7.500

Moldon Poly. Urethane

S7006-A38H-MPU-RB

4.79

R7006-A38H-MPU-RB

900

Roller

5.000

7.500

High Temp Phenolic (475°)

S7006-A38H-HTPH-RB

5.39

R7006-A38H-HTPH-RB

950

Precision

5.000

7.500

Envirothane™ Grey Crowned

S7006-A38H-UGC-PB

4.69

R7006-A38H-UGC-PB

1,000

Precision

5.000

7.500

PurThane™

S7006-A38H-PTN-PB

5.36

R7006-A38H-PTN-PB

1,100

Roller

5.000

7.500

Lava™ (475°)

S7006-A38H-LV-RB

4.10

R7006-A38H-LV-RB

1,100

Roller

5.000

7.500

Envirothane™

S7006-A38H-U-RB

4.97

R7006-A38H-U-RB

1,100

Precision

5.000

7.500

Envirothane™ Grey - PB

S7006-A38H-UG-PB

4.74

R7006-A38H-UG-PB

1,100

Roller

5.000

7.500

Envirothane™ Grey-WOW-RB

S7006-A38H-UGW-RB

4.97

R7006-A38H-UGW-RB

1,150

Roller

5.000

7.500

ALThane™

S7006-A38H-ALT-RB

4.44

R7006-A38H-ALT-RB

1,150

Roller

5.000

7.500

ALThane™-WOW

S7006-A38H-ALTWOW-RB

4.44

R7006-A38H-ALTWOW-RB

1,200

Roller

5.000

7.500

Lava™-WOW (475°)

S7006-A38H-LVW-RB

4.63

R7006-A38H-LVW-RB

1,200

Roller

5.000

7.500

Moldon Alum. Urethane

S7006-A38H-MAU-RB

4.97

R7006-A38H-MAU-RB

1,200

Roller

5.000

7.500

Phenolic

S7006-A38H-PH-RB

5.29

R7006-A38H-PH-RB

1,200

Roller

5.000

7.500

RollX™

S7006-A38H-RX-RB

4.05

R7006-A38H-RX-RB

1,200

Roller

5.000

7.500

Solid Steel

S7006-A38H-SS-RB

7.67

R7006-A38H-SS-RB

1,250

Roller

5.000

7.500

Ductile Iron Crowned

S7006-A38H-DIC-RB

8.13

R7006-A38H-DIC-RB

1,250

Roller

5.000

7.500

Nyroll™

S7006-A38H-NYNW-RB

4.60

R7006-A38H-NYNW-RB

1,250

Precision

5.000

7.500

RollX™-WOW-PB

S7006-A38H-RXW-PB

4.93

R7006-A38H-RXW-PB

1,250

Roller

5.000

7.500

RollX™-WOW

S7006-A38H-RXW-RB

4.63

R7006-A38H-RXW-RB

1,250

Roller

5.000

7.500

Moldon Urethane

S7006-A38H-UR-RB

7.15

R7006-A38H-UR-RB

1,250

Roller

5.000

7.500

Moldon Urethane Crown

S7006-A38H-URC-RB

6.56

R7006-A38H-URC-RB

1,250

Roller

5.000

7.500

V Groove

S7006-A38H-VG-RB

8.79

R7006-A38H-VG-RB

280

Precision

6.500

9.500

Flat Free

S7008-A38H-FFC-PBB

4.57

R7008-A38H-FFC-PBB

550

Ball

6.500

9.500

Balloon Cushion Rubber Grey

S7008-A38H-BARG-BB

6.99

R7008-A38H-BARG-BB

600

Roller

6.500

9.500

Moldon Alum. Rubber

S7008-A38H-MAR-RB

6.13

R7008-A38H-MAR-RB

600

Roller

6.500

9.500

Moldon Rubber

S7008-A38H-MR-RB

8.75

R7008-A38H-MR-RB

600

Roller

6.500

9.500

ProTech™ Crown

S7008-A38H-PRO-RB

5.44

R7008-A38H-PRO-RB

675

Roller

6.500

9.500

ProTech™ Flat

S7008-A38H-PROF-RB

5.40

R7008-A38H-PROF-RB

900

Roller

6.500

9.500

Polyolefin

S7008-A38H-POX-RB

4.42

R7008-A38H-POX-RB

1,000

Roller

6.500

9.500

Moldon Poly. Urethane

S7008-A38H-MPU-RB

5.59

R7008-A38H-MPU-RB

1,100

Roller

6.500

9.500

High Temp Phenolic (475°)

S7008-A38H-HTPH-RB

6.97

R7008-A38H-HTPH-RB

1,100

Precision

6.500

9.500

Envirothane™ Grey Crowned

S7008-A38H-UGC-PB

6.15

R7008-A38H-UGC-PB

1,200

Roller

6.500

9.500

ALThane™

S7008-A38H-ALT-RB

5.27

R7008-A38H-ALT-RB

1,200

Roller

6.500

9.500

Lava™ (475°)

S7008-A38H-LV-RB

5.16

R7008-A38H-LV-RB

1,200

Precision

6.500

9.500

PurThane™

S7008-A38H-PTN-PB

7.13

R7008-A38H-PTN-PB

1,200

Roller

6.500

9.500

Envirothane™

S7008-A38H-U-RB

6.21

R7008-A38H-U-RB

1,200

Precision

6.500

9.500

Envirothane™ Grey - PB

S7008-A38H-UG-PB

6.19

R7008-A38H-UG-PB

1,200

Roller

6.500

9.500

Envirothane™ Grey-WOW-RB

S7008-A38H-UGW-RB

6.21

R7008-A38H-UGW-RB

1,250

Roller

6.500

9.500

Lava™-WOW (475°)

S7008-A38H-LVW-RB

5.52

R7008-A38H-LVW-RB

1,250

Roller

6.500

9.500

Moldon Alum. Urethane

S7008-A38H-MAU-RB

6.31

R7008-A38H-MAU-RB

1,250

Roller

6.500

9.500

Nyroll™

S7008-A38H-NYNW-RB

5.72

R7008-A38H-NYNW-RB

1,250

Roller

6.500

9.500

Phenolic

S7008-A38H-PH-RB

6.87

R7008-A38H-PH-RB

1,250

Roller

6.500

9.500

RollX™

S7008-A38H-RX-RB

5.11

R7008-A38H-RX-RB

1,250

Roller

6.500

9.500

RollX™-WOW

S7008-A38H-RXW-RB

5.52

R7008-A38H-RXW-RB

1,250

Roller

6.500

9.500

Solid Steel

S7008-A38H-SS-RB

10.31

R7008-A38H-SS-RB

1,250

Roller

6.500

9.500

Moldon Urethane

S7008-A38H-UR-RB

9.47

R7008-A38H-UR-RB

1,250

Roller

6.500

9.500

Moldon Urethane Crown

S7008-A38H-URC-RB

9.03

R7008-A38H-URC-RB

1,250

Roller

6.500

9.500

V Groove

S7008-A38H-VG-RB

13.41

R7008-A38H-VG-RB

7000 Series

7000 Series

Description

Additional information

1,200 LBS

MAXX9™ Series

MAXX9™ Series

1,500 LBS

6803 Series

6803 Series

1,500 LBS

SL6803 Series

SL6803 Series

2,000 LBS

Go Low Series

Go Low Series

1,250 LBS

7003 Series

7003 Series

1,250 LBS

7009 Series

7009 Series

7000 Series Specifications & Part Numbers

7000 Series

7000 Series

Description

Additional information

Related products

1,200 LBS

MAXX9™ Series

MAXX9™ Series

1,500 LBS

6803 Series

6803 Series

1,500 LBS

SL6803 Series

SL6803 Series

2,000 LBS

Go Low Series

Go Low Series

1,250 LBS

7003 Series

7003 Series

1,250 LBS

7009 Series

7009 Series

7000 Series Specifications & Part Numbers
