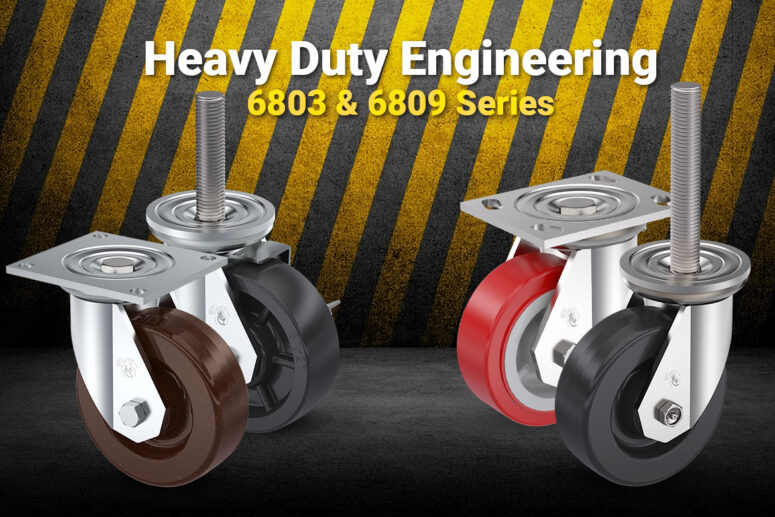

Product Spotlight: 6803 & 6809 Caster Series

Heavy Duty Engineering

125 Views

With up to 1,500 lbs. of brute strength, our 6803 and 6809 Series casters were built to perform and can take on just about any heavy-duty application. Featuring legs that are 2-1/2” wide, which is 1/2” wider than those on most other casters, these series are a true feat of engineering.

6803 Series

A number of features contribute to the durability of the 6803. Wider legs provide more contact with the washer. These casters are stamped, and then work hardened, adding to their durability. Finally, the 3/4” kingpin makes them incredibly sturdy.

This caster also features outstanding versatility, including diameters that range from 4” to 8” with 2” tread widths. A hard-to-find 2-1/2” width, with double welded legs, is available on 6” and 8” casters. 10” and 12” diameters are also available on request. While the standard overall height is 9-1/2”, a 9-3/4” version can be ordered. The 6803 can be produced with a wide range of wheels, brakes, stems, bearings and plates.

6809 Series

There’s also a stainless-steel version of this caster – the 6809. It’s made from work-hardened, electro-polished, de-magnetized and de-burred SAE 304 stainless steel. The 6809 is a complete stainless-steel caster including the axle, bearings and raceway balls.

NSF-Approved, this caster is corrosion resistant, moisture friendly and perfect for healthcare, pharmaceutical, food production, server-rooms and other clean applications.

North American Manufacturing

These casters are produced in our fully integrated manufacturing facility in Toronto. That means you get outstanding lead times, delivery dates you can depend on and trusted North American quality backed by our 3-year No-Excuse Warranty.

With their brute strength and awesome versatility, the 6803 and 6809 casters are must-haves for just about any heavy-duty application.  Find out more about how these outstanding casters can meet your needs or the needs of your customers. Speak to your local Algood representative, contact a member of our customer service team or request a quote.


Algood is proud to manufacture its casters and wheels right here in North America. With our fully integrated manufacturing facility in Toronto, we are leaders in quality and innovation. For more information about Algood Casters, Call: 1-800-254-6633 or Email: Service@Algood.com
