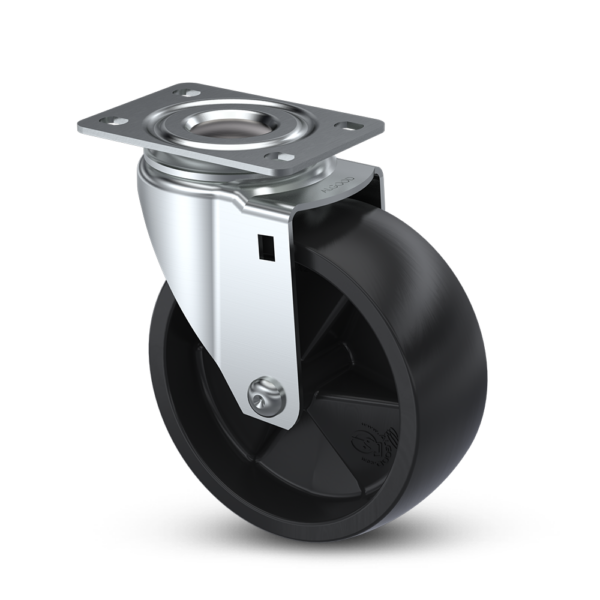

5300 Series

Description

Excellent for: Housekeeping & Linen Carts, Kitchen Dollies, Bakery Equipment, Hospital & Medical Equipment, Store Fixtures, Medium Duty Uses, Stock Trucks, Mobile Warehousing Equipment Institutional Uses.

Inquires on additional finishes for the 5300 Series are always welcome.

Additional information

Wheel Diameter	4" - 6"
Wheel Type	ALThane™, Envirothane™, Envirothane™ Crowned, Lava™, Moldon Alum. Rubber, Moldon Alum. Urethane, Moldon Poly. Urethane, Moldon Rubber, Moldon Urethane, Moldon Urethane Crowned, Nyroll™, Phenolic, Polyolefin, Protech™ Crowned, Protech™ Flat, Retort™, RollX™, Soft Rubber, Solid Steel, V Groove
Bushing	Roller Bearing with Drilled & Hardened Steel Spanner Bushing & Side Washers
Bearings	Caged Roller Bearing, Delrin Bearing, Nylon Roller Bearing, Precision Ball Bearing
Leg Spacing	2 1/4"
Axle & Nut	3/8" Axle & Lock Nut
Kingpin	9/16" Diameter Coined Rivet
Raceway	1/4" Diameter Upper & Lower Raceway with Hardened Steel Load Bearings
Stems	Expandable Round Stems, Expandable Square Stems, Round Stems, Threaded Stems
Plates	A27D, A31D, A33D, A38F, A39F, C57D
Finish	Corrosion Resistant Bright Zinc
Brakes	Top Locking Brake
Options	Bolt Hole, Heat Treated Yoke, Heat-Treated Side Washer, Raceway Seal, Thread Guards, Zerk Axle

STANDARD SWIVEL PLATE: A27D	OPTIONAL PLATE: A31D

OPTIONAL PLATE: A33D	OPTIONAL PLATE: A38F

OPTIONAL PLATE: A39F	OPTIONAL PLATE: C57D

Expandable Round Stem
***	Diameter	Length	Type
3/4RDEXP	3/4"	1 3/8"	Rubber
7/8RDEXP	7/8"	1 3/8"	Rubber
1RDEXP	1"	1 1/4"	Rubber
1 1/8RDEXP	1 1/8"	1 1/4"	Rubber
1 3/8RDEXP	1 3/8"	1 1/4"	Rubber
1 1/2RDEXP	1 1/2"	1 1/4"	Rubber
Expandable Square Stem
***	Diameter	Length	Type
3/4SQEXP	3/4"	1 3/8"	Rubber
7/8SQEXP	7/8"	1 3/8"	Rubber
1SQEXP	1"	1 1/4"	Rubber
1 1/8SQEXP	1 1/8"	1 1/4"	Rubber
1 3/8SQEXP	1 3/8"	1 1/4"	Rubber
1 1/4SQEXP	1 1/4"	1 1/4"	Rubber
1 1/2SQEXP	1 1/2"	1 1/4"	Rubber
Round Stems
***	Diameter	Length	Type
500 X 4	1/2"	4"	Plain
625 X 4	5/8"	4"	Plain
750 X 4	3/4"	4"	Plain
875 X 4	7/8"	4"	Plain
1.000 X 4	1"	4"	Plain
1.375 X 4	1 3/8"	4"	Plain
Threaded Stems
***	Diameter	Thread Size	Length
1/2-13X4HO	1/2"	4"	NC
5/8-11X4HO	5/8"	4"	NC
3/4-10X4HO	3/4"	4"	NC
7/8-9X4HO	7/8"	4"	NC
1-8X4HO	1"	4"	NC
Bolt Holes
***		Diameter
3/8HOLE		3/8"
7/16HOLE		7/16"
1/2HOLE		1/2"
5/8HOLE		5/8"

ALThane™ (ALT)	Moldon Rubber (MR)	Envirothane™ (U)	Envirothane™ Crowned (UC)	Moldon Alum. Urethane (MAU)
Moldon Alum. Rubber (MAR)	Moldon Poly. Urethane (MPU)	Moldon Urethane (UR)	Moldon Urethane Crowned (URC)	NyRoll™ (NYNW)
Phenolic (PH)	Polyolefin (POX)	Protect™ Flat (PROF)	Protect™ Crowned (PRO)	Retort™ (RET)
Lava™ (LV)	RollX™(RX)	Soft Rubber (SR)	Ductile Iron Crowned (DIC)	Solid Steel (SS)
V Groove (VG)

Diameter	Tread Width	Capacity (lbs)	Bearing Type	Swivel Radius	Overall Height	Wheel Type	Swivel	Caster Weight (lbs)	Rigid
4	2	400	Roller	3.375	5	Moldon Alum. Rubber	S5343-***-MAR-RB	2.37	R5343-***-MAR-RB
4	2	400	Roller	3.375	5	Moldon Poly. Urethane	S5343-***-MPU-RB	1.95	R5343-***-MPU-RB
4	2	400	Roller	3.375	5	Moldon Rubber	S5343-***-MR-RB	3.87	R5343-***-MR-RB
4	2	400	Roller	3.375	5	ProTech™ Crown	S5343-***-PRO-RB	1.87	R5343-***-PRO-RB
4	2	450	Roller	3.375	5	ALThane™	S5343-***-ALT-RB	1.79	R5343-***-ALT-RB
4	2	450	Roller	3.375	5	High Temp Phenolic (475°F)	S5343-***-HTPH-RB	2.48	R5343-***-HTPH-RB
4	2	450	Roller	3.375	5	Lava™ (475°F)	S5343-***-LV-RB	1.80	R5343-***-LV-RB
4	2	450	Roller	3.375	5	Lava™-WOW (475°F)	S5343-***-LVW-RB	2.06	R5343-***-LVW-RB
4	2	450	Roller	3.375	5	Moldon Alum. Urethane	S5343-***-MAU-RB	2.17	R5343-***-MAU-RB
4	2	450	Roller	3.375	5	Nyroll™	S5343-***-NYNW-RB	1.95	R5343-***-NYNW-RB
4	2	450	Roller	3.375	5	Phenolic	S5343-***-PH-RB	2.18	R5343-***-PH-RB
4	2	450	Roller	3.375	5	Polyolefin	S5343-***-POX-RB	1.59	R5343-***-POX-RB
4	2	450	Roller	3.375	5	Retort-WOW	S5343-***-RETW-RB	1.81	R5343-***-RETW-RB
4	2	450	Roller	3.375	5	RollX™	S5343-***-RX-RB	1.80	R5343-***-RX-RB
4	2	450	Roller	3.375	5	RollX™-WOW	S5343-***-RXW-RB	2.06	R5343-***-RXW-RB
4	2	450	Roller	3.375	5	Solid Steel	S5343-***-SS-RB	3.77	R5343-***-SS-RB
4	2	450	Roller	3.375	5	Envirothane™	S5343-***-U-RB	2.00	R5343-***-U-RB
4	2	450	Roller	3.375	5	Envirothane™ Grey-WOW-RB	S5343-***-UGW-RB	2.00	R5343-***-UGW-RB
4	2	450	Roller	3.375	5	Moldon Urethane	S5343-***-UR-RB	3.47	R5343-***-UR-RB
4	2	450	Roller	3.375	5	Moldon Urethane Crown	S5343-***-URC-RB	3.59	R5343-***-URC-RB
4	2	450	Roller	3.375	5	V Groove	S5343-***-VG-RB	4.79	R5343-***-VG-RB
5	2	350	Steel	4.000	6	Soft Rubber	S5353-***-SR	2.80	R5353-***-SR
5	2	350	Roller	4.000	6	Soft Rubber	S5353-***-SR-RB	3.02	R5353-***-SR-RB
5	2	425	Roller	4.000	6	ProTech™ Crown	S5353-***-PRO-RB	2.23	R5353-***-PRO-RB
5	2	425	Roller	4.000	6	Moldon Poly. Urethane	S5353-***-MPU-RB	2.47	R5353-***-MPU-RB
5	2	450	Roller	4.000	6	ALThane™	S5353-***-ALT-RB	2.09	R5353-***-ALT-RB
5	2	450	Roller	4.000	6	Ductile Iron Crowned	S5353-***-DIC-RB	5.31	R5353-***-DIC-RB
5	2	450	Roller	4.000	6	High Temp Phenolic (475°F)	S5353-***-HTPH-RB	2.69	R5353-***-HTPH-RB
5	2	450	Roller	4.000	6	Lava™ (475°F)	S5353-***-LV-RB	2.03	R5353-***-LV-RB
5	2	450	Roller	4.000	6	Lava™-WOW (475°F)	S5353-***-LVW-RB	2.39	R5353-***-LVW-RB
5	2	450	Roller	4.000	6	Moldon Alum. Rubber	S5353-***-MAR-RB	2.69	R5353-***-MAR-RB
5	2	450	Roller	4.000	6	Moldon Alum. Urethane	S5353-***-MAU-RB	2.59	R5353-***-MAU-RB
5	2	450	Roller	4.000	6	Moldon Rubber	S5353-***-MR-RB	3.91	R5353-***-MR-RB
5	2	450	Roller	4.000	6	Nyroll™	S5353-***-NYNW-RB	2.33	R5353-***-NYNW-RB
5	2	450	Roller	4.000	6	Phenolic	S5353-***-PH-RB	2.69	R5353-***-PH-RB
5	2	450	Roller	4.000	6	Polyolefin	S5353-***-POX-RB	1.74	R5353-***-POX-RB
5	2	450	Roller	4.000	6	Retort-WOW	S5353-***-RETW-RB	2.03	R5353-***-RETW-RB
5	2	450	Roller	4.000	6	RollX™	S5353-***-RX-RB	2.03	R5353-***-RX-RB
5	2	450	Roller	4.000	6	RollX™-WOW	S5353-***-RXW-RB	2.39	R5353-***-RXW-RB
5	2	450	Roller	4.000	6	Solid Steel	S5353-***-SS-RB	4.73	R5353-***-SS-RB
5	2	450	Roller	4.000	6	Envirothane™	S5353-***-U-RB	2.49	R5353-***-U-RB
5	2	450	Roller	4.000	6	Envirothane™ Grey-WOW-RB	S5353-***-UGW-RB	2.49	R5353-***-UGW-RB
5	2	450	Roller	4.000	6	Moldon Urethane	S5353-***-UR-RB	4.53	R5353-***-UR-RB
5	2	450	Roller	4.000	6	Moldon Urethane Crown	S5353-***-URC-RB	3.83	R5353-***-URC-RB
5	2	450	Roller	4.000	6	V Groove	S5353-***-VG-RB	5.75	R5353-***-VG-RB
6	2	450	Roller	4.625	7	ALThane™	S5363-***-ALT-RB	2.75	R5363-***-ALT-RB
6	2	450	Roller	4.625	7	ALThane™-WOW	S5363-***-ALTWOW-RB	2.75	R5363-***-ALTWOW-RB
6	2	450	Roller	4.625	7	Ductile Iron Crowned	S5363-***-DIC-RB	6.44	R5363-***-DIC-RB
6	2	450	Roller	4.625	7	High Temp Phenolic (475°F)	S5363-***-HTPH-RB	3.60	R5363-***-HTPH-RB
6	2	450	Roller	4.625	7	Lava™ (475°F)	S5363-***-LV-RB	2.36	R5363-***-LV-RB
6	2	450	Roller	4.625	7	Lava™-WOW (475°F)	S5363-***-LVW-RB	2.66	R5363-***-LVW-RB
6	2	450	Roller	4.625	7	Moldon Alum. Rubber	S5363-***-MAR-RB	3.32	R5363-***-MAR-RB
6	2	450	Roller	4.625	7	Moldon Alum. Urethane	S5363-***-MAU-RB	3.28	R5363-***-MAU-RB
6	2	450	Roller	4.625	7	Moldon Poly. Urethane	S5363-***-MPU-RB	3.10	R5363-***-MPU-RB
6	2	450	Roller	4.625	7	Moldon Rubber	S5363-***-MR-RB	5.00	R5363-***-MR-RB
6	2	450	Roller	4.625	7	Nyroll™	S5363-***-NYNW-RB	2.91	R5363-***-NYNW-RB
6	2	450	Roller	4.625	7	Phenolic	S5363-***-PH-RB	3.60	R5363-***-PH-RB
6	2	450	Roller	4.625	7	Polyolefin	S5363-***-POX-RB	2.01	R5363-***-POX-RB
6	2	450	Roller	4.625	7	ProTech™ Crown	S5363-***-PRO-RB	2.64	R5363-***-PRO-RB
6	2	450	Roller	4.625	7	ProTech™ Flat	S5363-***-PROF-RB	2.64	R5363-***-PROF-RB
6	2	450	Roller	4.625	7	Retort-WOW	S5363-***-RETW-RB	2.36	R5363-***-RETW-RB
6	2	450	Roller	4.625	7	RollX™	S5363-***-RX-RB	2.36	R5363-***-RX-RB
6	2	450	Roller	4.625	7	RollX™-WOW	S5363-***-RXW-RB	2.66	R5363-***-RXW-RB
6	2	450	Roller	4.625	7	Solid Steel	S5363-***-SS-RB	5.98	R5363-***-SS-RB
6	2	450	Roller	4.625	7	Envirothane™	S5363-***-U-RB	3.28	R5363-***-U-RB
6	2	450	Roller	4.625	7	Envirothane™ Grey-WOW-RB	S5363-***-UGW-RB	3.28	R5363-***-UGW-RB
6	2	450	Precision	4.625	7	Envirothane™ Grey Crowned- PB	S5363-***-UGC-PB	3.00	R5363-***-UGC-PB
6	2	450	Roller	4.625	7	Moldon Urethane	S5363-***-UR-RB	5.46	R5363-***-UR-RB
6	2	450	Roller	4.625	7	Moldon Urethane Crown	S5363-***-URC-RB	4.87	R5363-***-URC-RB
6	2	450	Roller	4.625	7	V Groove	S5363-***-VG-RB	7.10	R5363-***-VG-RB

Diameter

Tread Width

Capacity (lbs)

Bearing Type

Swivel Radius

Overall Height

Wheel Type

Swivel

Caster Weight (lbs)

Rigid

400

Roller

3.375

Moldon Alum. Rubber

S5343-***-MAR-RB

2.37

R5343-***-MAR-RB

400

Roller

3.375

Moldon Poly. Urethane

S5343-***-MPU-RB

1.95

R5343-***-MPU-RB

400

Roller

3.375

Moldon Rubber

S5343-***-MR-RB

3.87

R5343-***-MR-RB

400

Roller

3.375

ProTech™ Crown

S5343-***-PRO-RB

1.87

R5343-***-PRO-RB

450

Roller

3.375

ALThane™

S5343-***-ALT-RB

1.79

R5343-***-ALT-RB

450

Roller

3.375

High Temp Phenolic (475°F)

S5343-***-HTPH-RB

2.48

R5343-***-HTPH-RB

450

Roller

3.375

Lava™ (475°F)

S5343-***-LV-RB

1.80

R5343-***-LV-RB

450

Roller

3.375

Lava™-WOW (475°F)

S5343-***-LVW-RB

2.06

R5343-***-LVW-RB

450

Roller

3.375

Moldon Alum. Urethane

S5343-***-MAU-RB

2.17

R5343-***-MAU-RB

450

Roller

3.375

Nyroll™

S5343-***-NYNW-RB

1.95

R5343-***-NYNW-RB

450

Roller

3.375

Phenolic

S5343-***-PH-RB

2.18

R5343-***-PH-RB

450

Roller

3.375

Polyolefin

S5343-***-POX-RB

1.59

R5343-***-POX-RB

450

Roller

3.375

Retort-WOW

S5343-***-RETW-RB

1.81

R5343-***-RETW-RB

450

Roller

3.375

RollX™

S5343-***-RX-RB

1.80

R5343-***-RX-RB

450

Roller

3.375

RollX™-WOW

S5343-***-RXW-RB

2.06

R5343-***-RXW-RB

450

Roller

3.375

Solid Steel

S5343-***-SS-RB

3.77

R5343-***-SS-RB

450

Roller

3.375

Envirothane™

S5343-***-U-RB

2.00

R5343-***-U-RB

450

Roller

3.375

Envirothane™ Grey-WOW-RB

S5343-***-UGW-RB

2.00

R5343-***-UGW-RB

450

Roller

3.375

Moldon Urethane

S5343-***-UR-RB

3.47

R5343-***-UR-RB

450

Roller

3.375

Moldon Urethane Crown

S5343-***-URC-RB

3.59

R5343-***-URC-RB

450

Roller

3.375

V Groove

S5343-***-VG-RB

4.79

R5343-***-VG-RB

350

Steel

4.000

Soft Rubber

S5353-***-SR

2.80

R5353-***-SR

350

Roller

4.000

Soft Rubber

S5353-***-SR-RB

3.02

R5353-***-SR-RB

425

Roller

4.000

ProTech™ Crown

S5353-***-PRO-RB

2.23

R5353-***-PRO-RB

425

Roller

4.000

Moldon Poly. Urethane

S5353-***-MPU-RB

2.47

R5353-***-MPU-RB

450

Roller

4.000

ALThane™

S5353-***-ALT-RB

2.09

R5353-***-ALT-RB

450

Roller

4.000

Ductile Iron Crowned

S5353-***-DIC-RB

5.31

R5353-***-DIC-RB

450

Roller

4.000

High Temp Phenolic (475°F)

S5353-***-HTPH-RB

2.69

R5353-***-HTPH-RB

450

Roller

4.000

Lava™ (475°F)

S5353-***-LV-RB

2.03

R5353-***-LV-RB

450

Roller

4.000

Lava™-WOW (475°F)

S5353-***-LVW-RB

2.39

R5353-***-LVW-RB

450

Roller

4.000

Moldon Alum. Rubber

S5353-***-MAR-RB

2.69

R5353-***-MAR-RB

450

Roller

4.000

Moldon Alum. Urethane

S5353-***-MAU-RB

2.59

R5353-***-MAU-RB

450

Roller

4.000

Moldon Rubber

S5353-***-MR-RB

3.91

R5353-***-MR-RB

450

Roller

4.000

Nyroll™

S5353-***-NYNW-RB

2.33

R5353-***-NYNW-RB

450

Roller

4.000

Phenolic

S5353-***-PH-RB

2.69

R5353-***-PH-RB

450

Roller

4.000

Polyolefin

S5353-***-POX-RB

1.74

R5353-***-POX-RB

450

Roller

4.000

Retort-WOW

S5353-***-RETW-RB

2.03

R5353-***-RETW-RB

450

Roller

4.000

RollX™

S5353-***-RX-RB

2.03

R5353-***-RX-RB

450

Roller

4.000

RollX™-WOW

S5353-***-RXW-RB

2.39

R5353-***-RXW-RB

450

Roller

4.000

Solid Steel

S5353-***-SS-RB

4.73

R5353-***-SS-RB

450

Roller

4.000

Envirothane™

S5353-***-U-RB

2.49

R5353-***-U-RB

450

Roller

4.000

Envirothane™ Grey-WOW-RB

S5353-***-UGW-RB

2.49

R5353-***-UGW-RB

450

Roller

4.000

Moldon Urethane

S5353-***-UR-RB

4.53

R5353-***-UR-RB

450

Roller

4.000

Moldon Urethane Crown

S5353-***-URC-RB

3.83

R5353-***-URC-RB

450

Roller

4.000

V Groove

S5353-***-VG-RB

5.75

R5353-***-VG-RB

450

Roller

4.625

ALThane™

S5363-***-ALT-RB

2.75

R5363-***-ALT-RB

450

Roller

4.625

ALThane™-WOW

S5363-***-ALTWOW-RB

2.75

R5363-***-ALTWOW-RB

450

Roller

4.625

Ductile Iron Crowned

S5363-***-DIC-RB

6.44

R5363-***-DIC-RB

450

Roller

4.625

High Temp Phenolic (475°F)

S5363-***-HTPH-RB

3.60

R5363-***-HTPH-RB

450

Roller

4.625

Lava™ (475°F)

S5363-***-LV-RB

2.36

R5363-***-LV-RB

450

Roller

4.625

Lava™-WOW (475°F)

S5363-***-LVW-RB

2.66

R5363-***-LVW-RB

450

Roller

4.625

Moldon Alum. Rubber

S5363-***-MAR-RB

3.32

R5363-***-MAR-RB

450

Roller

4.625

Moldon Alum. Urethane

S5363-***-MAU-RB

3.28

R5363-***-MAU-RB

450

Roller

4.625

Moldon Poly. Urethane

S5363-***-MPU-RB

3.10

R5363-***-MPU-RB

450

Roller

4.625

Moldon Rubber

S5363-***-MR-RB

5.00

R5363-***-MR-RB

450

Roller

4.625

Nyroll™

S5363-***-NYNW-RB

2.91

R5363-***-NYNW-RB

450

Roller

4.625

Phenolic

S5363-***-PH-RB

3.60

R5363-***-PH-RB

450

Roller

4.625

Polyolefin

S5363-***-POX-RB

2.01

R5363-***-POX-RB

450

Roller

4.625

ProTech™ Crown

S5363-***-PRO-RB

2.64

R5363-***-PRO-RB

450

Roller

4.625

ProTech™ Flat

S5363-***-PROF-RB

2.64

R5363-***-PROF-RB

450

Roller

4.625

Retort-WOW

S5363-***-RETW-RB

2.36

R5363-***-RETW-RB

450

Roller

4.625

RollX™

S5363-***-RX-RB

2.36

R5363-***-RX-RB

450

Roller

4.625

RollX™-WOW

S5363-***-RXW-RB

2.66

R5363-***-RXW-RB

450

Roller

4.625

Solid Steel

S5363-***-SS-RB

5.98

R5363-***-SS-RB

450

Roller

4.625

Envirothane™

S5363-***-U-RB

3.28

R5363-***-U-RB

450

Roller

4.625

Envirothane™ Grey-WOW-RB

S5363-***-UGW-RB

3.28

R5363-***-UGW-RB

450

Precision

4.625

Envirothane™ Grey Crowned- PB

S5363-***-UGC-PB

3.00

R5363-***-UGC-PB

450

Roller

4.625

Moldon Urethane

S5363-***-UR-RB

5.46

R5363-***-UR-RB

450

Roller

4.625

Moldon Urethane Crown

S5363-***-URC-RB

4.87

R5363-***-URC-RB

450

Roller

4.625

V Groove

S5363-***-VG-RB

7.10

R5363-***-VG-RB

5300 Series

5300 Series

Description

Additional information

325 LBS

1900C Shopping Cart Series

1900C Shopping Cart Series

400 LBS

5200 Series

5200 Series

110 LBS

8300 Series

8300 Series

200 LBS

1000 Series

1000 Series

450 LBS

5000 Series

5000 Series

700 LBS

5400 Series

5400 Series

5300 Series Specifications & Part Numbers

5300 Series

5300 Series

Description

Additional information

Related products

325 LBS

1900C Shopping Cart Series

1900C Shopping Cart Series

400 LBS

5200 Series

5200 Series

110 LBS

8300 Series

8300 Series

200 LBS

1000 Series

1000 Series

450 LBS

5000 Series

5000 Series

700 LBS

5400 Series

5400 Series

5300 Series Specifications & Part Numbers
