6400 Series

Category: Tag:

This caster features a 1-1/2” tread width with a larger kingpin and raceway ball bearings. With a great array of options, these are extremely versatile casters.

Download Catalogue Page

Description

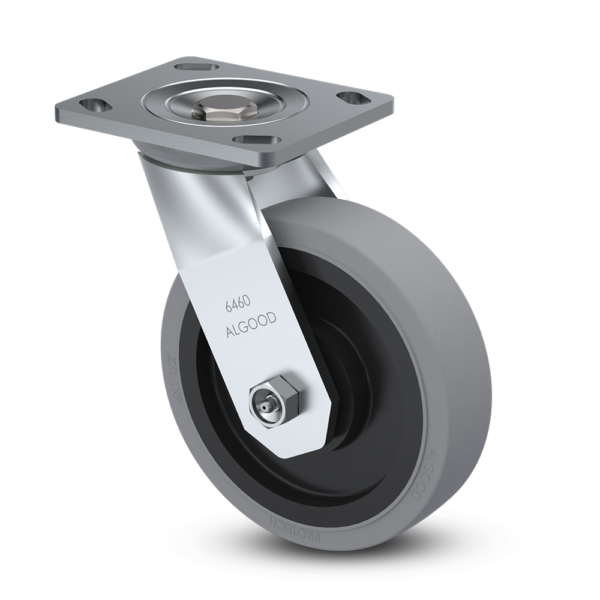

Algood’s 6400 Series Caster features a 1-1/2” tread width with a larger kingpin and raceway ball bearings. With a great array of options, these are extremely versatile casters.

The 6400 Series come with a double raceway construction to provide outstanding maneuverability. They feature a 5/16″ diameter upper race and a 1/4″ diameter lower race, both with hardened steel load bearings. The 9/16″ diameter kingpin is nut and bolt coined.

Options/Components: Available with a number of wheels including our RollX™, PurThane™ and Envirothane™. This caster comes with a large assortment of options including a variety of brakes and bearings.

Ideal Applications: Medium Duty Platform Trucks, Small Garbage Bins, Food Service Equipment, Hospitality Equipment & Large Stock Carts.

Additional information

Wheel Diameter
Wheel Type Envirothane™, Lava™, Moldon Alum. Rubber, Moldon Alum. Urethane, Moldon Poly. Urethane, Moldon Rubber, Moldon Urethane, Nyroll™, Phenolic, Polyolefin, Protech™ Flat, Purthane™, Retort™, RollX™, Solid Steel, V Groove
Bushing
Bearings Ball Bearing, Bronze Bearing, Caged Roller Bearing, Delrin Bearing, Nylon Roller Bearing, Precision Ball Bearing
Leg Spacing
Axle & Nut
Kingpin
Raceway
Plates A38H
Finish
Brakes , , ,
Options , , , , ,
STANDARD PLATE: A38H


6400 Series Specifications & Part Numbers

1 (800) 254-6633
service@algood.com

Algood Casters has manufactured, designed and developed industrial and specialty casters, brakes and wheels since 1969, in capacities from 25 to 65,000 lbs.
